6 left
SIONYX OPSIN Waterproof Color Night Vision Monocular Camera with GPS, Wi-Fi, Bluetooth, and Compass (C013400)
Manufacturer Part:
C013400
Sale price
$ 1,995.00
Regular price
$ 2,495.00
Full Factory SIONYX Warranty
Media & Manuals

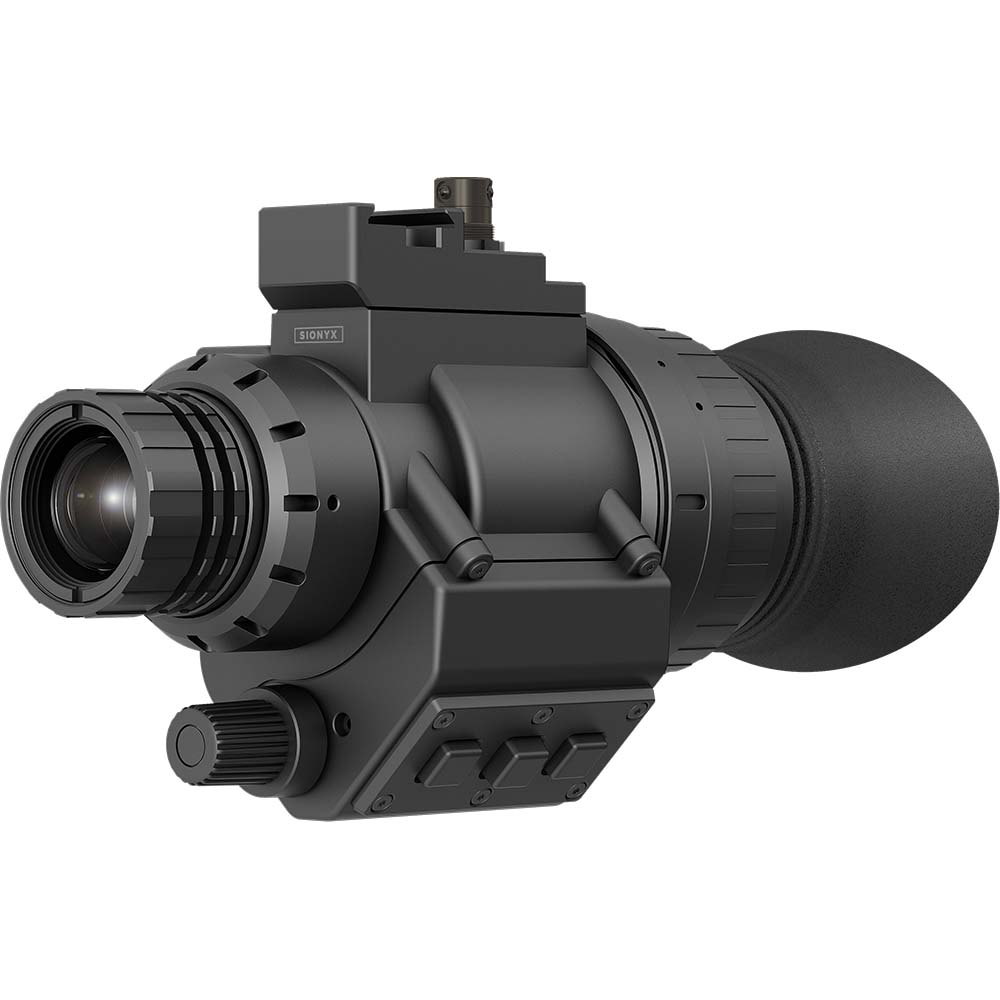

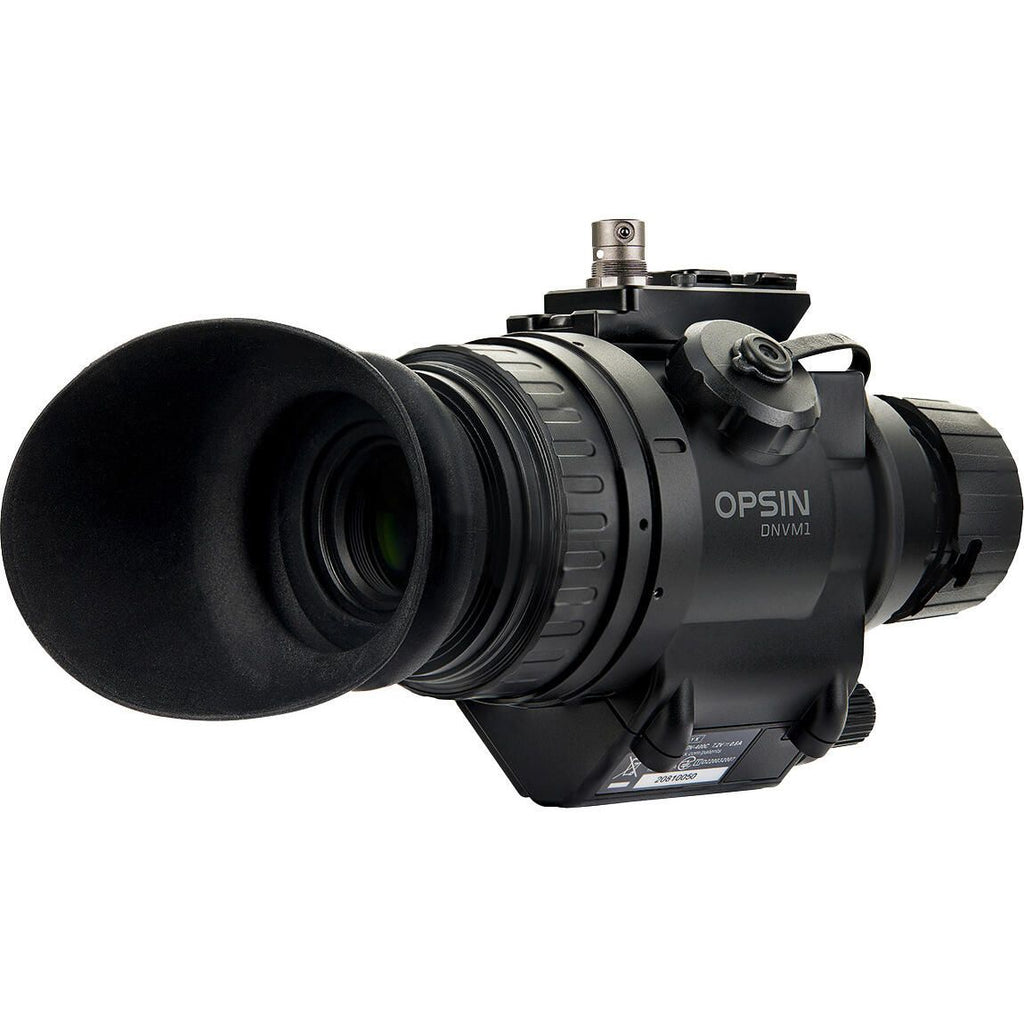

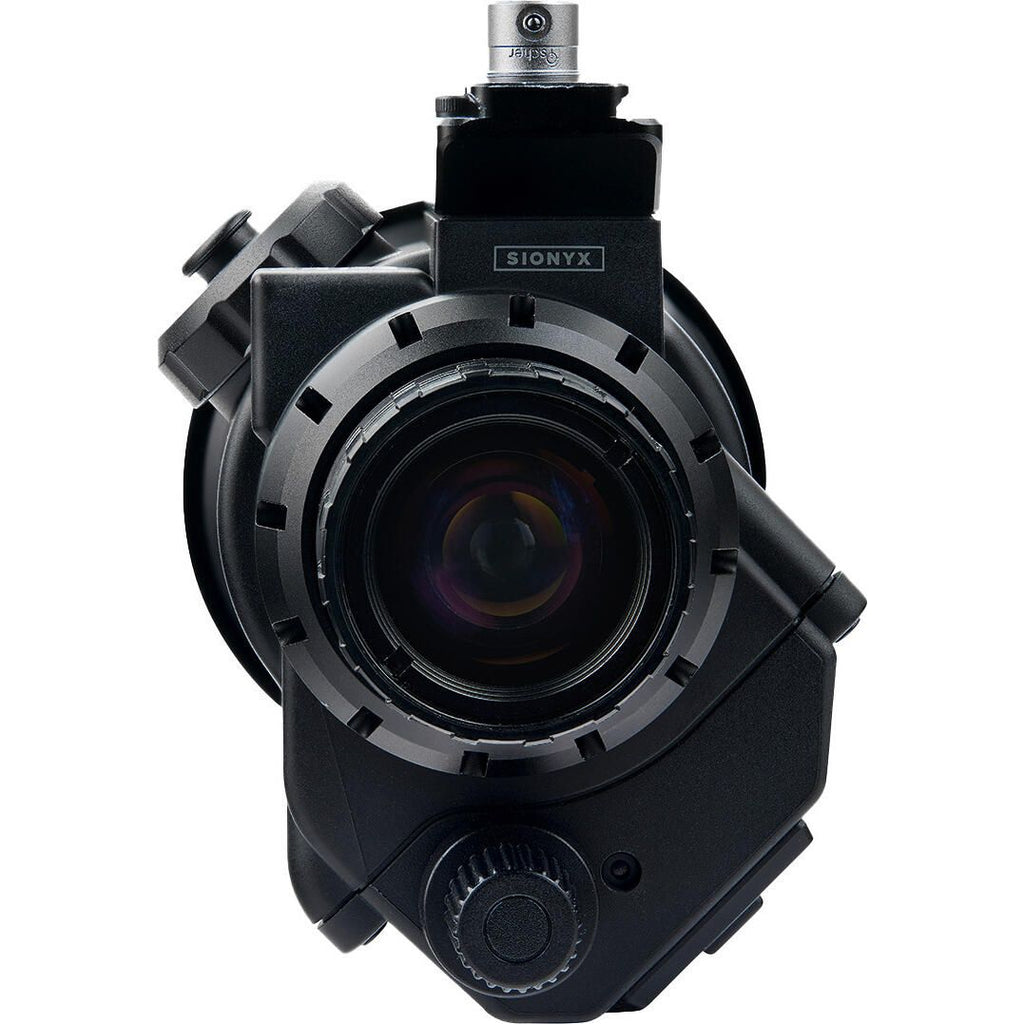

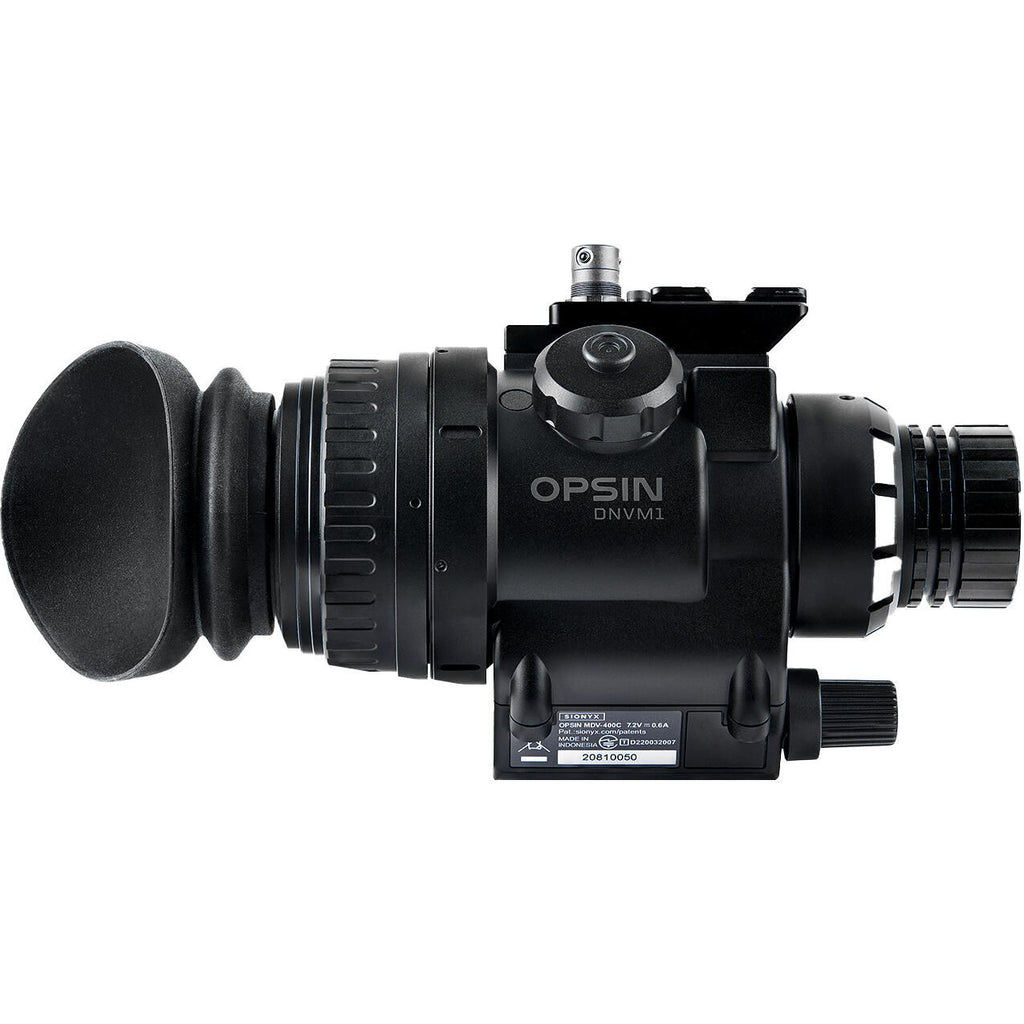

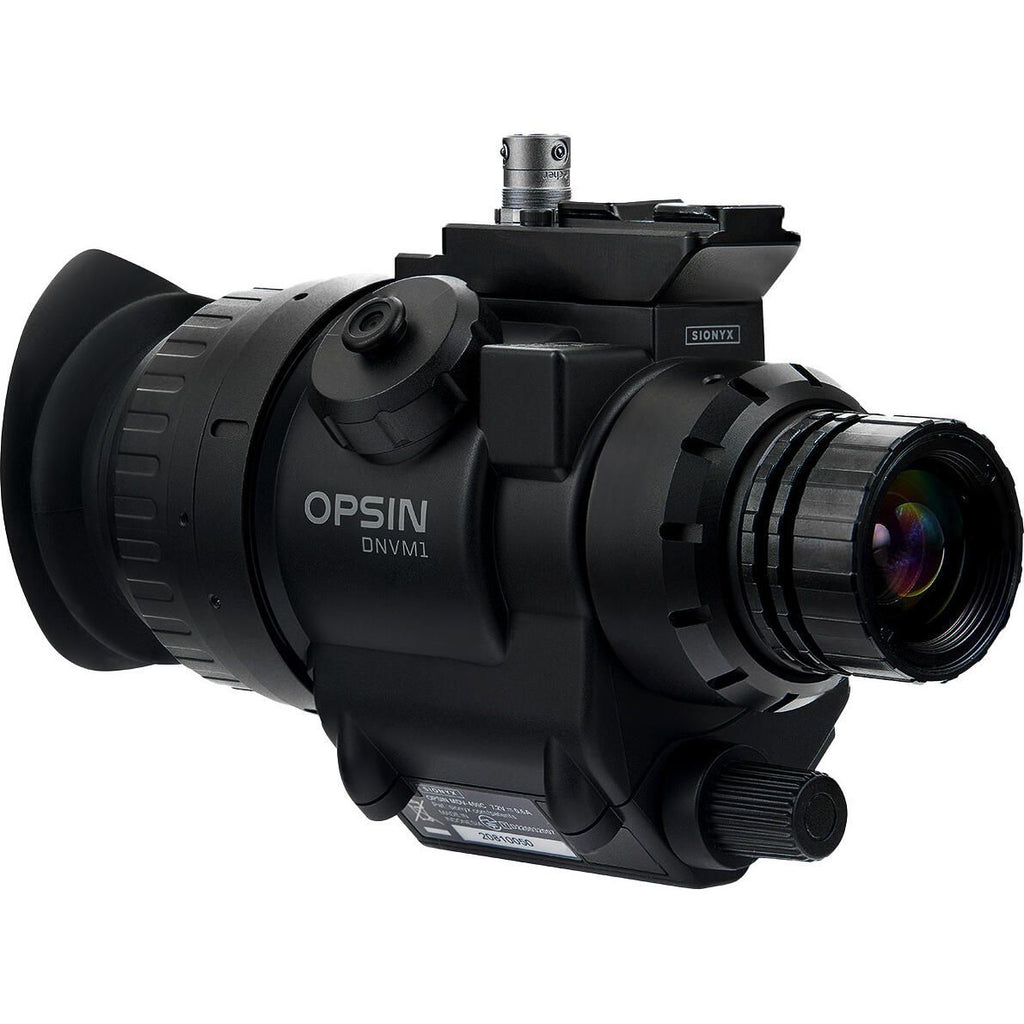

The SIONYX OPSIN is a helmet-mountable digital night vision monocular. Designed for tactical operations, it utilizes the proprietary XQE-1350 Black Silicon CMOS sensor to provide high-definition, full-color imaging in near-total darkness.
OPSIN brings innovation to the traditional night vision device market with the introduction of the most advanced low-light CMOS sensor available. Leveraging SIONYX’s U.S. DOD-approved sensor to deliver unmatched color low light capability, OPSIN provides additional detail, unavailable with traditional night vision systems.
Observe targets of interest in moonless-starlight environments while remaining undetected. Record the situation as it unfolds on the onboard SD card and document geo-location with the onboard GPS module. The external battery pack extends OPSIN’s operation time to a full eight hours while providing helmet counterweight for comfort during a long deployment. OPSIN will change the way professional users operate in the dark.
Key Features and Benefits
- Tactical Precision: Engineered to exceed MIL-STD-810G drop tests, providing a rugged, reliable tool for law enforcement and search and rescue.
- Superior Display: Features an extra-large 1920 x 1080 HD Micro-OLED display with a custom eyepiece providing 25mm eye relief for comfortable, immersive use.
- Integrated Data Suite: Includes a built-in GPS module and digital magnetic compass for real-time navigation and geo-tagging of recorded footage.
- Extended Mission Time: The external battery pack acts as a helmet counterweight and provides up to 8 to 14 hours of operation depending on feature usage.
- Stealth & Safety: Operates in the 400-1200nm spectrum, allowing users to see in the dark without a traditional image intensifier tube that can be damaged by bright light.
Compatibility
The OPSIN is built for versatile tactical integration:
- Mounting: Features a standard dovetail interface compatible with most flip-up helmet mounts and a mini-rail for additional accessories.
- Wireless: Built-in Wi-Fi and Bluetooth for streaming live video to the SIONYX mobile app.
- Storage: Compatible with Micro SD cards up to 256GB for onboard photo and video recording.
- Environment: IP67 rated for water resistance (1m for 30 min) and shock-resistant to 2 meters.
Specifications
-
Camera
- Sensor Type: XQE-1351 (Color)
- Resolution: 1280 x 1024
- Frame Rate: 30 | 60 | 90 Hz
- Horizontal FOV: 45°
- Visible Spectrum: 400-1200nm
- Focus Range: 0.2m to infinity
- Lens: 15mm f/1.3
-
System
- System Latency: < 1 frame
- Display: AMOLED 1920 x 1080
- Diopter Adjustment: -4 to +4
- Eye Relief: 25mm
- Exit Pupil: 7.5mm
- Location System: Built-in GPS
- Orientation System: Digital magnetic compass
- Wireless Communications: WiFi + Bluetooth
- Audio: Built-in microphone
- Power In: 7.2VDC
- Storage Media: Micro SD card
- Storage Capacity: Up to 256GB
-
Environmental
- Ingress Protection: IP67
- Shock & Vibration: 2m
- Operating Temperature: -20°C to +55°C
- Storage Temperature: -40°C to +70°C
-
Camera - Physical
- Weight: 301 g [10.6 oz]
- Dimensions: 120 x 80 x 58 mm [4.7 x 3.1 x 2.3 in]
- Mounting Options: Mini rail
- Material: Glass-reinforced polycarbonate
-
Battery Pack
- Battery Cells: 4 x 18650 Li-ion
- Voltage: 7.2VDC
- Capacity: 5960mAh | 42.9Wh
- Dimensions: 97 x 92 x 49 mm [3.8 x 3.6 x 1.9 in]
- Weight: 298g [10.5oz]
- Operation Time [All system features on]: Up to 10 hrs
- Operation Time [Viewing only]: Up to 14 hrs
Range Performance
- Clear weather at 1/4 moon
- Detect man-sized target: 150 m

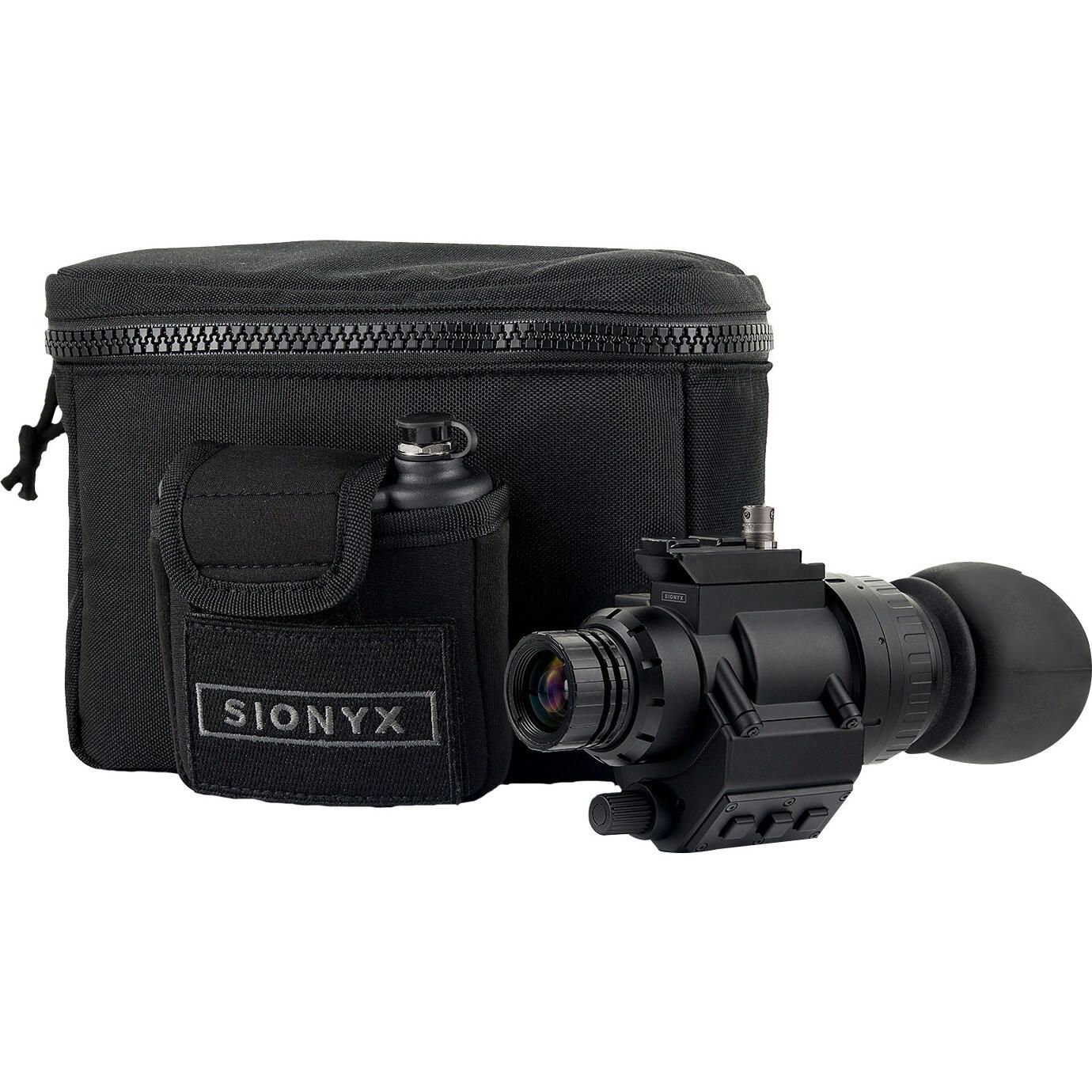

In the Box:
- OPSIN night vision monocular
- Battery pack
- Canvas pouch
- USB charging cable
- Eyecup/lens cap
- 32 GB microSD card
