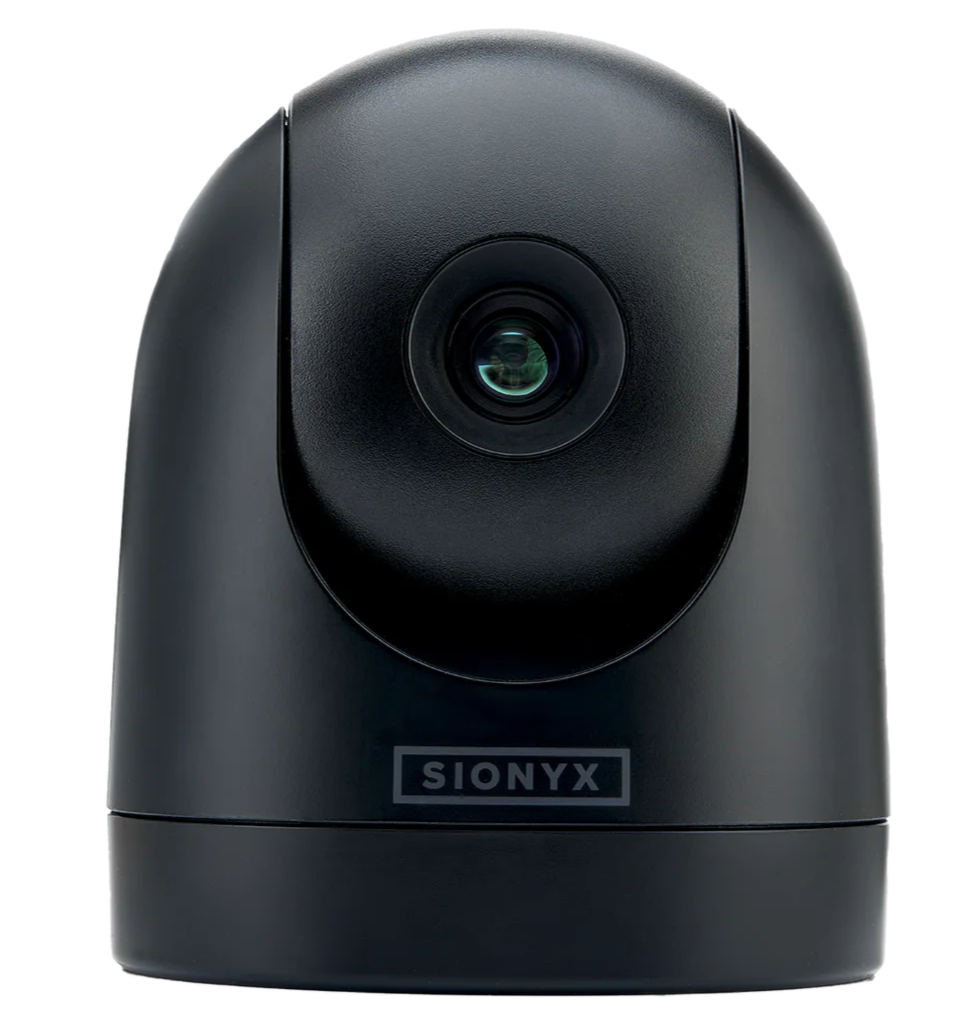

SIONYX Nightwave Ultra Low-Light Marine Night Vision Camera - Black (C014900)

SIONYX Nightwave Ultra Low-Light Marine Night Vision Camera - Black (C014900)

Manufacturer Part: C014900
UPC: 811251020248
2 left
$ 1,895.00 $ 1,995.00
Full Factory SIONYX Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

Media & Manuals

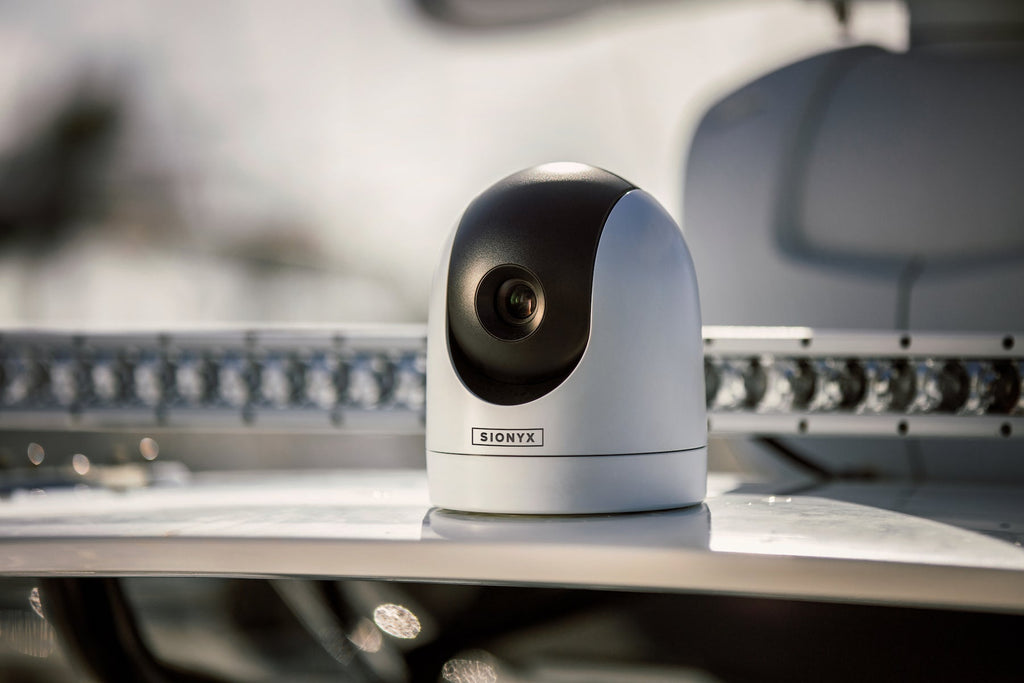

The C014900 is the SIONYX Nightwave Ultra-Low Light Marine Camera (Grey), an analog-based color night vision system designed for maritime navigation in near-total darkness. It allows mariners to detect man-sized objects up to 150 meters away in moonless starlight without requiring infrared illuminators or expensive thermal sensors.

Key Features and Benefits
  • Moonless Starlight Performance: Features a patented Black Silicon BSI CMOS sensor with <1 millilux sensitivity, providing clear color digital night vision when human eyesight is limited.
  • Enhanced Situational Awareness: A stable 44° horizontal field of view allows for spotting unexpected markers, debris, and other vessels during nighttime operations.
  • Rugged Marine Construction: The unit is IP67 rated (water/dust resistant) and dry nitrogen purged to prevent internal lens fogging in harsh environments.

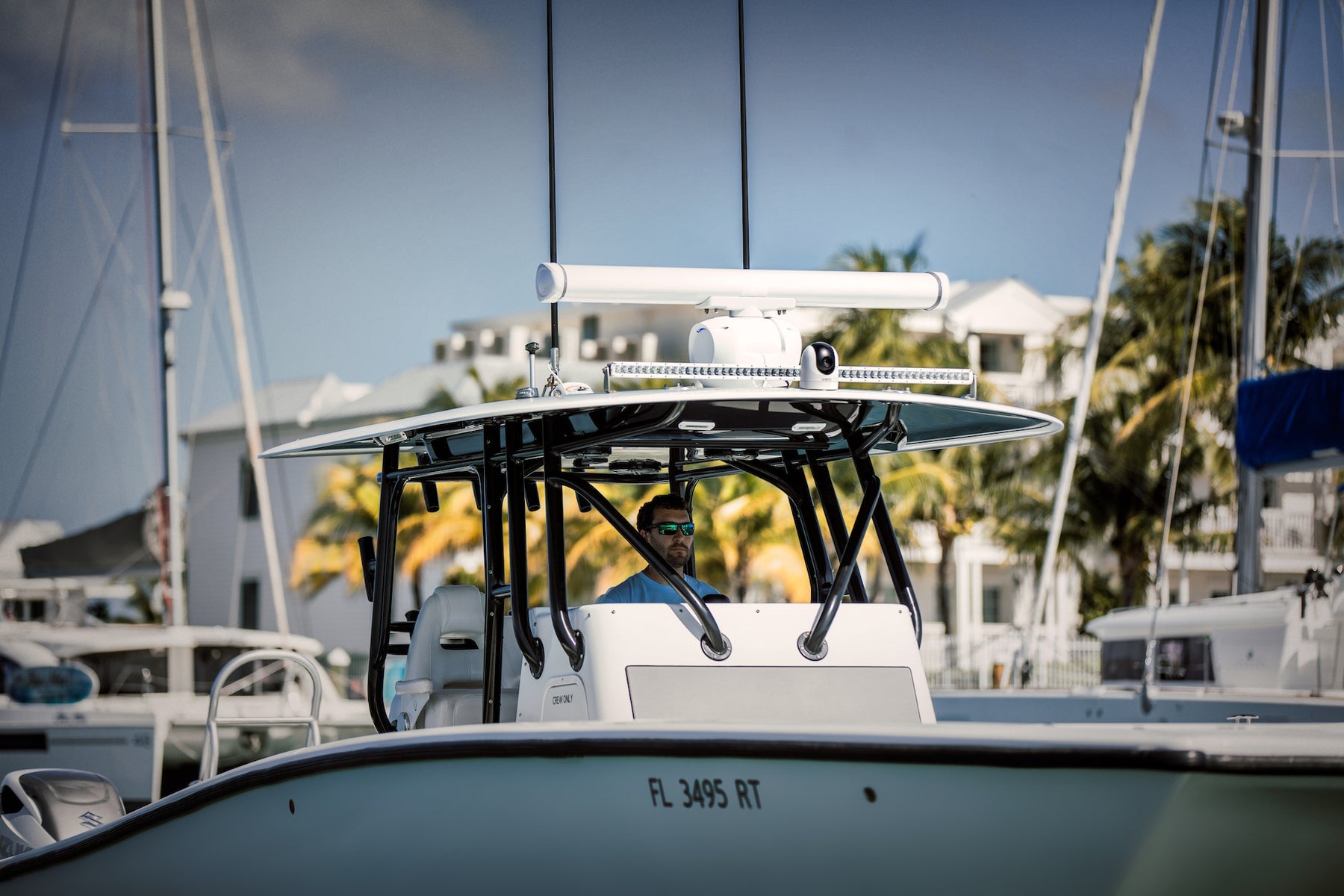

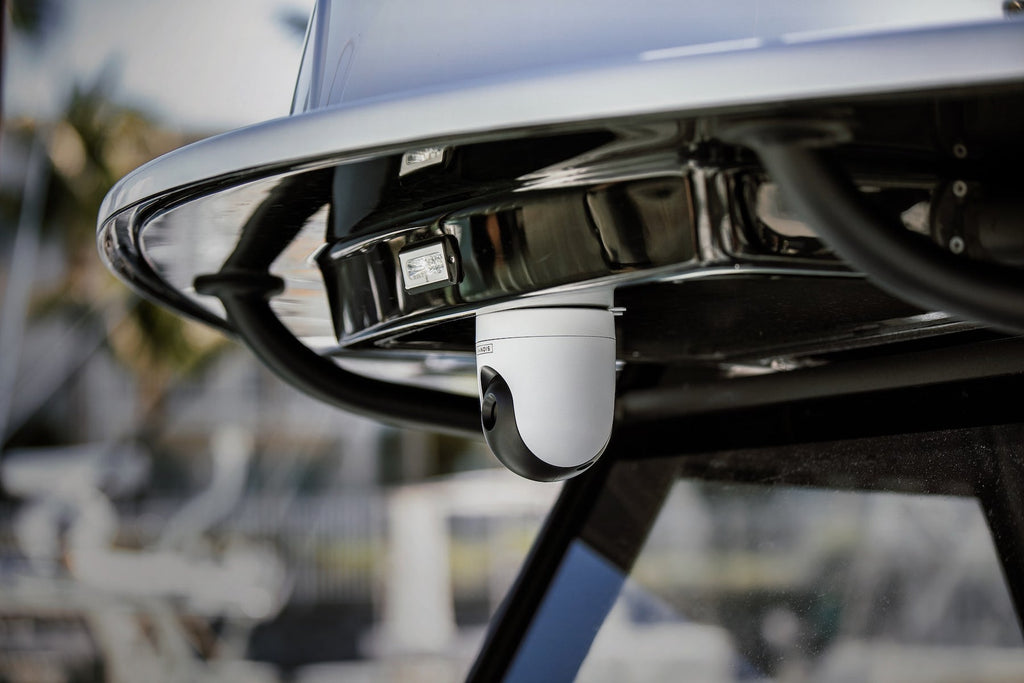

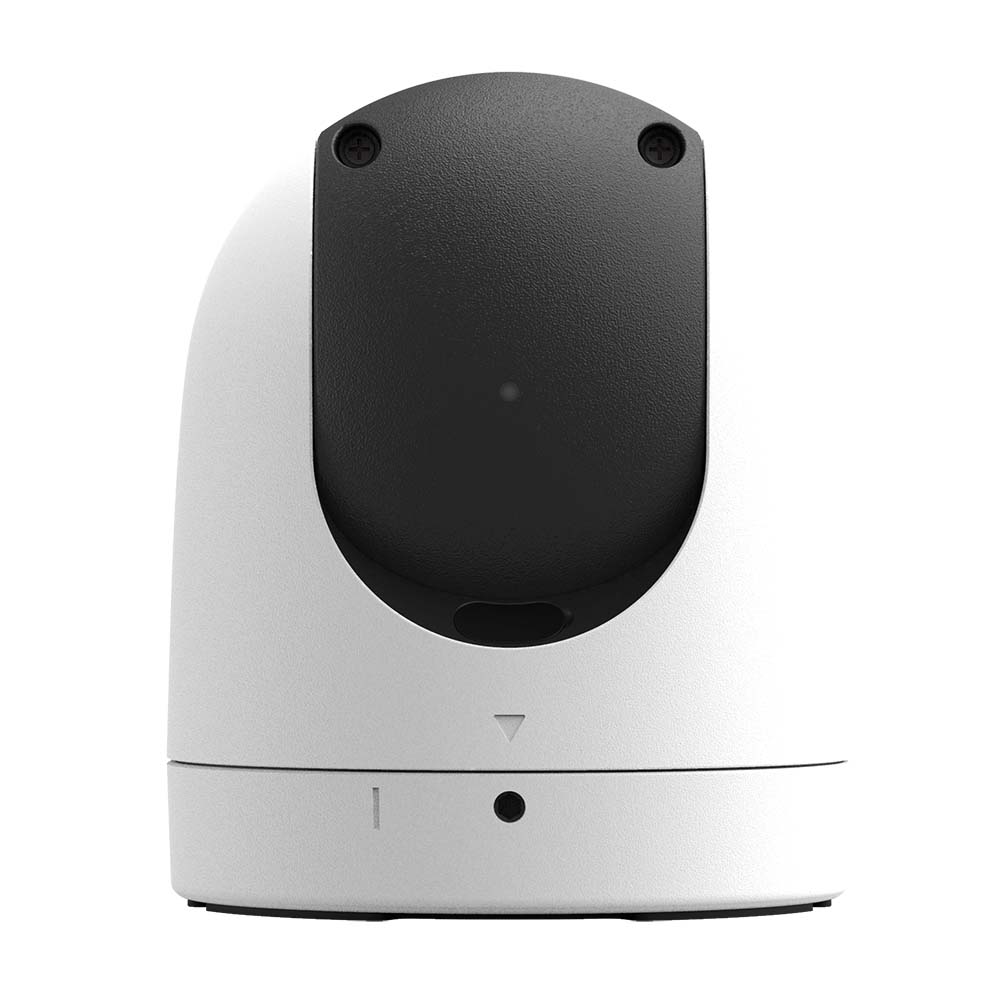

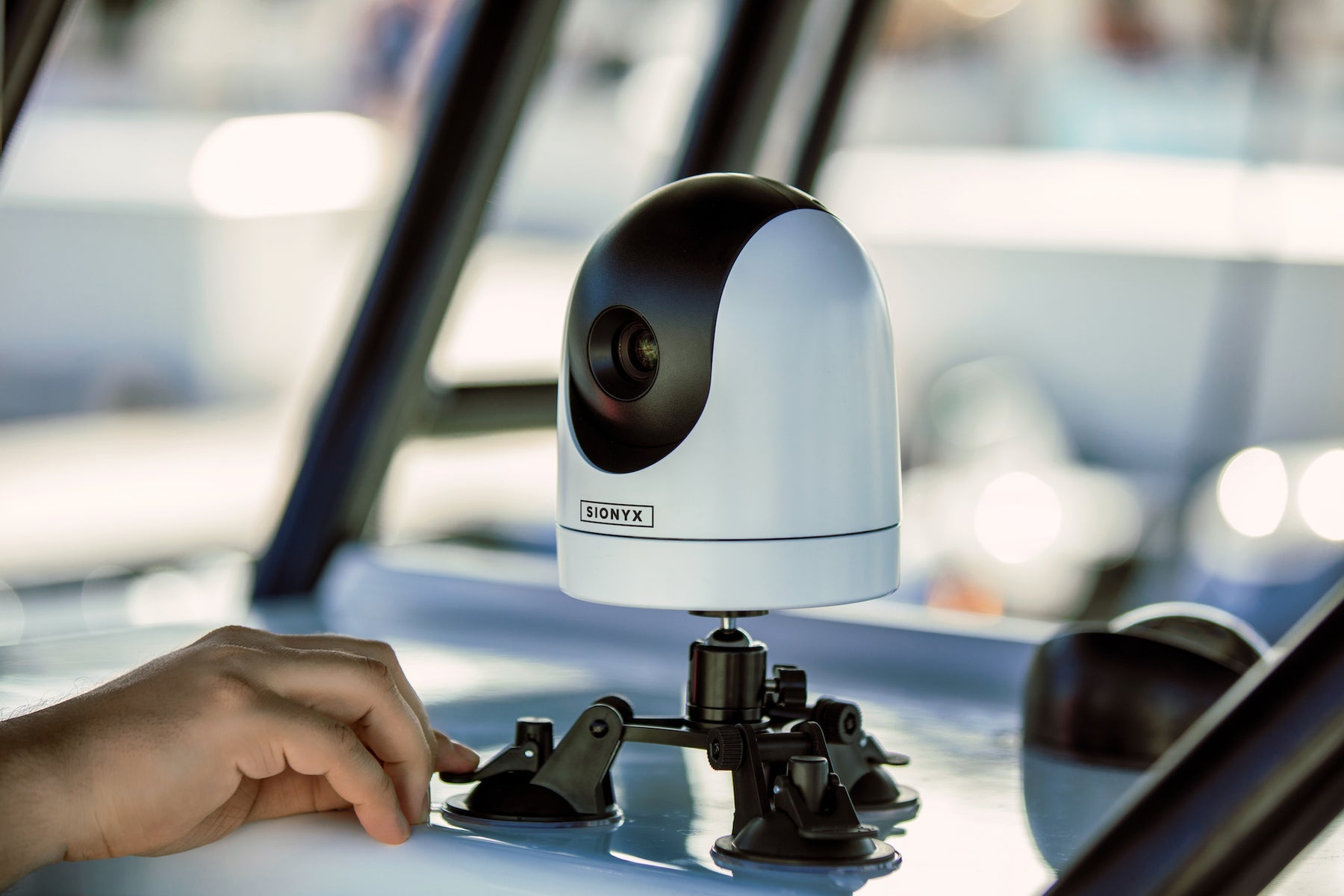

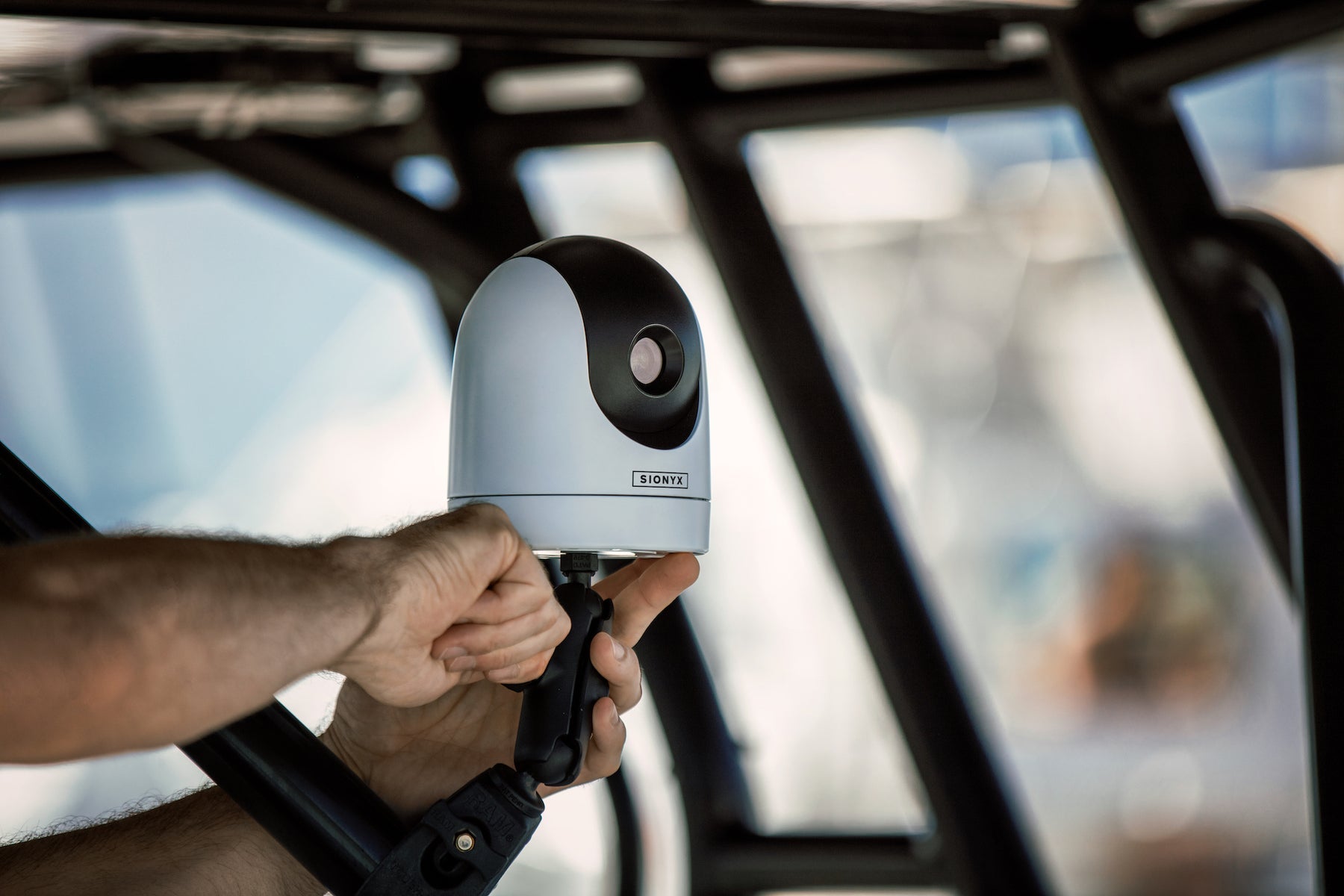

  • Versatile Mounting: Supports permanent "ball up" or "ball down" orientations, as well as temporary mounting via a standard 1/4"-20 center mount

Compatibility

This model is specifically designed for analog video ecosystems

  • MFD Integration: Connects to major brand multifunction displays (Garmin, Raymarine, Furuno, Simrad) using the provided NTSC analog video output (SMA/BNC/RCA). It is ideal for MFDs 16" and smaller.
  • Mobile Connectivity: Built-in Wi-Fi and Bluetooth allow for live video streaming and firmware updates through the SIONYX App on smartphones or tablets.
  • Power Options: Operates on a standard 12V DC (tinned copper wire) or 5V DC (via the included 3m USB-A cable).
  • Note: This is the Analog version; it does not support Power over Ethernet (PoE) like the Nightwave Digital (C018800) model.

Specifications

  • Camera:
    • Sensor Type: XQE1350 BSI CMOS
    • Resolution: 1280 X 1024
    • Frame Rate: 30 hz
    • Horizontal Field of View: 44 deg
    • Visible Spectrum: 400 - 1200 nm
    • Focus Range: 10M to infinity
    • Lens: 16 mm F/1.4
  • System:
    • Video Out: Analog Video (NTSC)
    • Analog Video Connection: SMA / BNC/ RCA
    • Wireless Communications: WiFi + Bluetooth
    • Power In: 12V DC / 5V DC (USB)
    • Power Connection: Tinned Copper Wire / USB (with provided optional cable)
  • Environmental:
    • Ingress Protection: IP67 Water / Dust - Resistant
    • Shock & Vibration: IEC60945 (V15G | H:9G) | IK08
    • Operating Temperature: -20°C To +50°C
    • Storage Temperature: -20°C To +80°C
  • Range Performance (1/4 Moon):
    • Detect Man-Sized Object: 150M

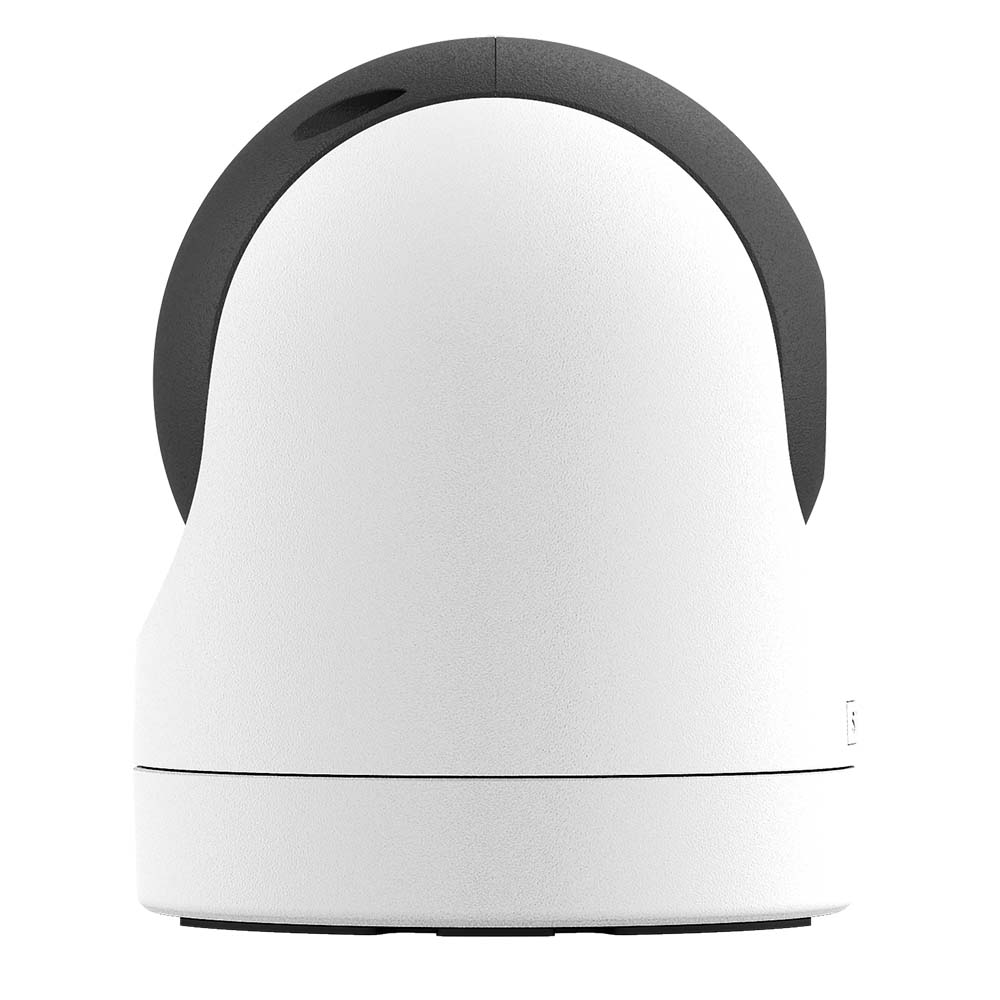

  • Physical:
    • Weight: 870 g (1.9 lbs)
    • Dimensions: 127 x 127 x 152 mm (5" x 5" x 6")
    • Material: UV-Resistant Polycarbonate
