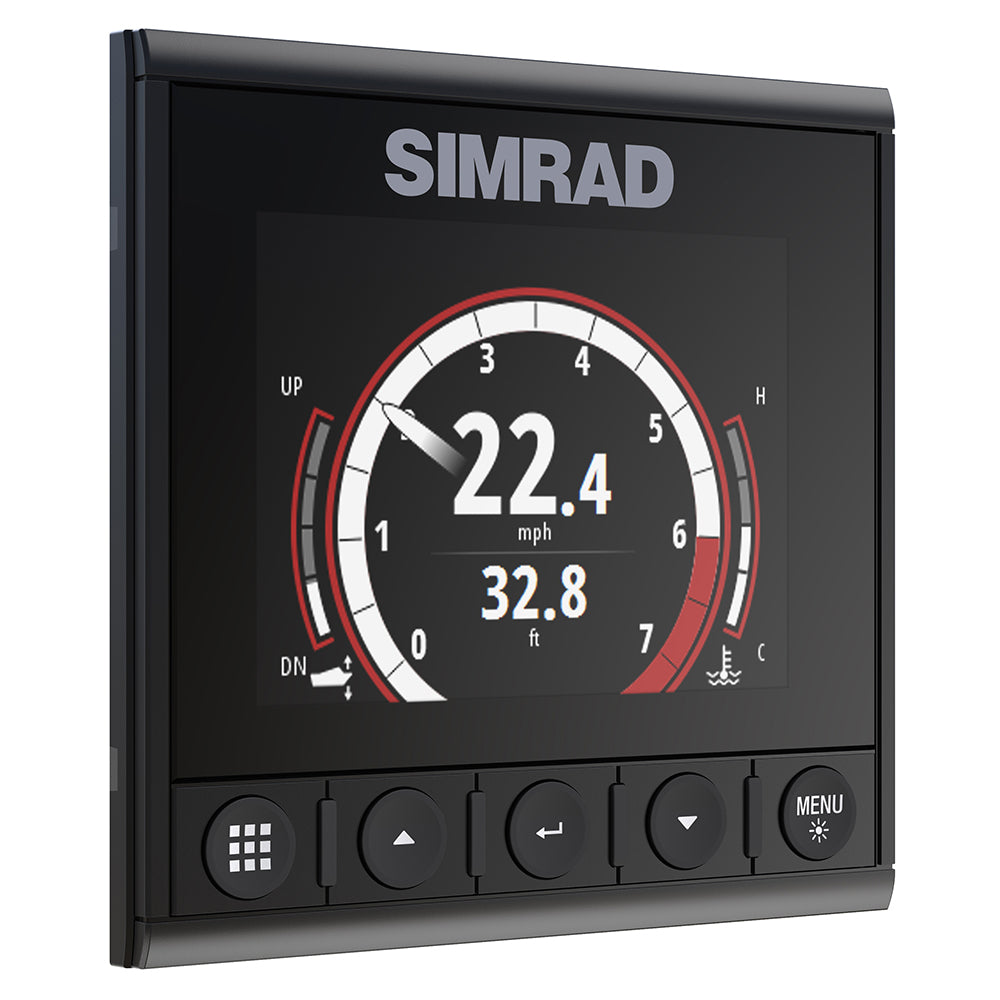

Simrad IS42 4.1" Digital Color Smart Instrument Digital Display (000-13285-001)

The Simrad IS42 Digital Color Autopilot Instrument Display is a smart multi-purpose instrument that functions as a standalone instrument display and autopilot controller aboard smaller vessels.

Features:

• View wind, speed, depth, engine data, autopilot status, AIS data and more at a glance, or add the optional OP12 keypad (Sold Separately) to take full control of your Simrad autopilot system
• The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems (Sold Separately), or can function as a standalone instrument display and autopilot controller aboard smaller vessels
• Optically bonded 4.1-inch color display
• Ultra-wide 170-degree viewing angle
• Multi-purpose digital instrument
• Display wind, speed, depth, engine data, autopilot status and more

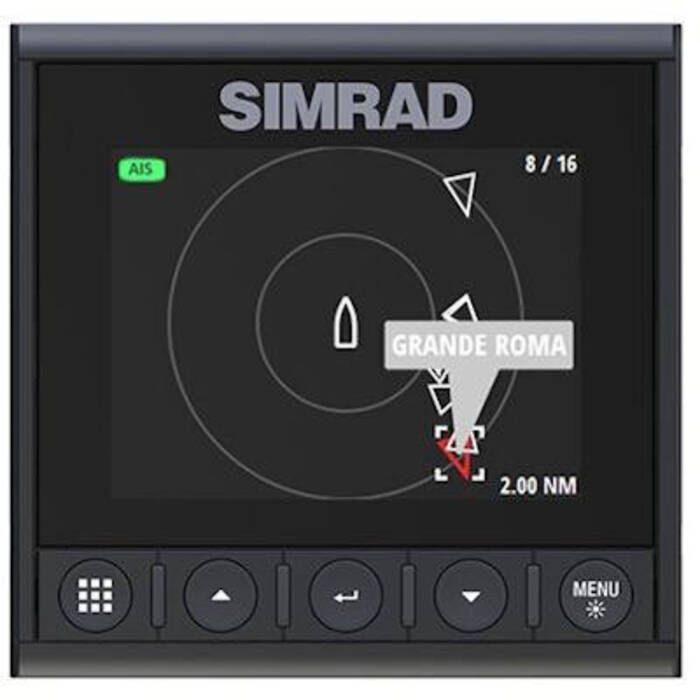

• Advanced AIS functionality, including the ability to initiate radio calls to AIS-equipped vessels (Additional hardware Sold Separately)
• Intuitive operation with waterproof silicon keys
• Easy installation with front-mount option and just one cable (Sold Separately)
• Applications: Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
• Low-profile glass helm design
• Low power consumption
• Certified NMEA 2000® connectivity

Specifications:

• Display Resolution 320 x 240 (H x W)
• Display Type: LED-backlit optically bonded full-color transflective TFT-LCD
• Display Size 104 mm / 4.1 in
• Display Viewing Angle: 170 degrees
• Operating Temperature -25° C to 65° C / -13° F to 149° F
• Operating Temperature Stored -40° C to 85° C / -40° F to 185° F
• Water Resistance IPX7
• Width: 118 mm / 4.64 in
• Depth: 36.5 mm / 1.43 in
• Height: 115 mm / 4.52 in
• Power Consumption 2.2 W (maximum)
• Power Supply (Supply Voltage) NMEA 2000®
• NMEA 2000 Load Equivalency Number 4 network loads
