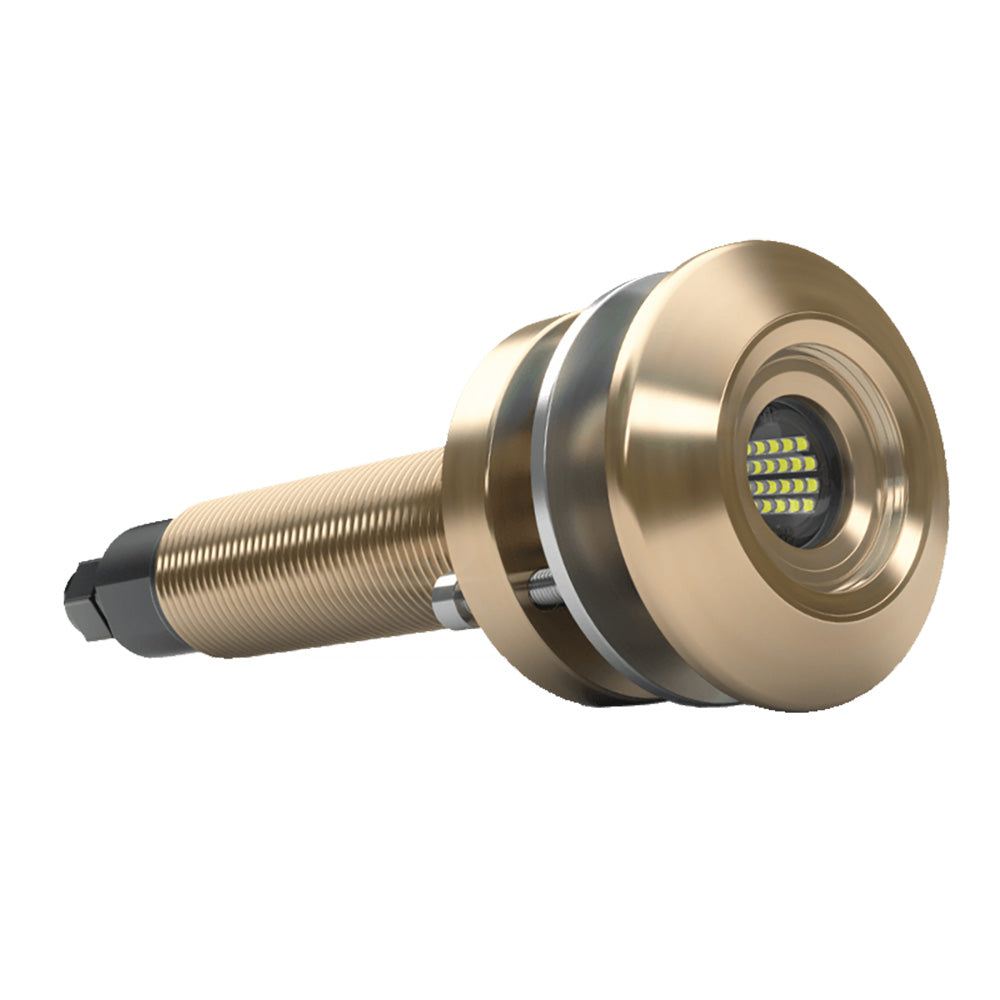

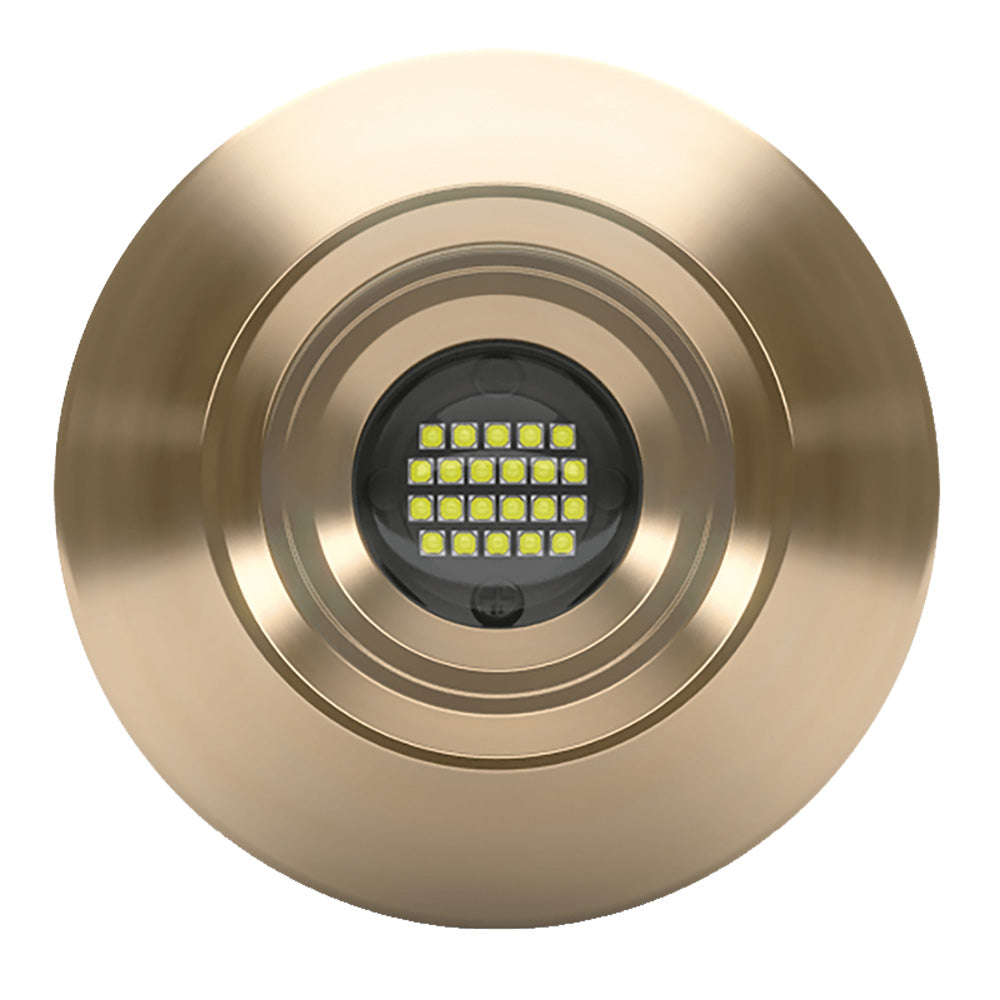

Lumishore TIX204 ORA 5,300 Lumen White 60° Interchangeable Thru-Hull Underwater LED Light (60-0553, 010-04524-00)

The Lumishore TIX204 ORA is a white 5,300-lumen underwater light built around an interchangeable thru-hull mounting arrangement. Its flush-fit design allows access to the light assembly through the compatible thru-hull installation, making it a practical choice for vessels where a low-profile exterior and serviceability matter.

Key Features & Benefits

• Low-Profile White Light: Delivers a dedicated white underwater lighting effect through the hull.
• Interchangeable Thru-Hull Design: Supports the specified serviceable light-module installation format.
• 5,300 Lumen Output: Provides published fixture light output for planning illumination coverage.

Technical Specifications

• Lighting configuration: White
• Mounting design: Interchangeable Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 5,300 lumens
• Beam angle: 60°
• Electrical operating range: 10.5–31V DC
• Nominal electrical system: 12/24V
• Fixture construction: Marine-grade bronze housing
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• Uses compatible standard switched DC power; verify hull construction before mounting.
• Supports installation on suitable thru-hull locations subject to hull material, depth and access requirements; the internal light engine is serviceable from inside the boat.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.
