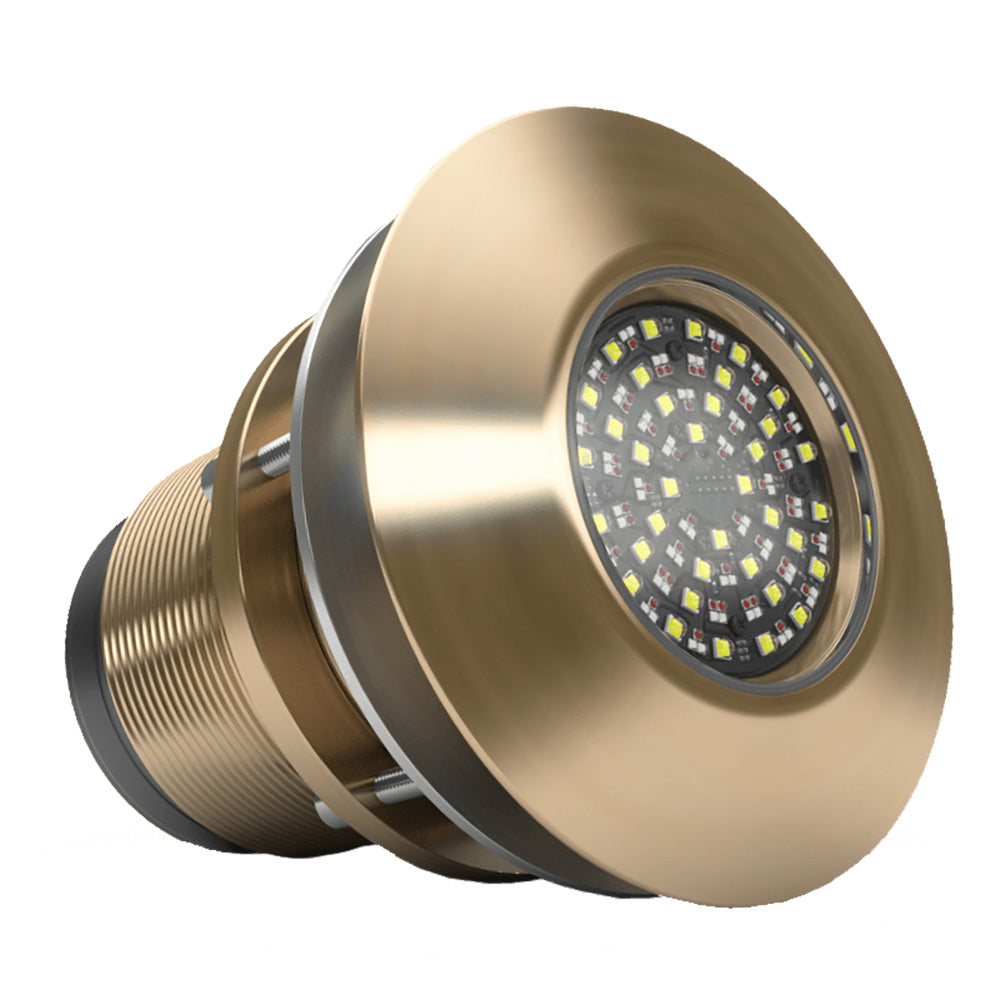

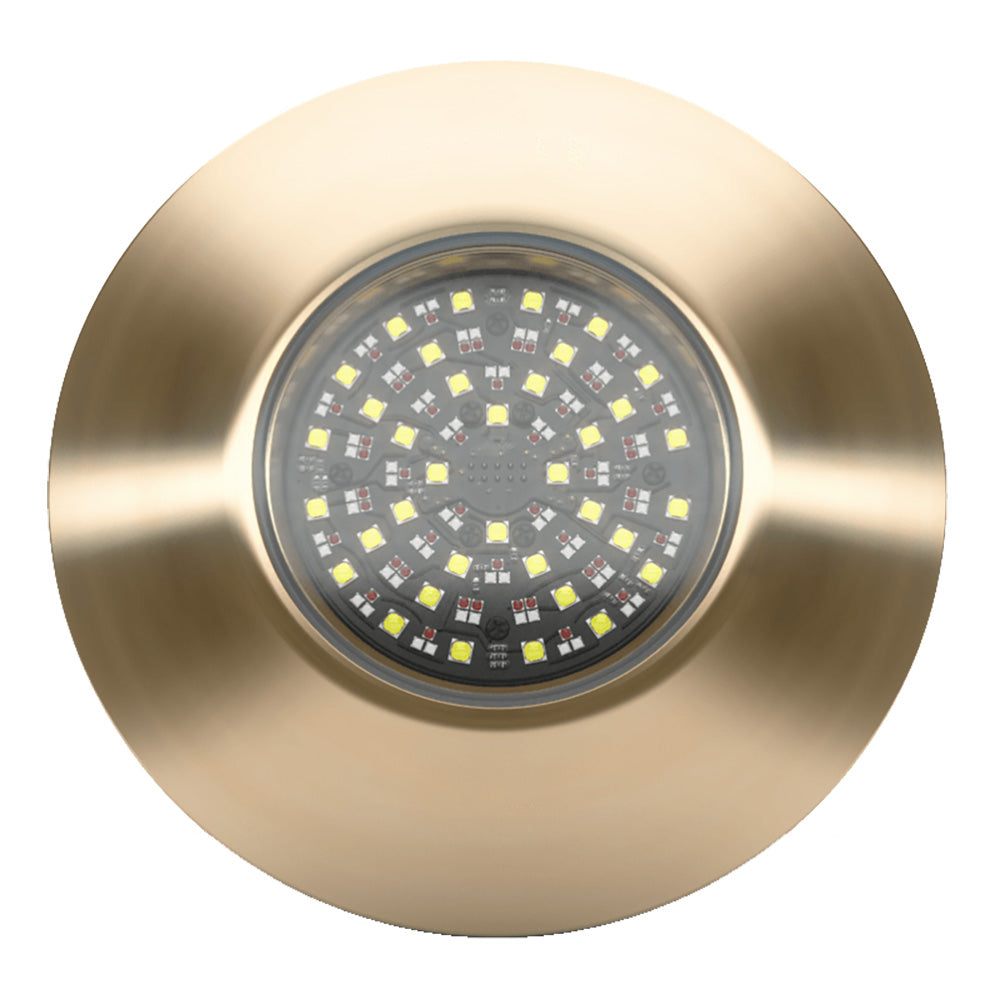

Lumishore TIX1604 EOS 17,500 Lumen RGBW 110° Interchangeable Thru-Hull Underwater LED Light (60-0562, 010-04533-00)

The Lumishore TIX1604 EOS is a 17,500-lumen RGBW underwater light designed for interchangeable thru-hull installation. Its high-output full-color capability supports coordinated lighting across larger vessels when connected to the appropriate EOS lighting controls, while the thru-hull system provides a distinct mounting and service arrangement.

Key Features & Benefits

• 17,500 Lumen RGBW Output: Provides powerful full-color illumination for demanding underwater-lighting layouts.
• Interchangeable Module: Uses the dedicated TIX thru-hull approach for access and servicing.
• Coordinated EOS Operation: Integrates with compatible EOS system control equipment.

Technical Specifications

• Lighting configuration: RGBW
• Mounting design: Interchangeable Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 17,500 lumens
• Beam angle: 110°
• Electrical operating range: 20–31V DC
• Nominal electrical system: 24V
• Fixture construction: Marine bronze housing
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• Requires compatible EOS full-color control components.
• Supports installation on suitable thru-hull locations subject to hull material, depth and access requirements; the internal light engine is serviceable from inside the boat.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.
