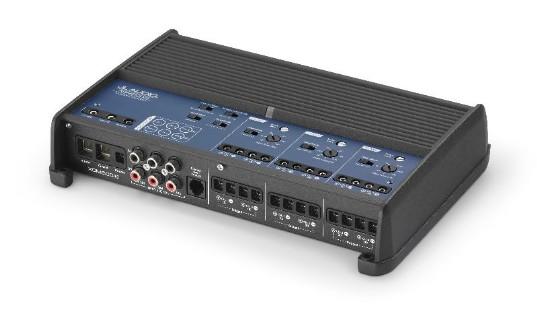

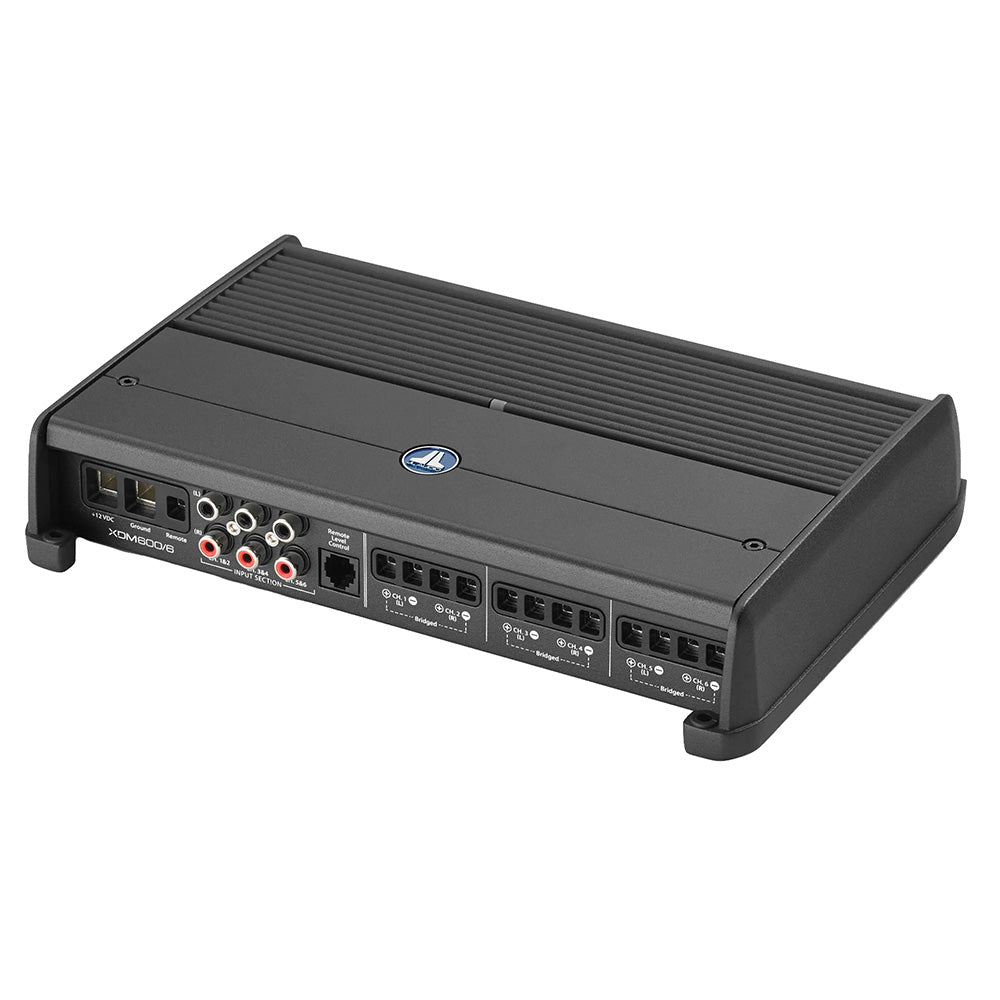

JL Audio XDM600/6 600W RMS 6-Channel Full-Range Class D Marine Amplifier (010-03117-00)

Power up to six marine speakers or configure bridged channels for a mixed speaker and subwoofer system with the versatile JL Audio XDM600/6. Efficient NexD Class D circuitry produces robust full-range sound while keeping the amplifier compact.

Marine-oriented construction and selectable input filtering help reduce electrical noise in boats, while independent crossover and gain controls support flexible system tuning.

Key Features

• 600W RMS total at 2 ohms, rated as 100W RMS x 6
• 75W RMS x 6 at 4 ohms
• 200W RMS x 3 bridged at 4 ohms
• Class D NexD amplifier technology
• Variable high-pass and low-pass filters and differential-balanced inputs
• Selectable input filtering and signal-sensing turn-on support

Specifications

• Amplifier Type: 6-channel full-range Class D
• RMS Output @ 4 ohms: 75W x 6 (14.4V)
• RMS Output @ 2 ohms: 100W x 6 (14.4V)
• Bridged Output @ 4 ohms: 200W x 3 (14.4V)
• Frequency Response: 12Hz–22kHz (+0/-1dB)
• Crossovers: Variable 50–500Hz, 12dB/octave
• Recommended External Fuse: 50A
• Recommended Main Power Wire: 4 AWG
• Dimensions: 10.23" W x 7.09" D x 2.05" H
• Weight: 5.8 lbs

Compatibility

• Accepts compatible full-range marine speakers with appropriate impedance and power handling. Bridged channel pairs require a suitable 4-ohm minimum load.
• Compatible with conventional RCA inputs and speaker-level sources when an appropriate adapter is used; optional JL Audio wired remote level control is sold separately.

Installation Notes

An external 50A fuse, power/ground wiring and speaker wiring are required and are not supplied with the amplifier. Use correct bridging and impedance assignments.

What's in the Box

• XDM600/6 six-channel amplifier
• Self-adhesive JL Audio badge
• 2.5mm Allen wrench
• Owner’s manual
• Warranty information
