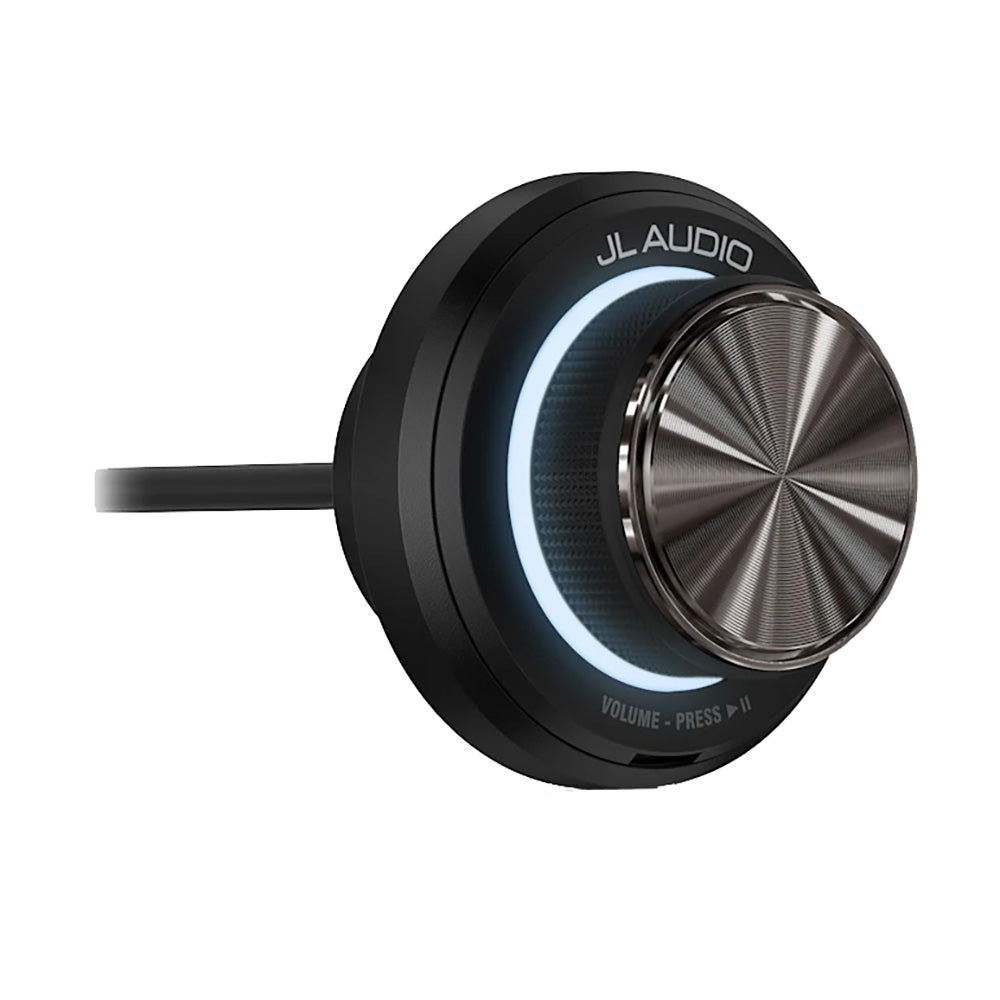

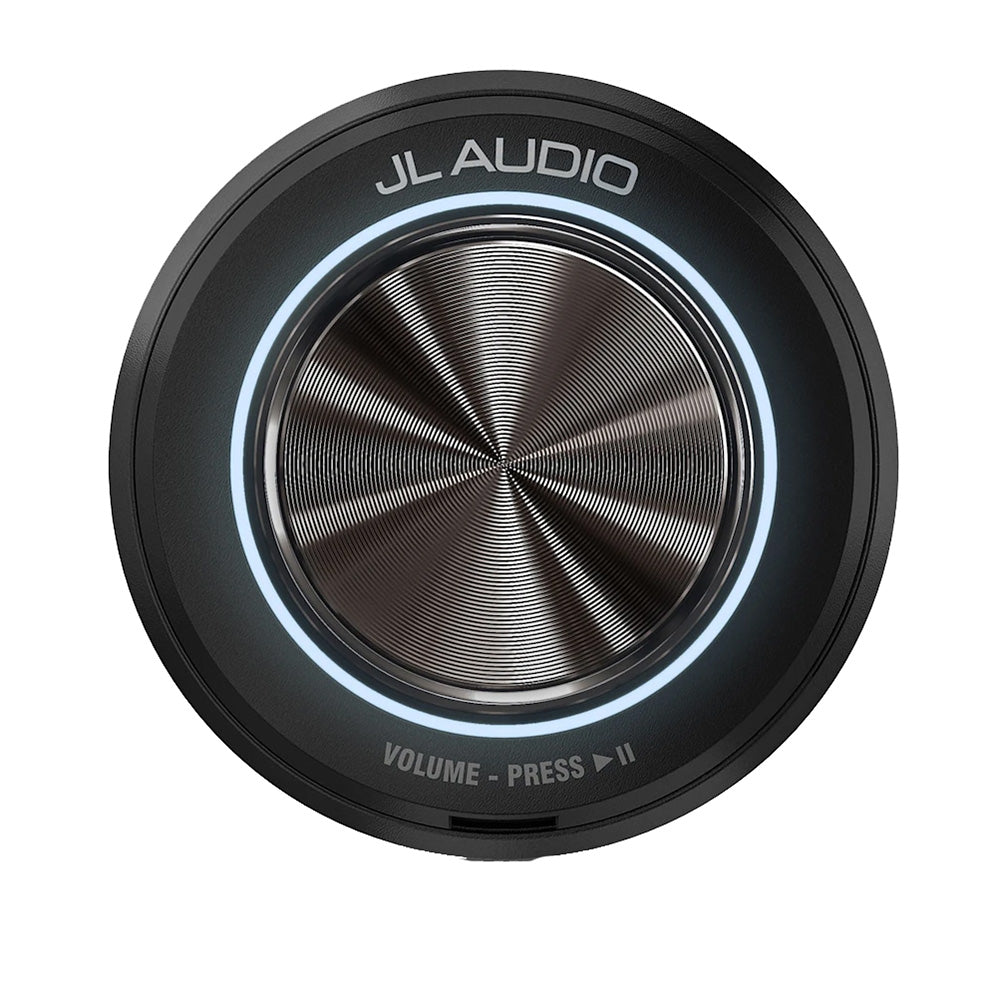

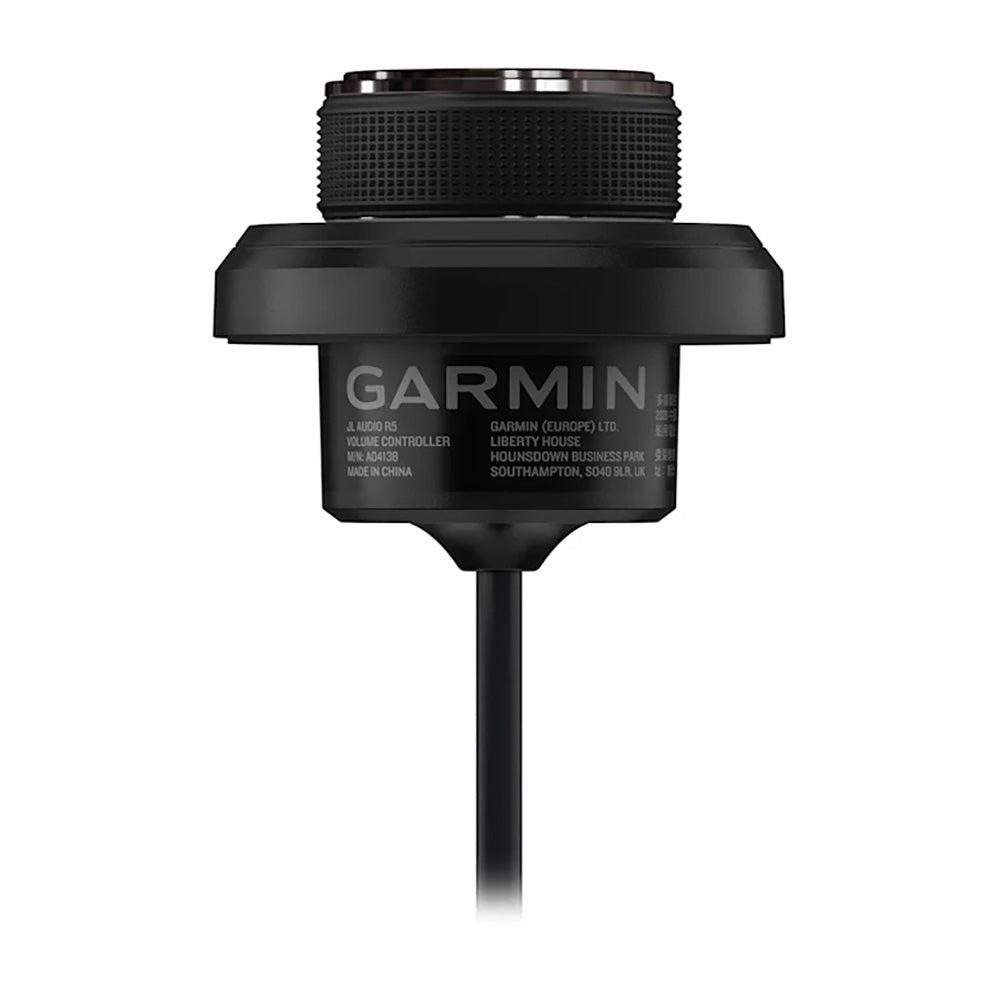

JL Audio R5 NMEA 2000 Single-Stereo IPX7 Marine Volume Controller with Play/Pause (010-04790-00)

Add a convenient secondary volume control point with the JL Audio R5. This compact front-mounted rotary controller uses a single large knob to adjust all audio zones of a compatible JL Audio marine stereo and supports press-to-play/pause operation.

Key Features

• Large single-knob control for simple operation underway
• NMEA 2000 network connectivity
• Adjusts all audio zones of a single compatible head unit
• Push-to-play/pause control
• Compact 1.5-inch mounting cutout
• IPX7-rated control surface

Technical Specifications

• Power Input: 10.8–16V DC
• Maximum Current Draw: 110mA
• Network Port: 1 NMEA 2000 Micro-C
• NMEA 2000 LEN: 2 (100mA)
• Water Resistance: IPX7 when installed correctly
• Dimensions: 2.35" W x 2.35" H x 2.04" D
• Mounting Hole: 1.5" diameter
• Operating Temperature: 32°F–122°F (0°C–50°C)
• Compass-Safe Distance: 3.94" (100mm)

Compatibility

Designed for compatible JL Audio A60 and A60-H marine head units through a properly configured NMEA 2000 network. Not a universal analog potentiometer or RCA volume control.

What's in the Box

• JL Audio R5 single-stereo volume controller
• NMEA 2000 T-connector
• Two screws
• Documentation
