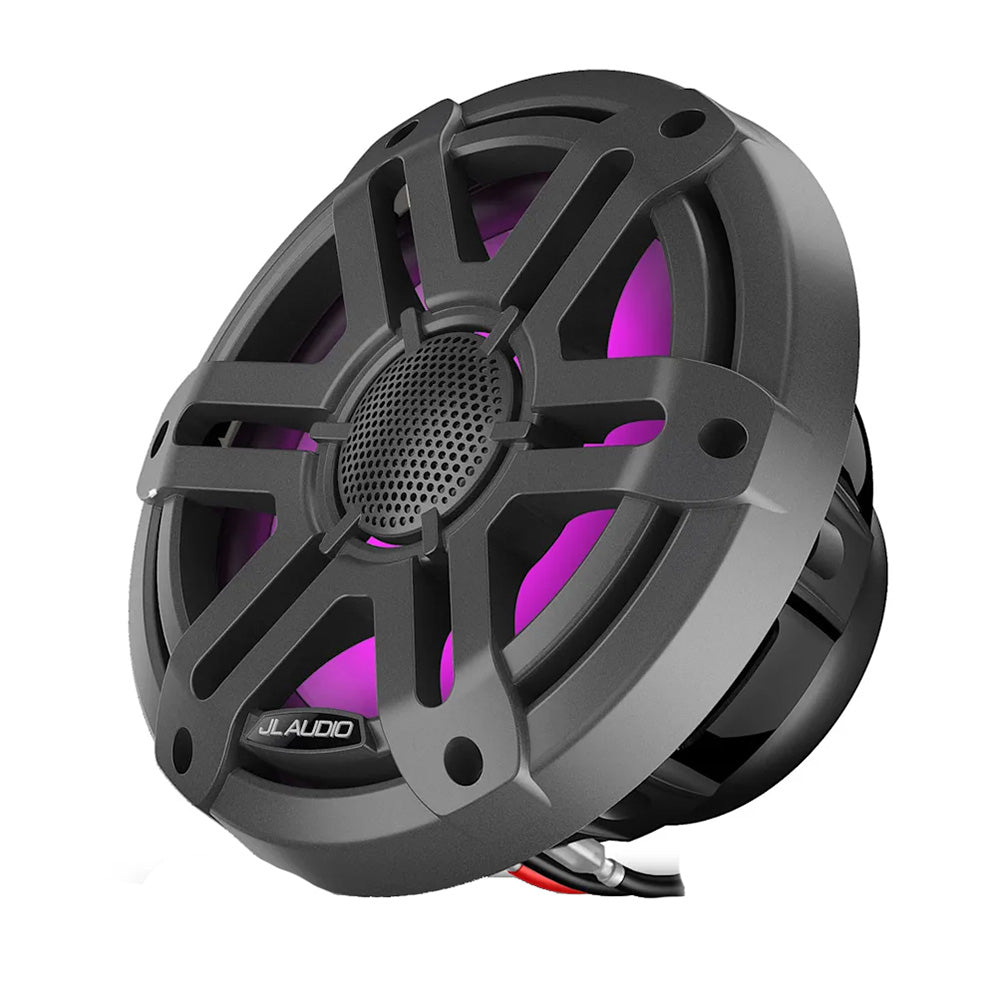

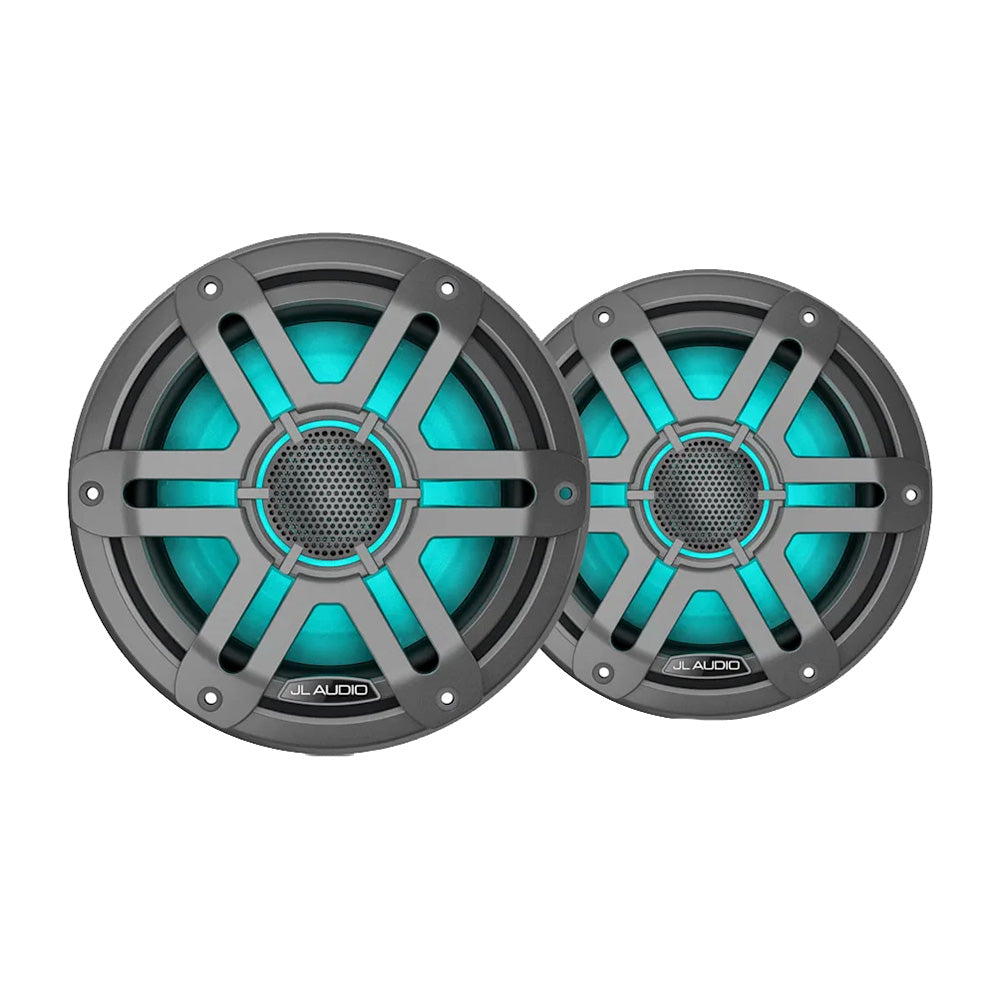

JL Audio M200 7.7" 60W RMS Coaxial Marine Speakers with RGB LED Lighting, Gray Sport Grilles, Pair (010-04757-01)

The JL Audio M200 7.7-inch coaxial marine speakers combine smooth silk-dome treble with a durable polypropylene woofer for clear listening in cockpits and other open-air boating areas. This gray Sport Grille configuration adds integrated RGB lighting to personalize the installation.

Key Features

• 7.7" marine coaxial speakers, sold as a pair
• 60W RMS continuous power handling per speaker
• Silk-dome tweeter for detailed high frequencies
• IPX6 marine environmental protection
• Replaceable gray Sport Grilles
• Integrated RGB LED illumination; optional controller required for advanced effects

Technical Specifications

• Speaker Size: 7.7"
• RMS Power Handling: 60W RMS per speaker
• Nominal Impedance: 4 ohms
• Sensitivity: 88dB (1W/1m)
• Frequency Response: 45Hz–20kHz (±3dB)
• Recommended Amplifier Power: 40–120W per channel
• Tweeter: 1" silk dome
• Cone: Injection-molded, mica-filled polypropylene
• Mounting Hole: 6.25"
• Mounting Depth: 3.07"
• Water Resistance: IPX6
• Grille: Gray Sport
• Quantity: Pair
• Lighting: RGB LED
• Lighting Supply: 10–14.4V DC
• Maximum Lighting Current: 140mA at 14.4V DC

Compatibility

Compatible with marine stereos and amplifiers able to drive 4-ohm loudspeakers within the recommended power range. Grille replacements must match the M200 speaker size and revision.

Installation Notes

Verify cutout diameter, mounting depth, waterproof terminations, and speaker-cable routing before installation. Use an appropriate RGB lighting supply/controller; lighting connections are separate from audio amplification.

What’s in the Box

• Two M200 coaxial speakers with gray Sport Grilles
• Two water-resistant 6-pin connectors
• Mounting screws
• Documentation
