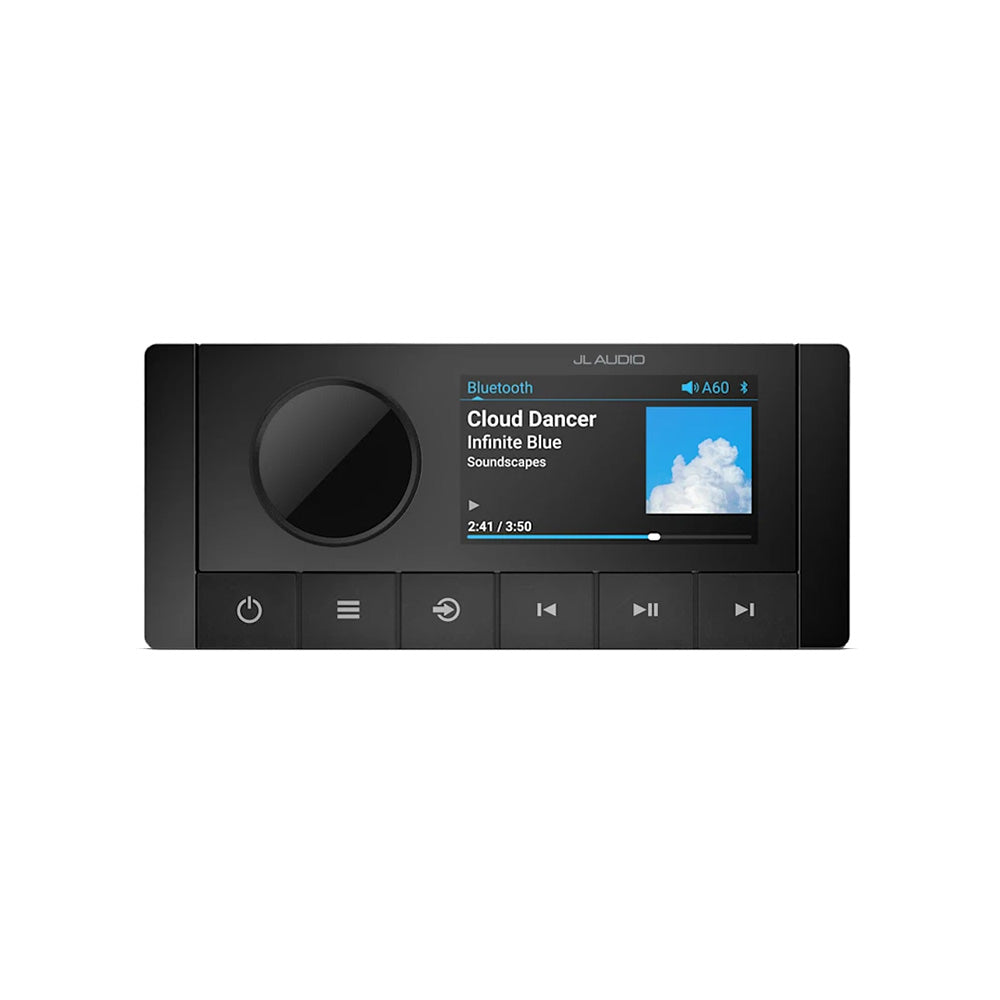

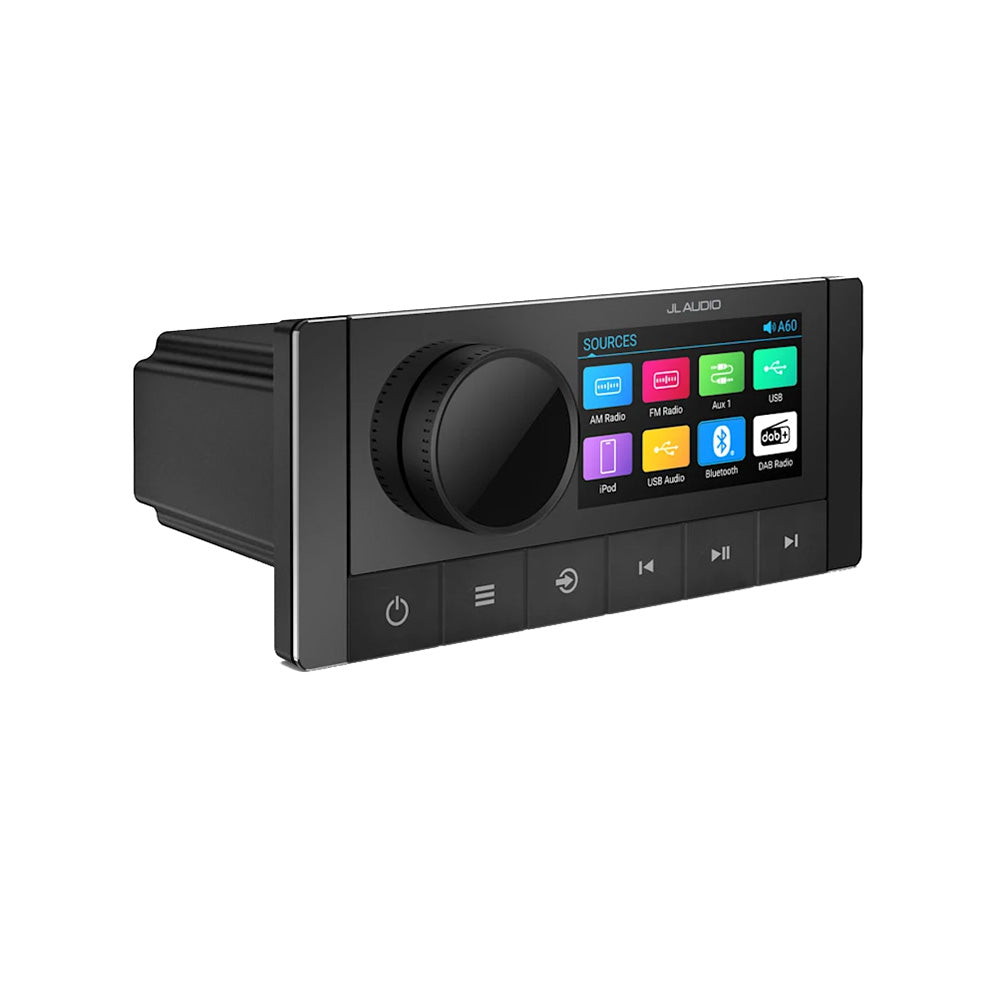

JL Audio A60 4-Zone Marine Stereo with Bluetooth 6.1, DSP, 2.95" Color Display and NMEA 2000 (010-02983-00)

The JL Audio A60 puts four-zone marine audio control at the helm in a compact source unit with a high-resolution color display. Built-in digital signal processing, Bluetooth 6.1 audio streaming, and NMEA 2000 integration give boaters convenient source selection and flexible control of speakers and subwoofers.

Key Features

• 2.95" high-resolution color display
• Bluetooth 6.1 LE audio streaming
• Four audio zones with dedicated subwoofer outputs
• Built-in DSP for speaker/subwoofer optimization
• NMEA 2000 connectivity for compatible chartplotter integration
• Integrated four-channel amplifier and multi-source playback
• Marine water resistance at front and rear

Detailed Technical Specifications

• Display: 2.95" color LCD
• Audio Zones: 4, each with subwoofer preamp output
• Speaker Power: 17W RMS x 4 @ 4 ohms
• Power Supply: 10.8–16V DC
• NMEA 2000: 1 port, LEN 1 (50mA)
• Sources: Bluetooth 6.1, AM/FM, USB-C, auxiliary input; regional digital broadcast support varies
• Ingress Rating: IPX6/IPX7 when installed correctly
• Dimensions: 6.18" W x 2.68" H x 4.70" D
• Weight: 1.04 lb
• Warranty: 3 years

Compatibility

Works with compatible NMEA 2000-equipped JL Audio NRX-300 remote installations and compatible chartplotters as supported by their firmware and integration features. For retrofits, JL Audio offers separate kits for Fusion RA70 or MediaMaster 55/105 cutouts.

Installation Notes

Confirm dash dimensions, power supply, speaker impedance, antenna connection, and required network cabling. External amplifiers may be used with preamp outputs.
