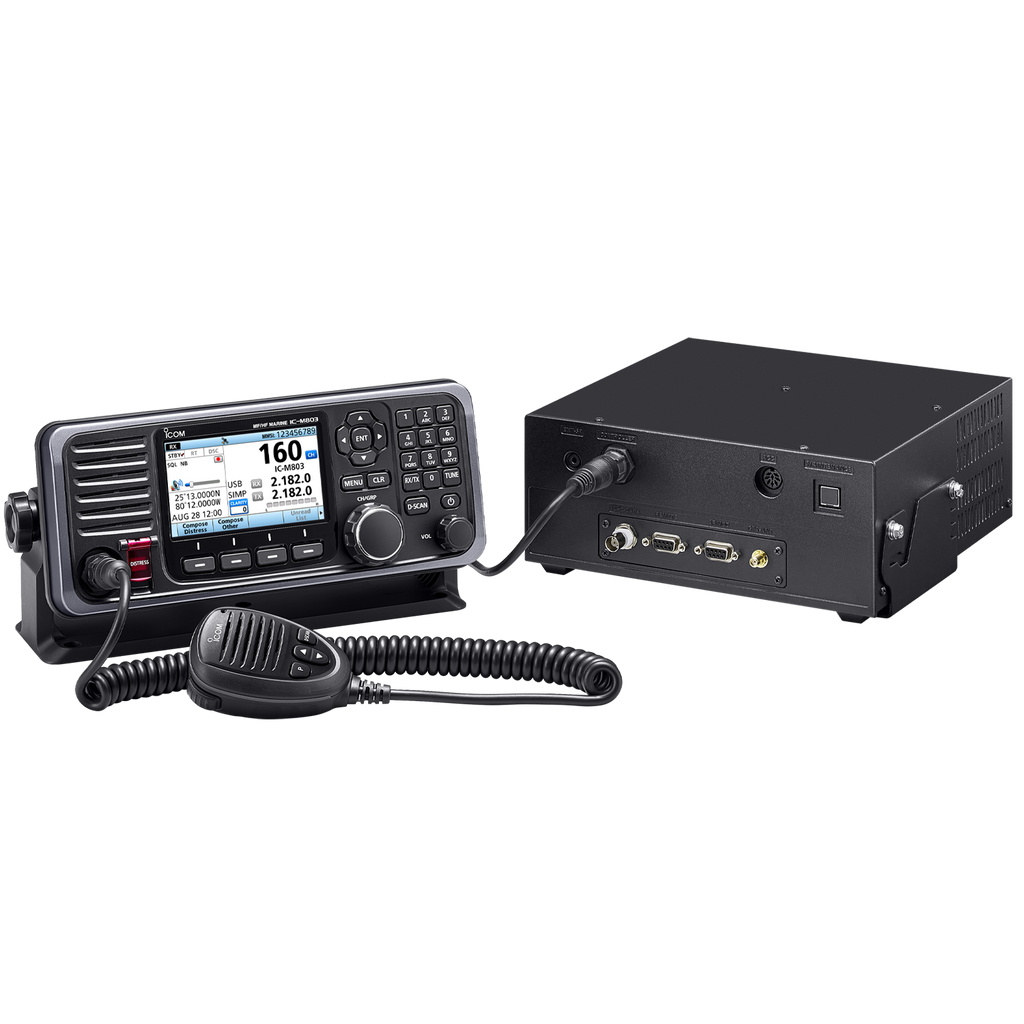

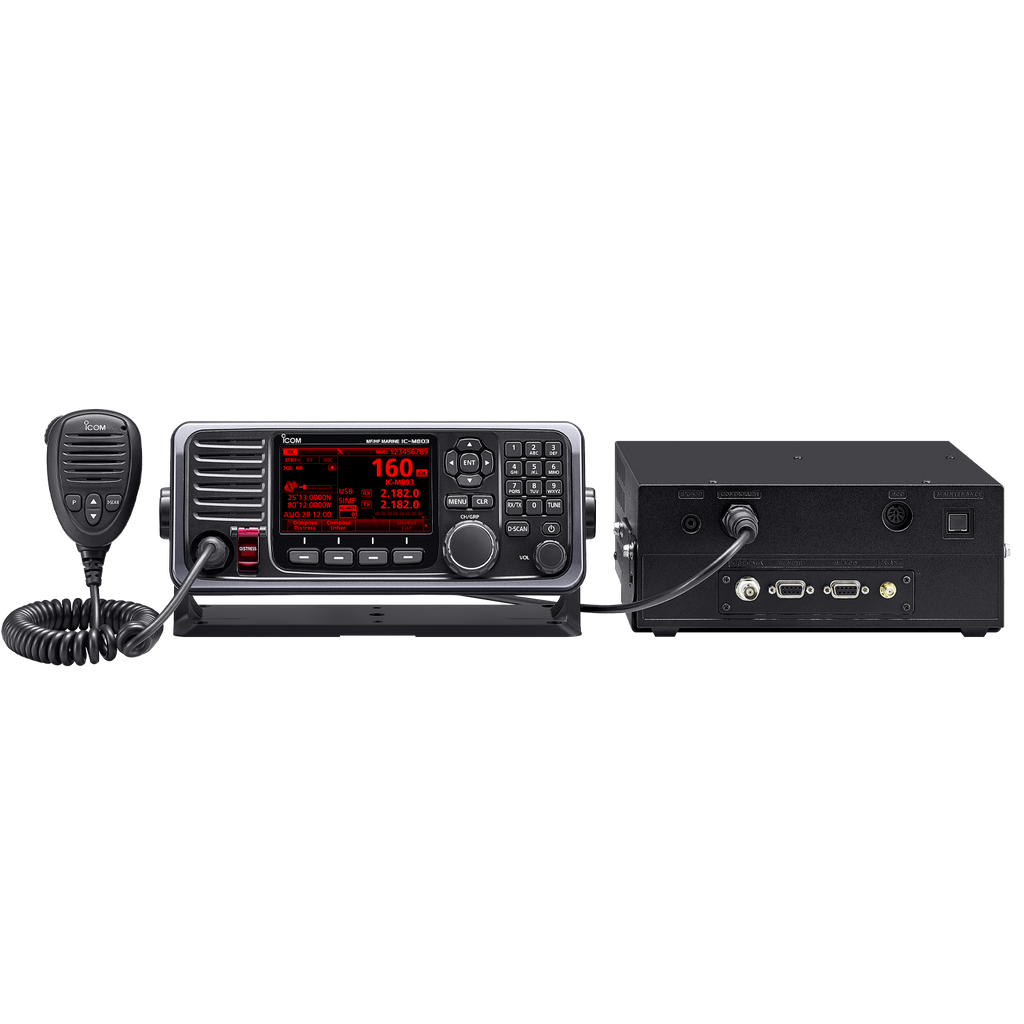

Icom IC-M803 Recreational SSB Radio GPS/GLONASS/SBAS Receiver with DSC, 4.3" Color TFT Display, and Microphone (M803)

The Icom M803 Fixed Mount Marine SSB Radio for Non-SOLAS Vessels is a Type: MF/HF, Class E transceiver that includes a built-in GPS receiver and DSC capability.

Features:

• Icom M803 Fixed Mount Marine SSB Radio for Non-SOLAS Vessels meets the ITU-R M.493-13 DSC specifications

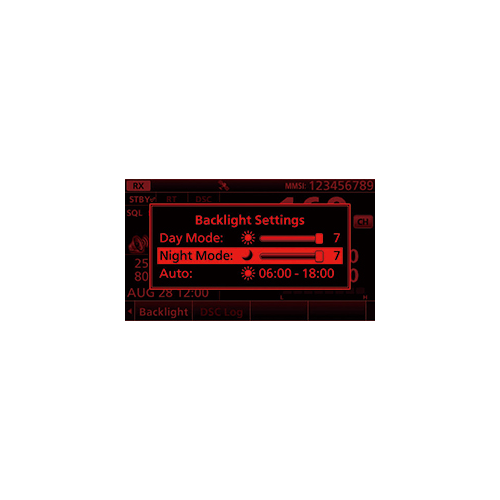

• Display: 4.3 inch wide viewing angle, color display with Day and Night modes
• Automatic Voice Recording function records the last 120 seconds (max.) of audio

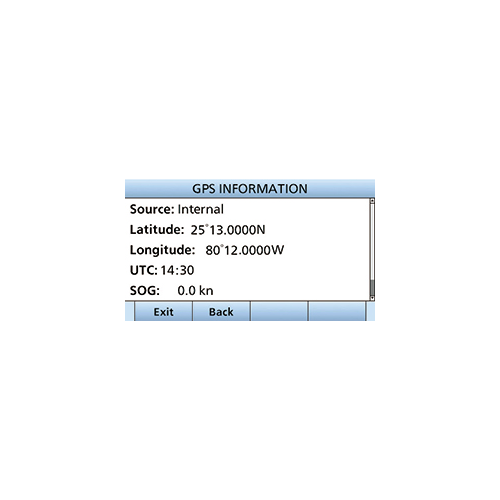

• Built-in GPS receiver and easy installation (GPS antenna supplied)
• IPX7 waterproof (controller only)
• Independent Emergency channels for monitoring Distress voice frequencies
• 150W output power

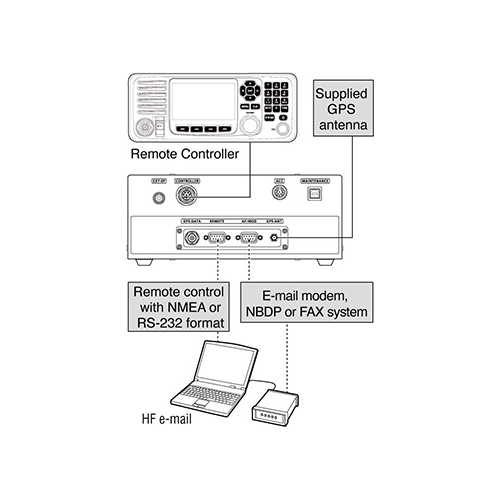

• NMEA0183 (4800 - 38400 bps) connectivity for exchanging GPS and DSC call data, and remote control
• RF Direct Sampling system improves receiver sensitivity and audio clarity
• Optional Accessories:
  • AT-140 optional antenna tuner (Sold Separately)
  • OPC-1465 SSB Control Cable - Function: Shielded Cable Connects M803 SSB Marine Radio to the AT-140 Auto-Antenna Tuner (Sold Separately)

Specifications:

• Frequency coverage:
  • Receive: 500 kHz - 29.9999 MHz (Continuous)
  • Transmit: 1.6 - 2.9999, 4.0 - 4.9999, 6.0 - 6.9999, 8.0 - 8.9999, 12.0 - 13.9999, 16.0 - 17.9999, 18.0 - 19.9999, 22.0 - 22.9999, 25.0 - 27.5000 MHz
  • DSC: 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 MHz
• Mode:
  • TX/RX: J3E (USB, LSB), J2B (AFSK), F1B (FSK), A1A (CW), H3E (AM) ( H3E receive only)
  • DSC: J2B
• Antenna impedance: 50Ω (unbalanced)
• Usable temperature range: -20° C to +55° C, -4° F to +131° F
• Frequency stability:
  • TX/RX: ±10 Hz (below 29.999 MHz)
  • DSC: ±10 Hz
• Power supply requirement: 13.6V DC ±15% (Negative ground)
• Current drain (at 13.6V DC)
  • Receive: Less than 3.0A (Maximum audio output)
  • Transmit: 30A Maximum (Maximum output power)
• Dimensions (Projections not included):
  • Main unit (W × H × D): 240 mm x 94 mm x 238 mm, 9.4" x 3.7" x 9.4"
  • Controller (W × H × D): 274 mm x 114 mm x 86 mm, 10.8" x 4.5" x 3.4"
• Transmitter:
  • Output power: (1.6 - 27.500 MHz) 150, 100, 60, 20 W PEP (selectable)
  • Spurious emissions: Less than 62 dB (Below peak output power @ 150 W PEP)
  • Carrier suppression: More than 40 dB (Below peak output power @ 150 W PEP)
  • Unwanted sideband suppression: More than 55 dB (Below peak output power @ 150 W PEP with 1500 Hz AF Input)
  • Microphone impedance: 600Ω
• Receiver:
  • Audio output power: 4.0W at 10% distortion with a 4 Ωload
  • Clarity variable range: ±150 Hz
