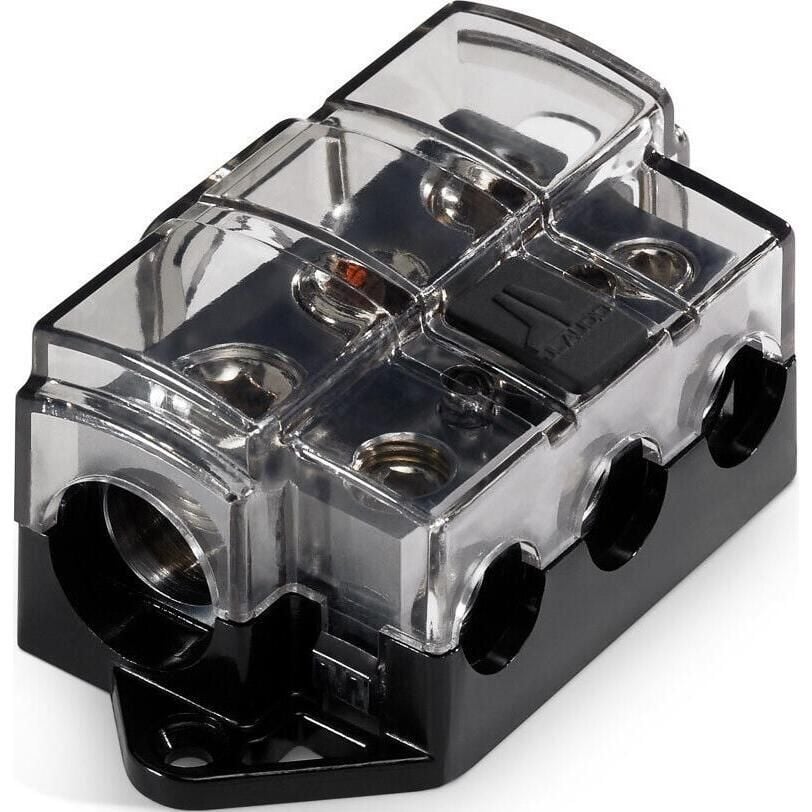

JL Audio XD-PDBU-3X 3-Way Unfused Power Distribution Block (010-13457-00)

Divide a single large-gauge power or ground run into three smaller connections with the JL Audio XD-PDBU-3X. Designed for multi-amplifier systems, this unfused distribution block uses machined brass with corrosion-resistant plating and OmniSert terminals to simplify mixed-gauge cable installation.

Key Features

• One large input distributes to three independent outputs
• OmniSert terminals grip different wire gauges without reducer sleeves
• Forged and machined brass conductor with marine-grade tin plating
• High-temperature polycarbonate base and protective cover
• Useful for power or ground distribution where additional branch fusing is not required

General Specifications

• Product Type: Unfused three-way power distribution block
• Input Wire Size: 1/0–4 AWG
• Output Wire Size: 4–8 AWG each
• Number of Outputs: 3
• Conductor Material: Forged and machined brass
• Contact Finish: Marine-grade tin (stannum) plating
• Base and Cover: High-temperature polycarbonate

Installation Notes

This is an unfused block. Provide appropriate overcurrent protection at required locations and confirm that reduced-size output conductors are adequately protected.

What's in the Box

• 1 x JL Audio three-way power distribution block with protective cover
