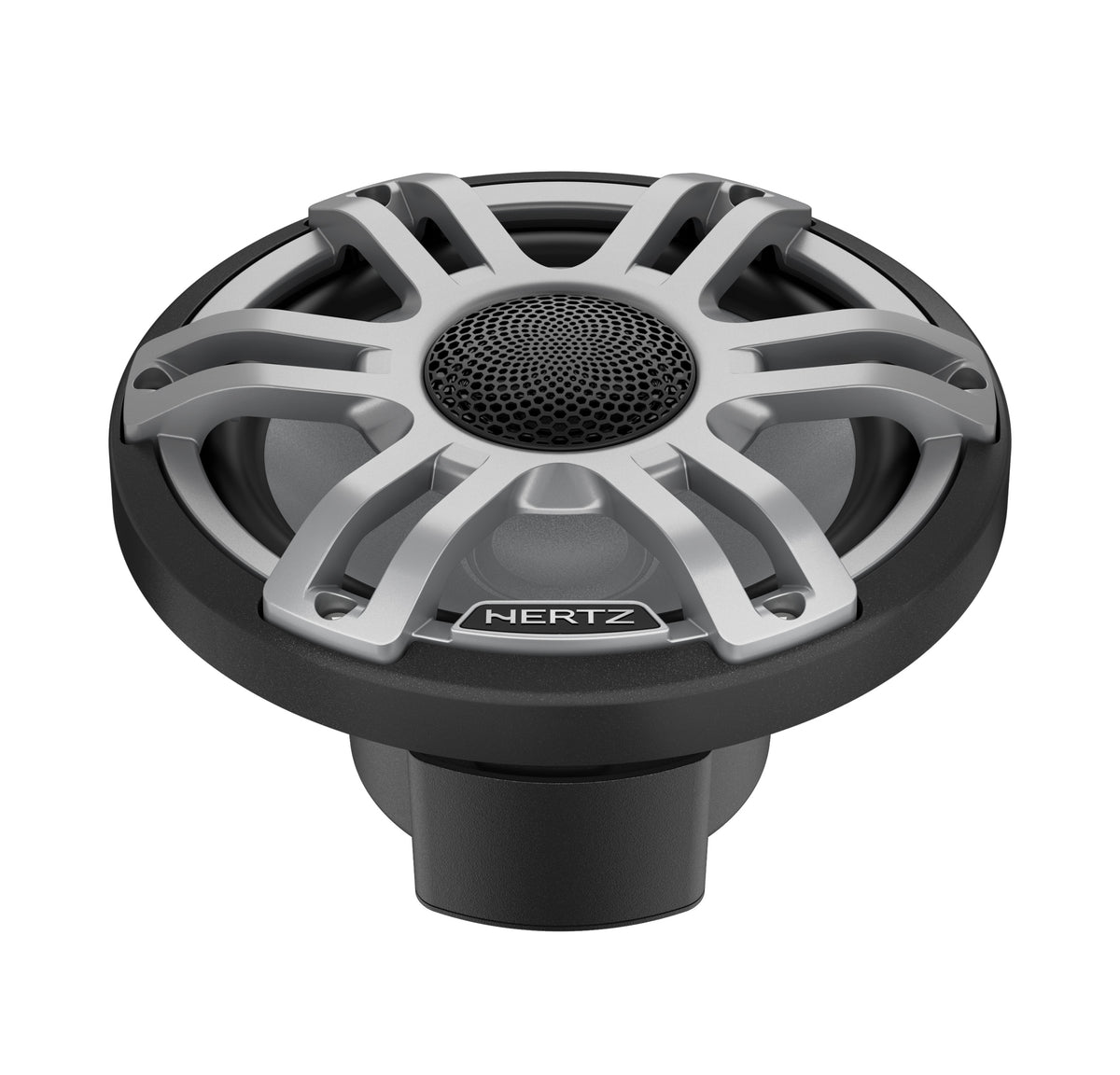

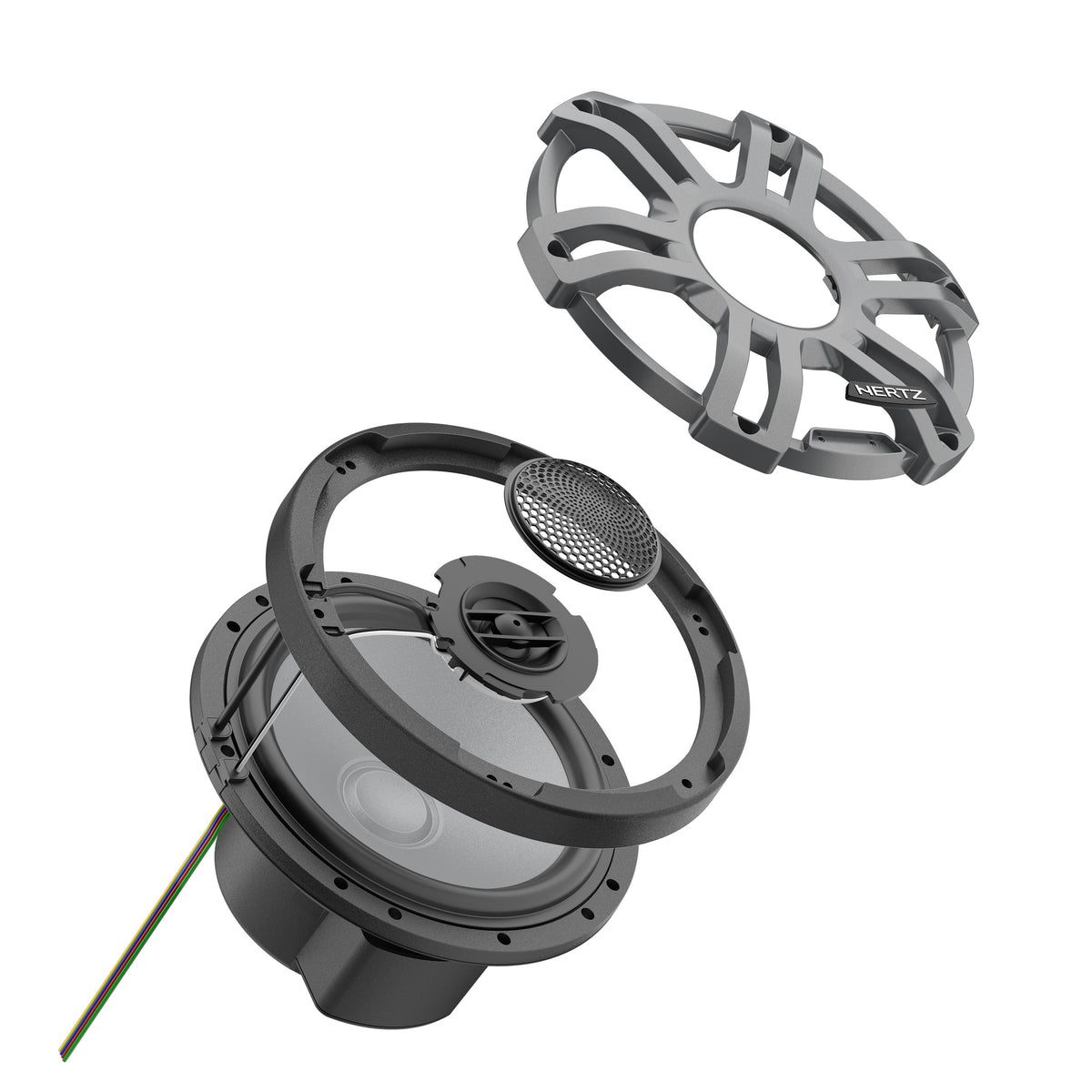

Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)
1/5
  • Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)
  • Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)
  • Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)
  • Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)
  • Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)
Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)

Hertz HMX 7.7 S-LD-G.2 7.7" 100W RMS 4-Ohm 2-Way Marine Coaxial Speakers with RGB LED Lighting, Sport Gray Grilles, Pair (78040333)

UPC: 8018823141659
Out of stock
$599.99
Full Factory HERTZ AUDIO Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

The Hertz HMX 7.7 S-LD-G.2 marine coaxial speaker pair combines high-efficiency midbass drivers with neodymium tweeters for clean, detailed music reproduction across exposed helm, cockpit and open-air listening areas. Each 7.7-inch speaker is rated for 100W RMS continuous power at 4 ohms. Integrated RGB lighting adds selectable illumination through compatible external lighting control hardware. The sport gray grilles complement boat interiors while the UV-stabilized materials withstand exposure to spray, sunlight and salt air.

Key Features

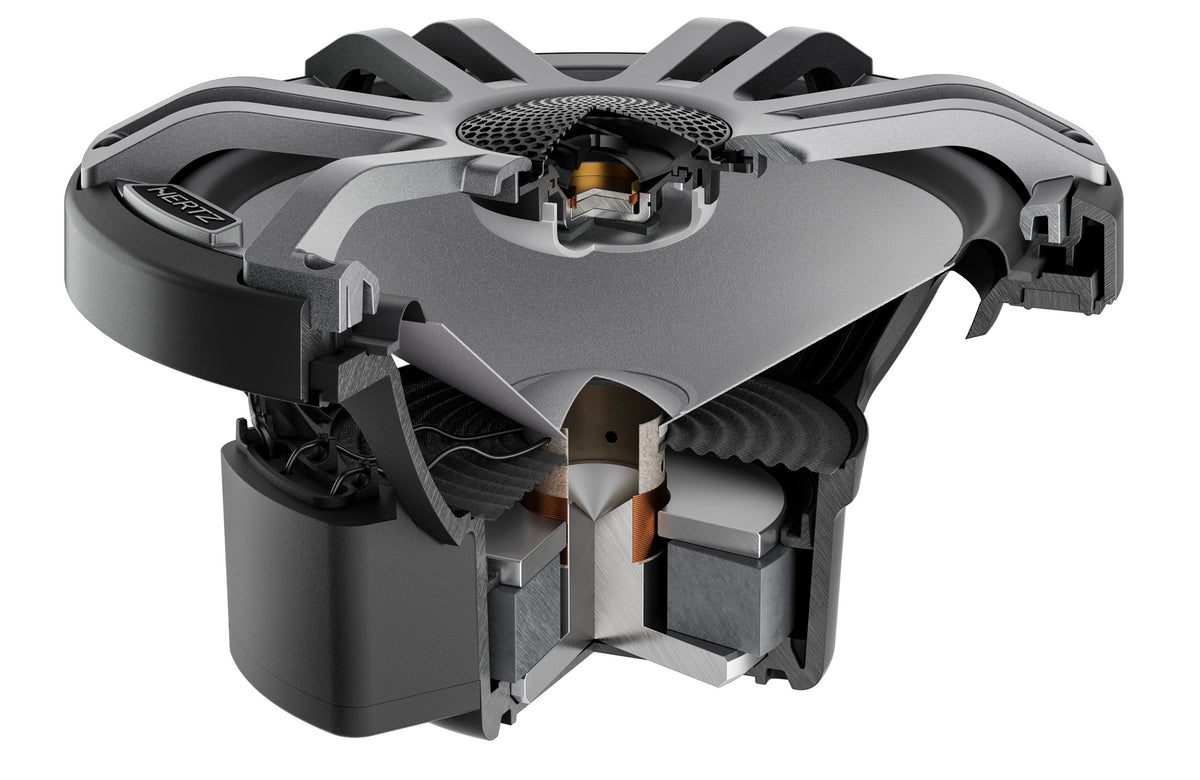

  • Two-way marine coaxial design with long-excursion woofer and neodymium tweeter
  • 100W RMS continuous / 200W peak per speaker, 4-ohm nominal impedance
  • Corrosion-resistant gold-plated terminals and sealed integrated crossover
  • Polypropylene cone with UV inhibitors and co-molded Santoprene rubber surround
  • Aramid-fiber spider, silicone-insulated lead wires and marine-grade molded basket
  • IP65 water-jet resistance and UV / salt-fog resistance
  • Stereo pair sold together

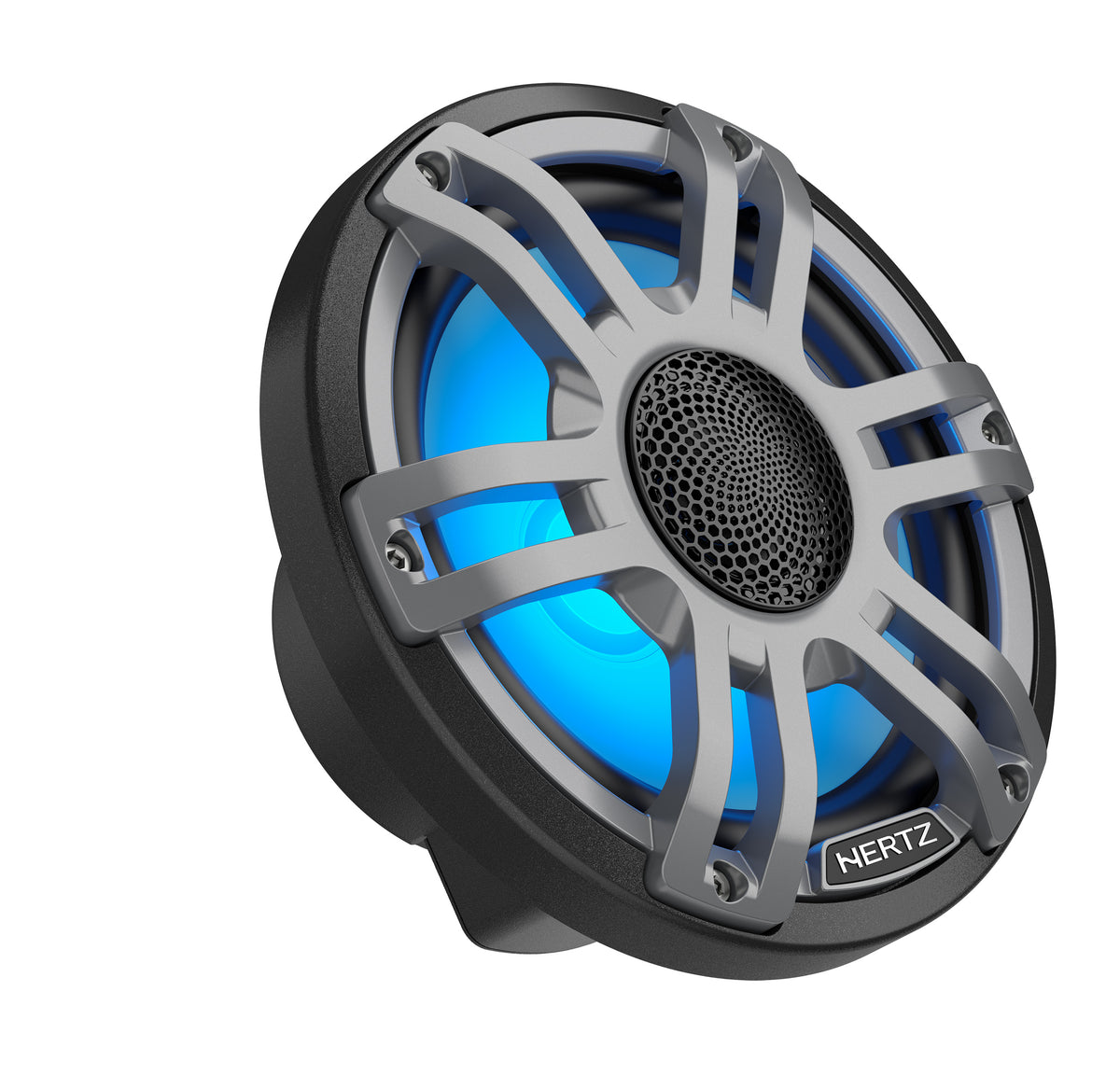

  • Integrated RGB LED lighting for color customization with a compatible controller
  • Second-generation (.2) model with redesigned Sport grille and revised protected crossover
  • Updated neodymium high-frequency system with enhanced off-axis dispersion
  • 1.4-inch PEI dome tweeter with acoustic lens for high-frequency dispersion

Technical Specifications

  • Continuous power handling: 100W RMS per speaker
  • Peak power handling: 200W per speaker
  • Nominal impedance: 4 ohms
  • Configuration: 2-way coaxial, pair
  • Water protection: IP65
  • Marine qualification: UV resistance ASTM-D4329; salt fog ASTM-B117
  • Cone material: polypropylene with UV inhibitors
  • Surround: Santoprene elastomer
  • Tweeter magnet: neodymium
  • Grille finish: Sport Gray
  • RGB LED lighting: yes
  • Size: 196mm (7.7 in.)

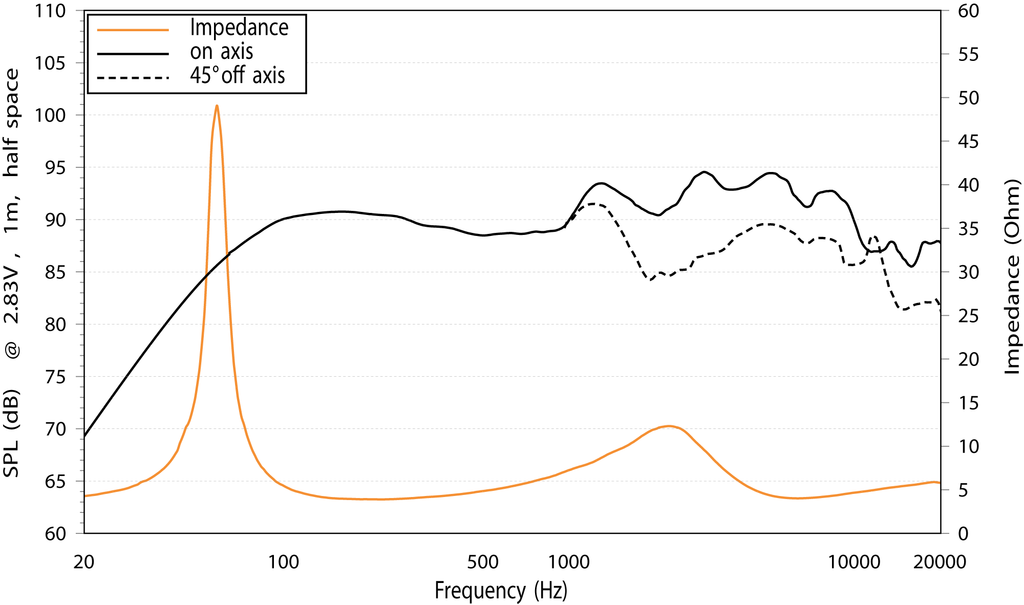

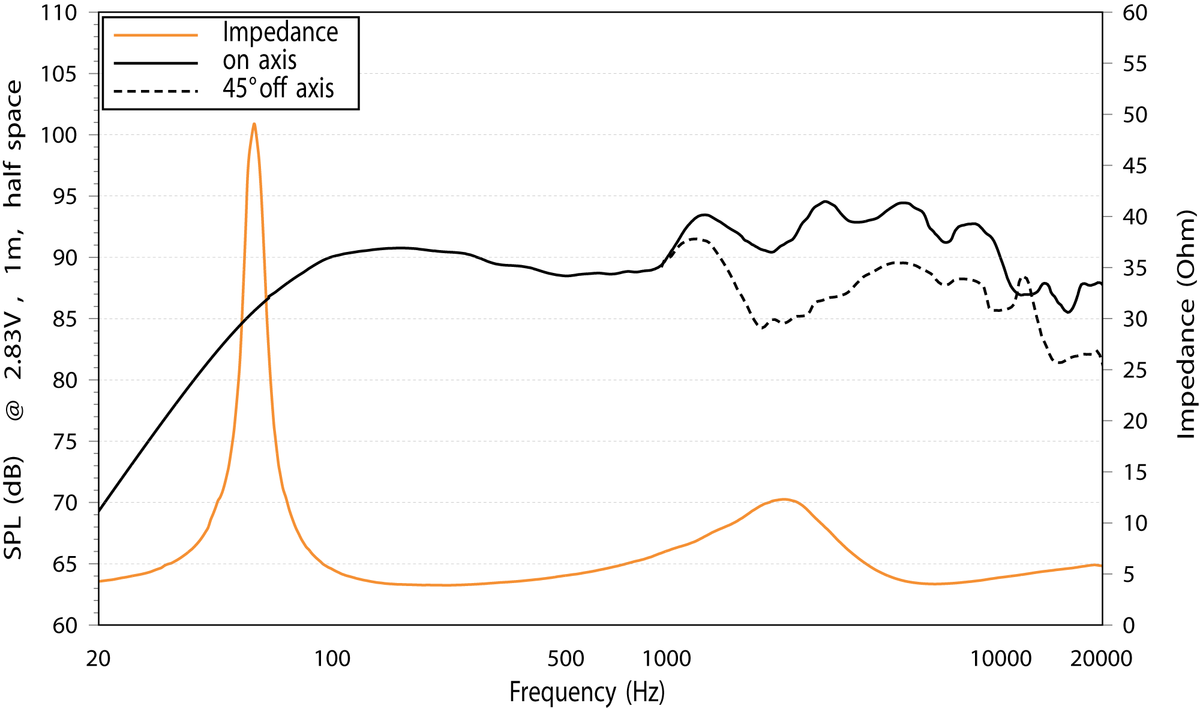

  • Frequency response: 45Hz–25kHz
  • Sensitivity: 91dB
  • Overall diameter: 196mm (7.72 in.)
  • Mounting-hole diameter: 158mm (6.22 in.)
  • Mounting depth: 79mm (3.11 in.)
  • Woofer voice coil: 32mm (1.26 in.)
  • Tweeter diaphragm: 36mm (1.4 in.)
  • Tweeter voice coil: 20mm (0.8 in.)
  • Re: 3.3 ohms
  • Fs: 60Hz
  • Vas: 12.5L
  • Mms: 22g
  • Cms: 0.32mm/N
  • BL: 6T·m
  • Qts: 0.72
  • Qes: 0.76
  • Qms: 11.8
  • Le: 0.56mH
  • Generation: second-generation .2
  • Updated crossover: sealed and protected, with resettable solid-state tweeter protection
  • Updated grille: gray parametric mesh Sport grille

Compatibility

  • 4-ohm-rated marine amplifiers, stereo receivers, and speaker outputs
  • Hertz HM RGB 1 BK or compatible multicolor LED controllers

Installation Guidance

  • Use a 4-ohm-compatible channel for each speaker and select amplifier power appropriate to 100W RMS per speaker
  • Choose a high-pass crossover to protect midbass cones from excessive sub-bass excursion
  • Match mounting hole, speaker depth and panel thickness to Hertz dimensional drawings
  • Secure wiring, use marine-rated terminations and seal deck or bulkhead penetrations
  • Feed RGB lighting from a properly fused 12V lighting supply and compatible RGB controller; audio terminals and lighting wires are separate
