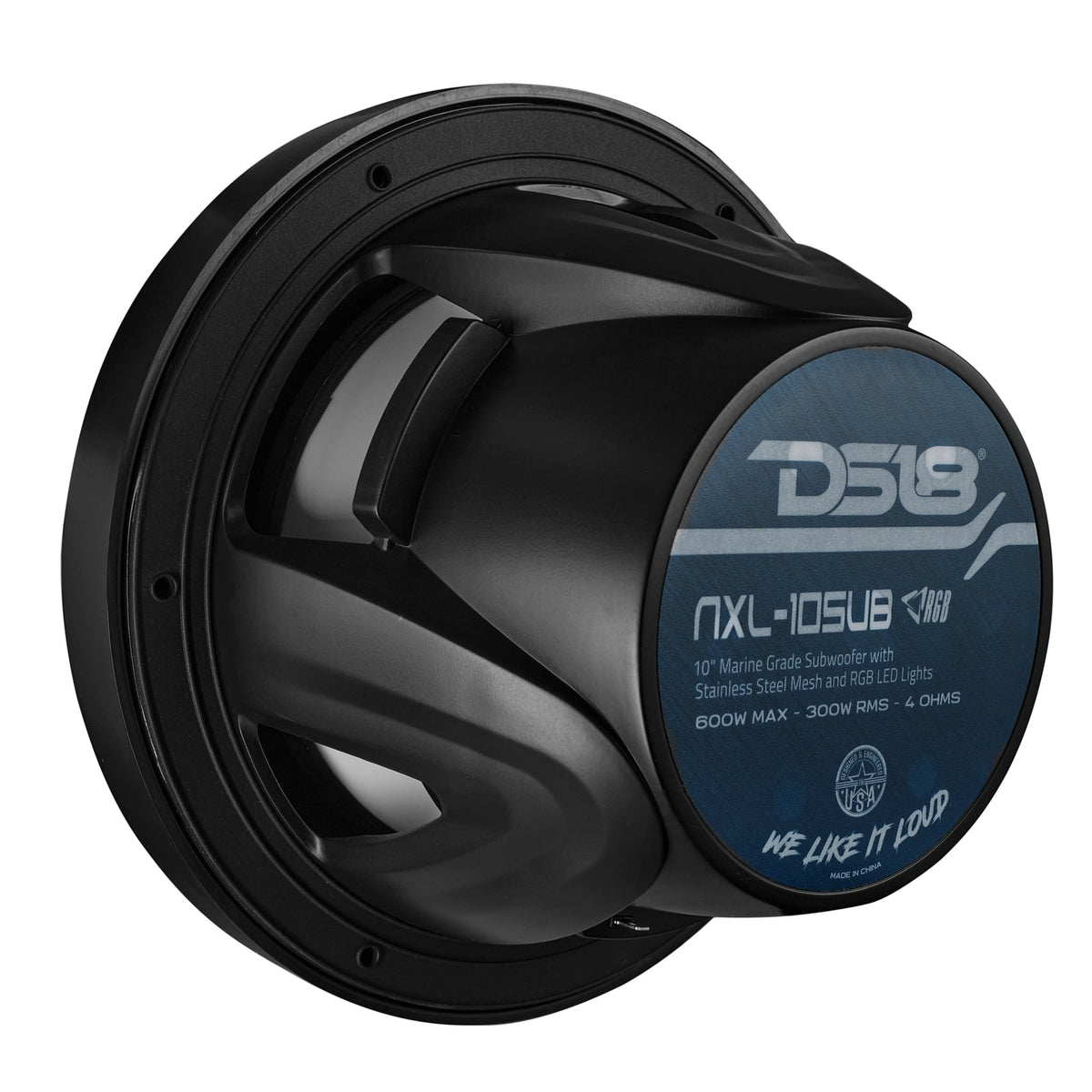

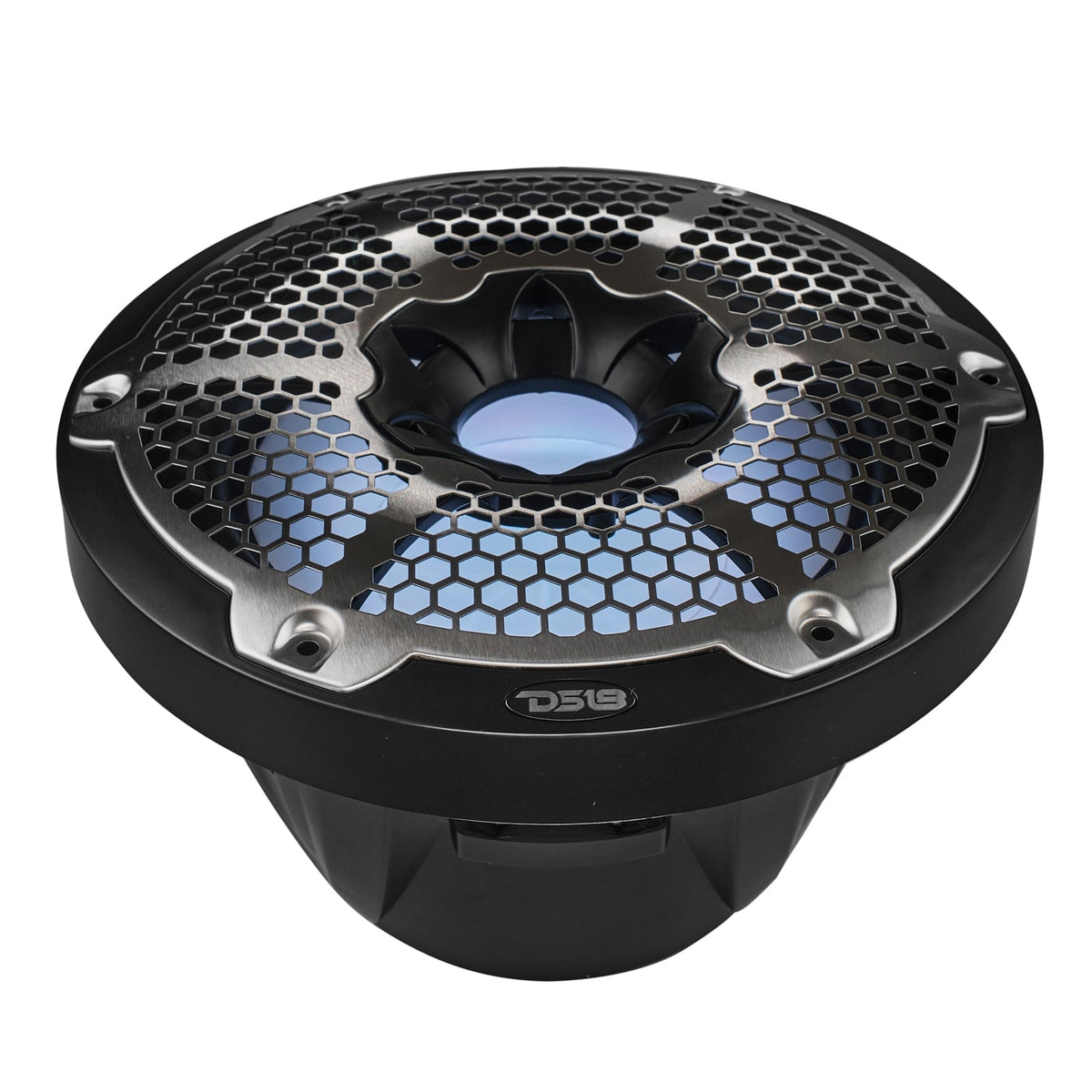

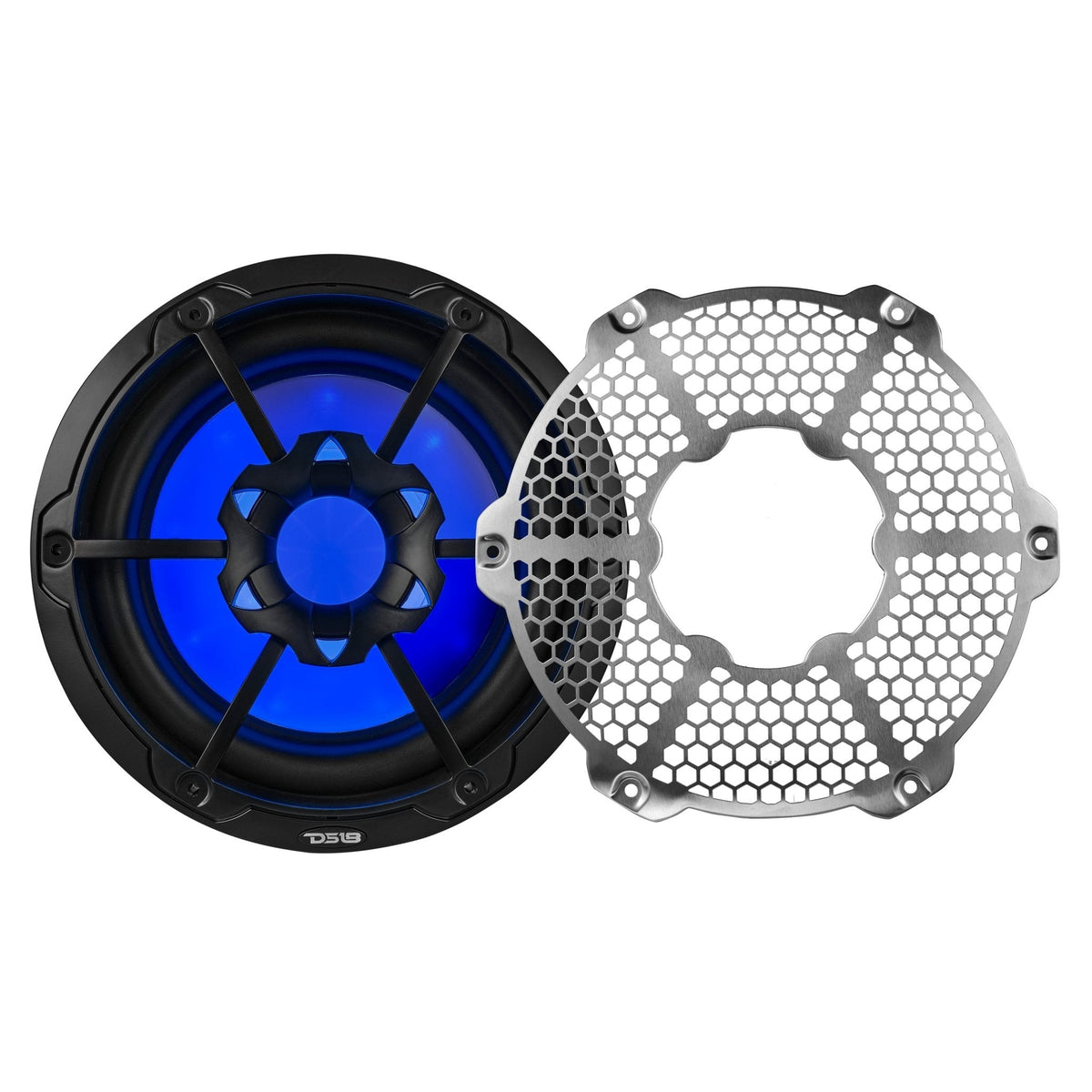

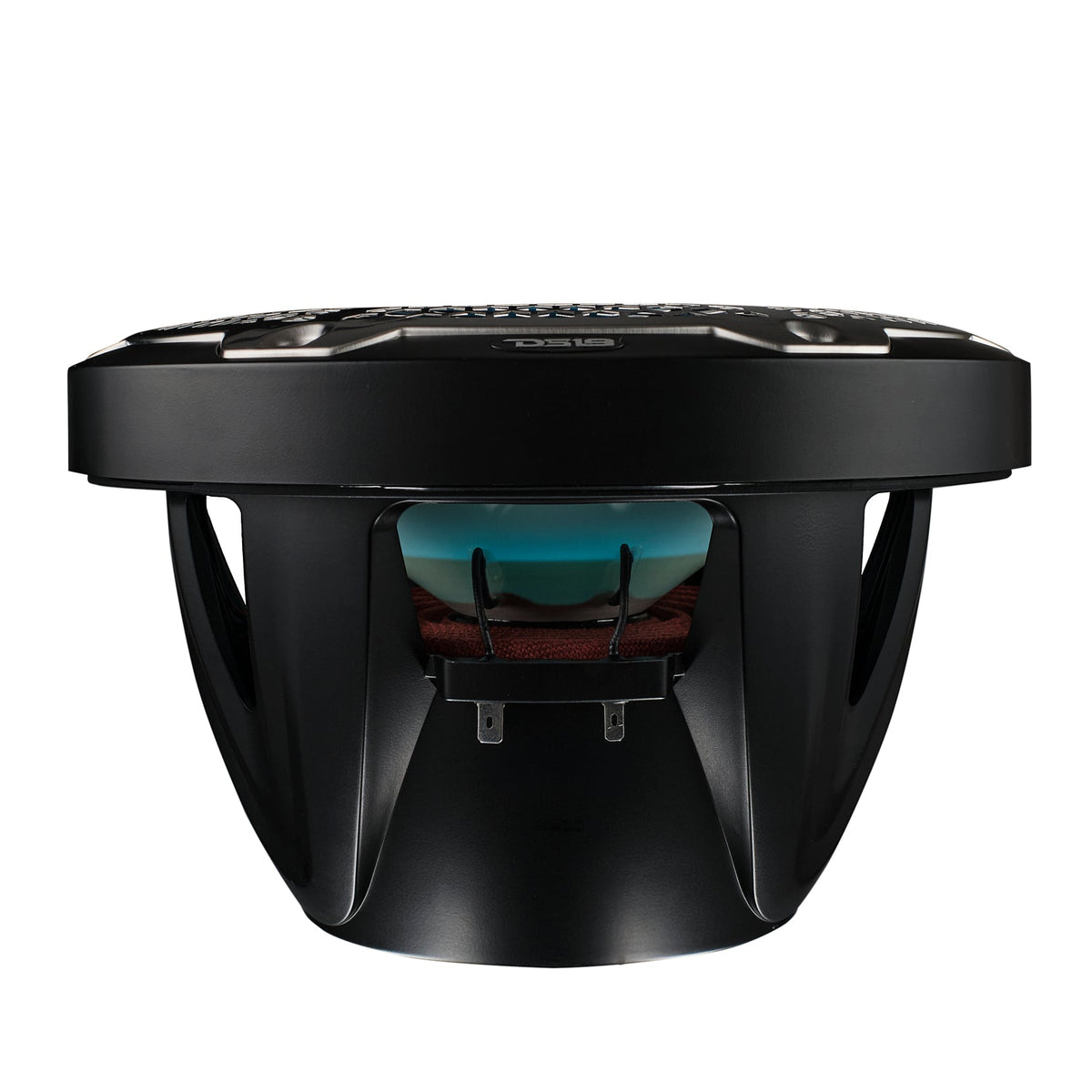

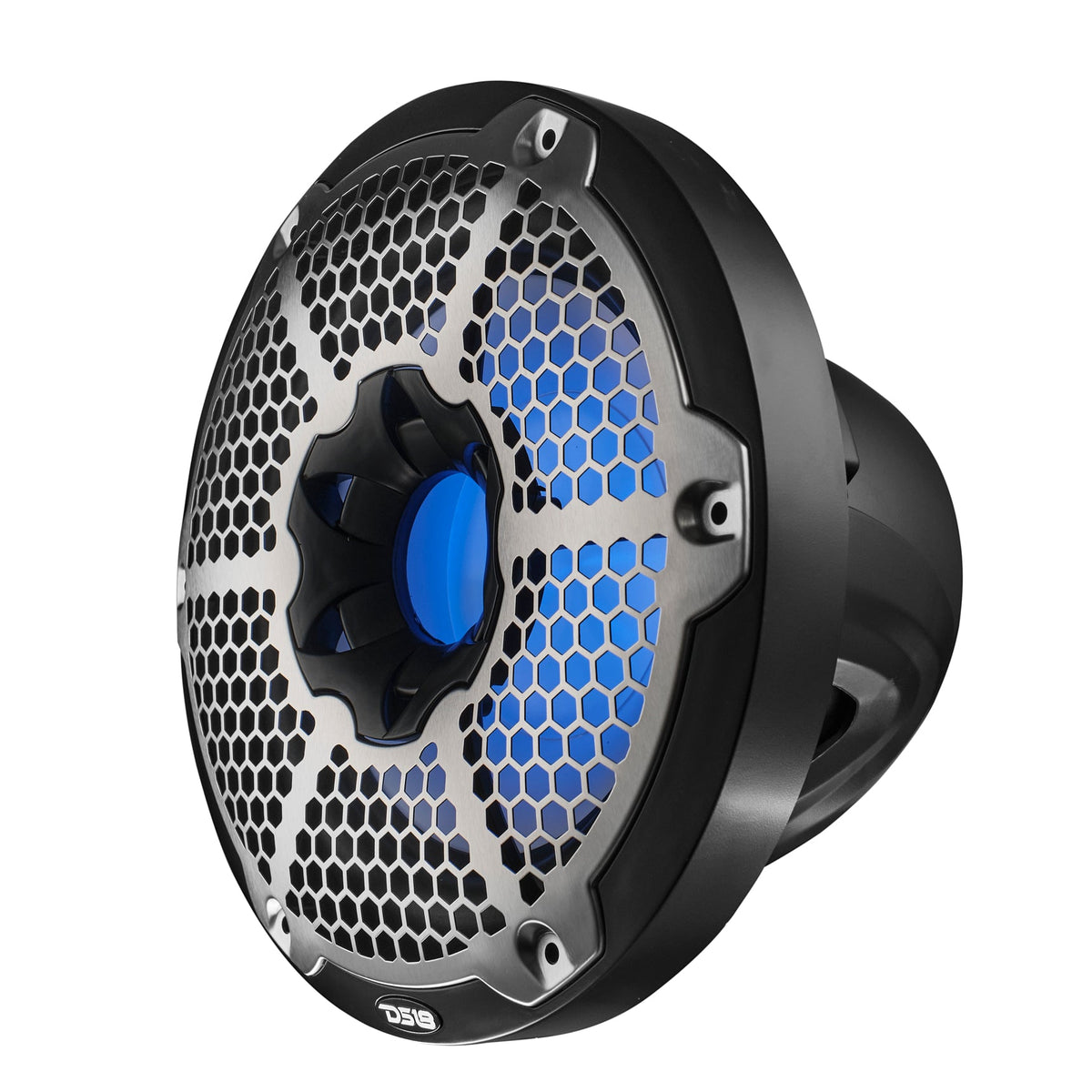

DS18 NXL-10SUB/BK HYDRO 10" 300W RMS 4-Ohm Marine Subwoofer with RGB LED Lighting, Black

The DS18 NXL-10SUB/BK HYDRO 10-inch marine subwoofer reinforces low-frequency output for open-air boats and off-road sound systems. This black single-voice-coil model is rated at 300W RMS and features integrated RGB accent lighting and an IP65-rated marine-oriented construction.

Key Features and Benefits

• 300W RMS continuous and 600W maximum power ratings; do not confuse the maximum figure with continuous amplifier output.
• Single 4-ohm voice coil simplifies matching to a suitable marine subwoofer amplifier.
• 2-inch glass-fiber-former voice coil and 72 oz ferrite magnet support controlled low-frequency operation.

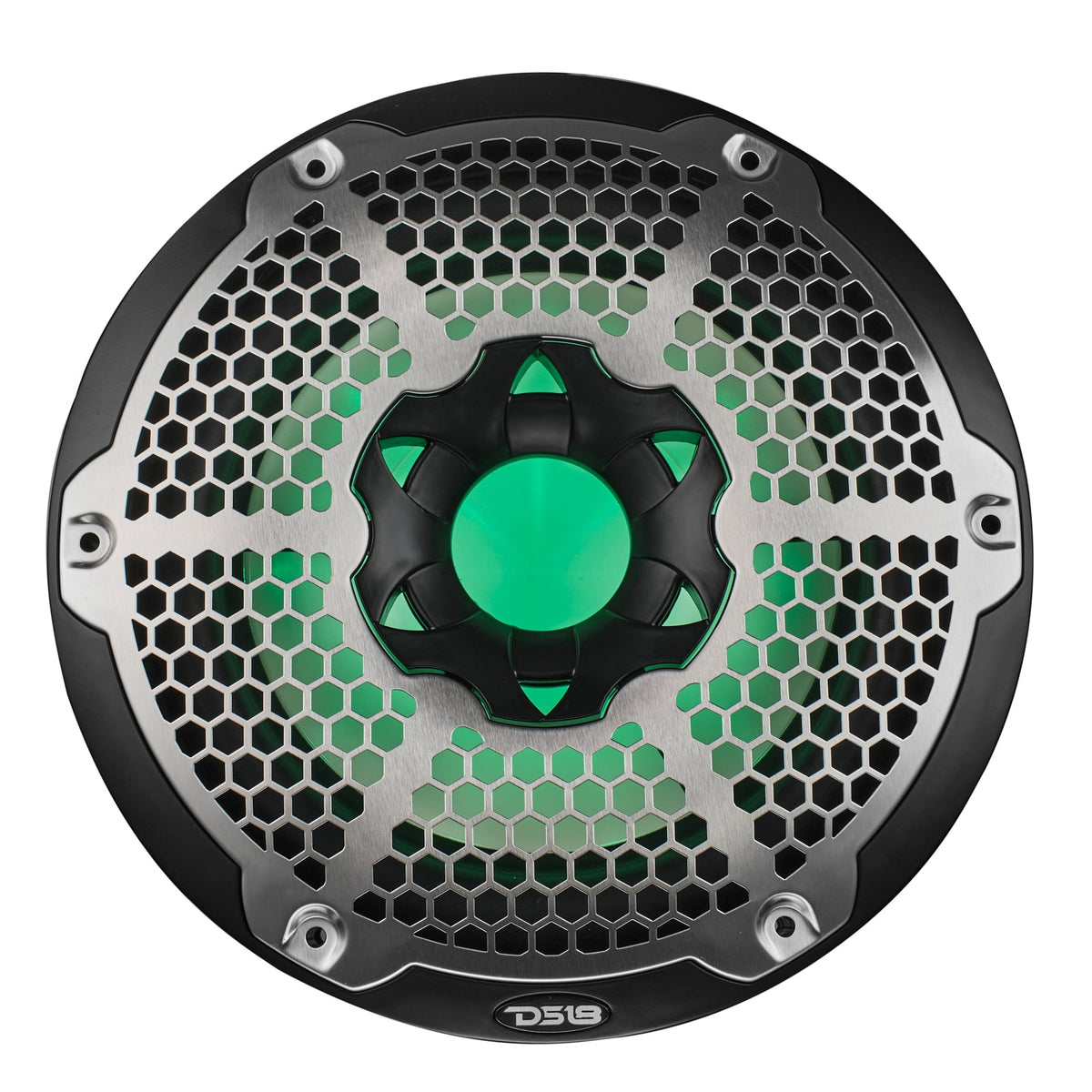

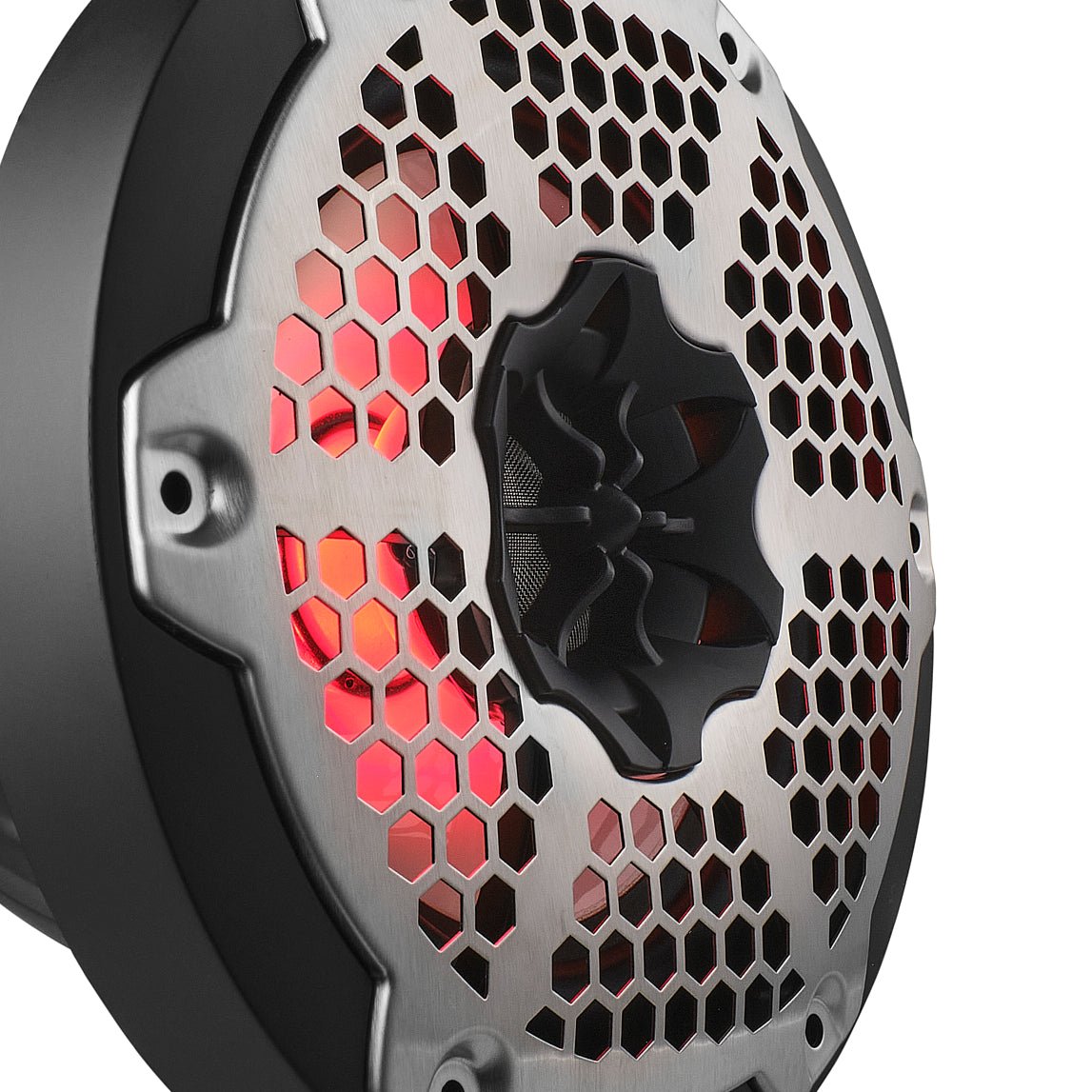

• Integrated RGB lighting adds illuminated accent effects when wired to compatible LED control equipment.

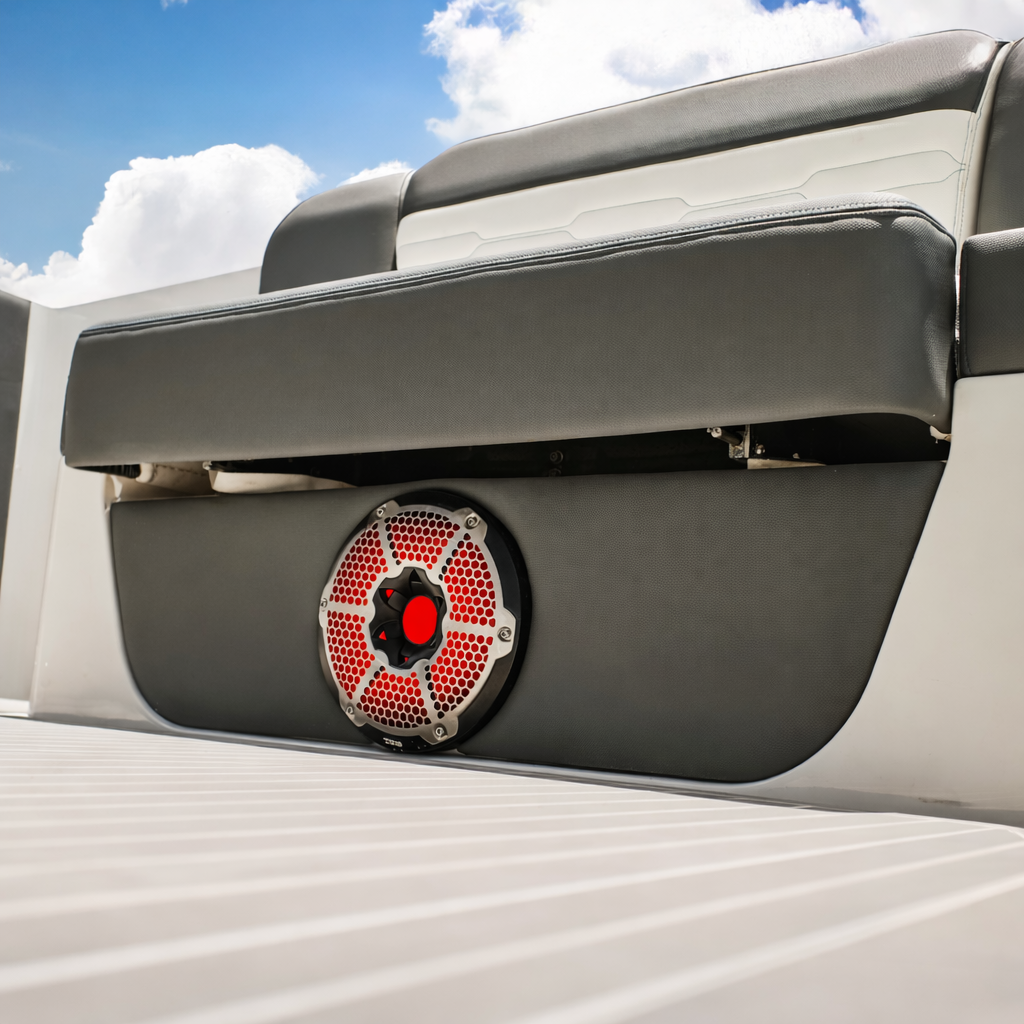

• UV-protected composite basket and IP65-rated construction support exposed marine/powersports installations.
• Manufacturer-published Thiele/Small parameters assist enclosure and system-design planning.

Technical Specifications

• Nominal size: 10 in. (254 mm)
• Continuous power handling: 300W RMS
• Maximum power handling: 600W
• Nominal impedance: 4 ohms, single voice coil
• Sensitivity (1W/1m): 89dB
• Frequency response: 35Hz–250Hz
• Recommended low-pass crossover: 100Hz
• Voice-coil diameter: 2 in. (50.8 mm)
• Voice-coil former: Glass fiber
• Winding material: CCAW
• Magnet weight: 72 oz
• Enclosure/basket: UV-protected high-temperature injection-molded composite
• Water resistance: IP65
• Equivalent compliance volume (Vas): 26.7L / 0.94 cu. ft.
• Free-air resonance (Fs): 45Hz
• Mechanical Q (Qms): 8.919
• Electrical Q (Qes): 0.805
• Total Q (Qts): 0.457
• DC resistance (Re): 3.65 ohms

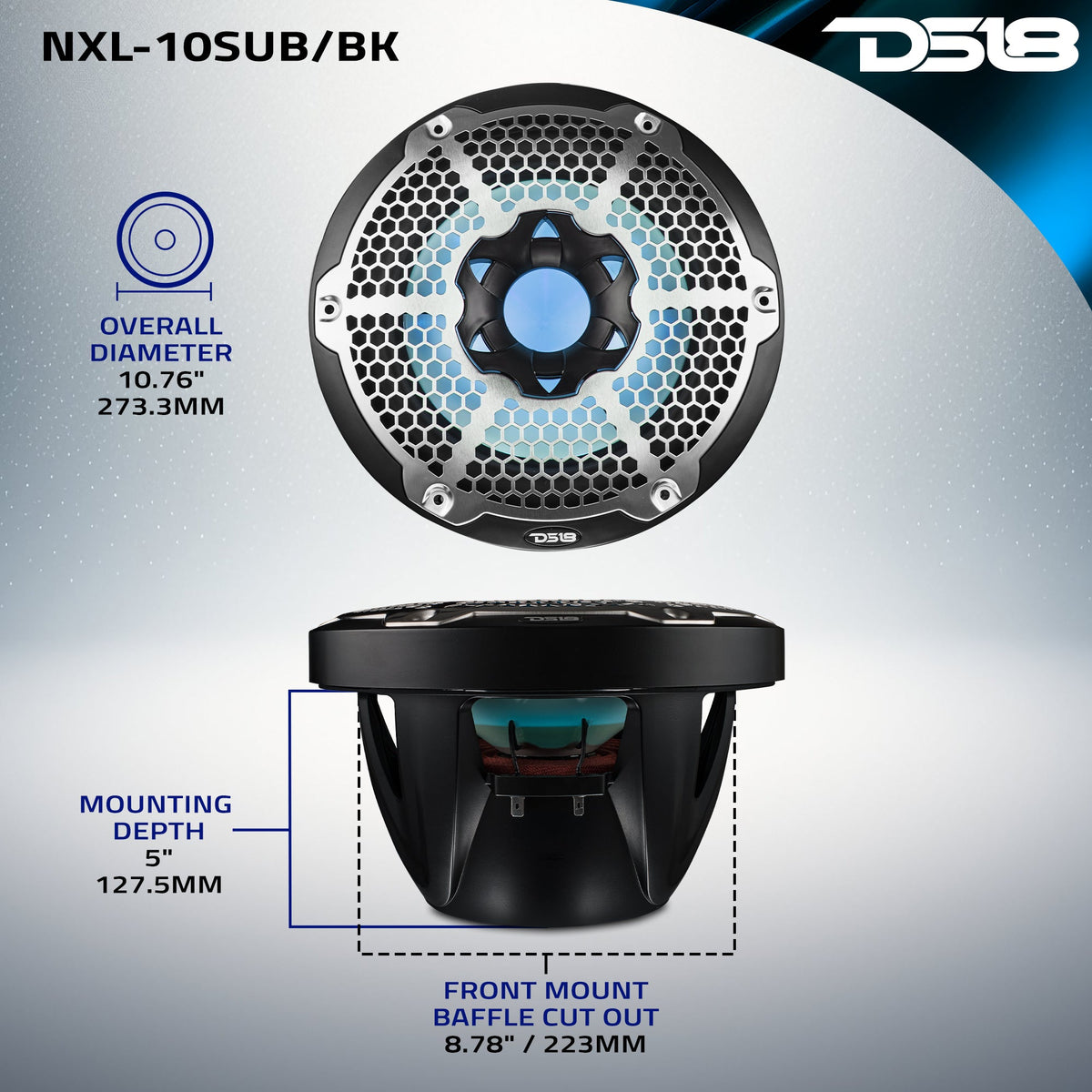

• Overall diameter: 10.76 in. (273.3 mm)
• Front cutout diameter: 8.78 in. (223 mm)
• Mounting depth: 5 in. (127.5 mm)
• Overall depth: 6.73 in. (171 mm)
• Unit weight: 14 lb
• Finish: Black
• RGB LED lighting: Integrated

Compatibility

• Suitable for systems supporting one 4-ohm subwoofer load and conventional external RGB LED control.

Installation and System Integration

• Use a marine-rated 4-ohm-compatible amplifier and configure a subwoofer low-pass filter; DS18 recommends 100Hz.
• Cut a properly supported 8.78-inch opening and verify 5-inch rear clearance plus wiring and ventilation space.
• Provide separate RGB LED power/control connections; the audio voice coil and lighting are distinct circuits.
• Choose installation geometry and acoustic loading based on the published Thiele/Small parameters rather than assuming every bulkhead will reproduce the same bass response.

What's in the Box

• One 10-inch marine subwoofer

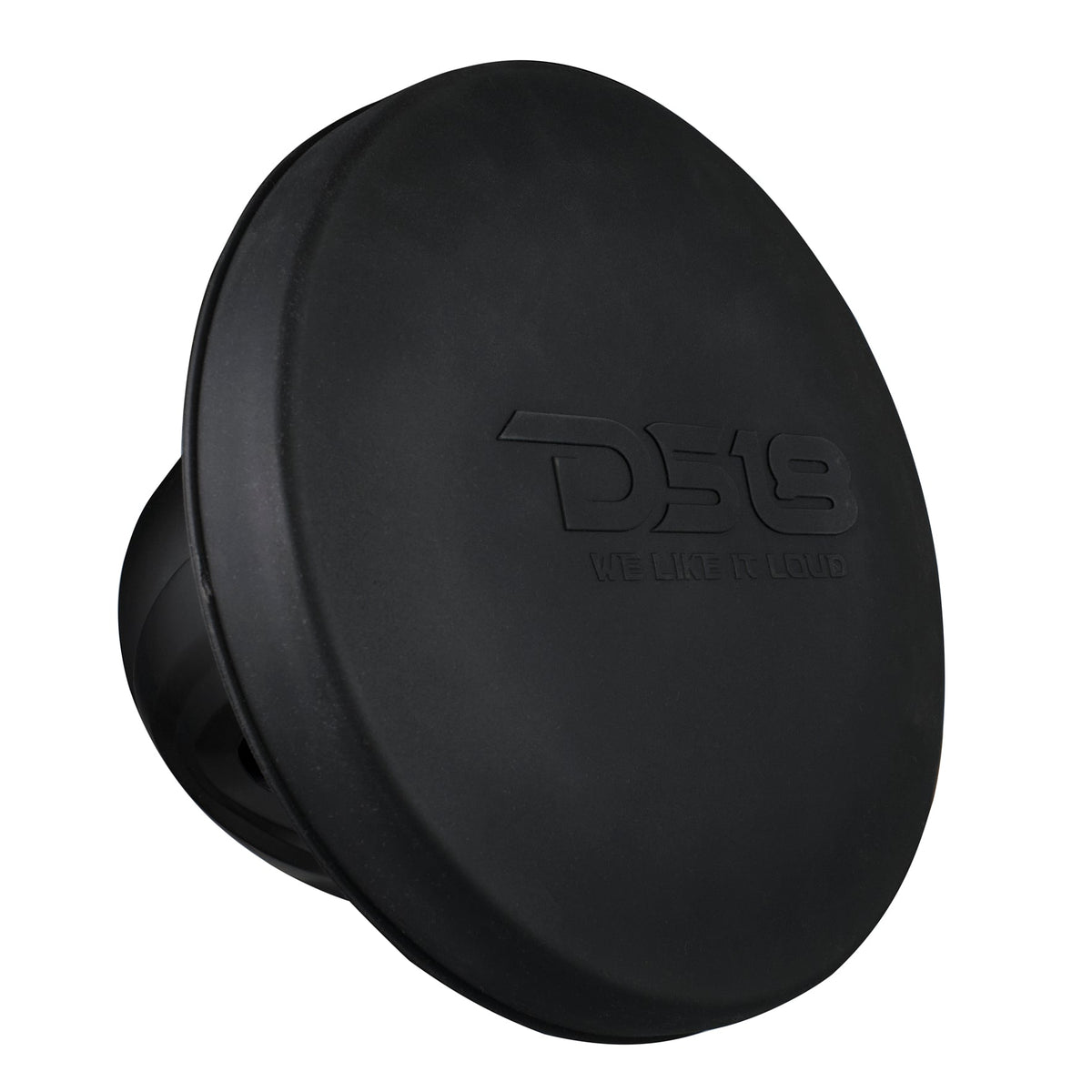

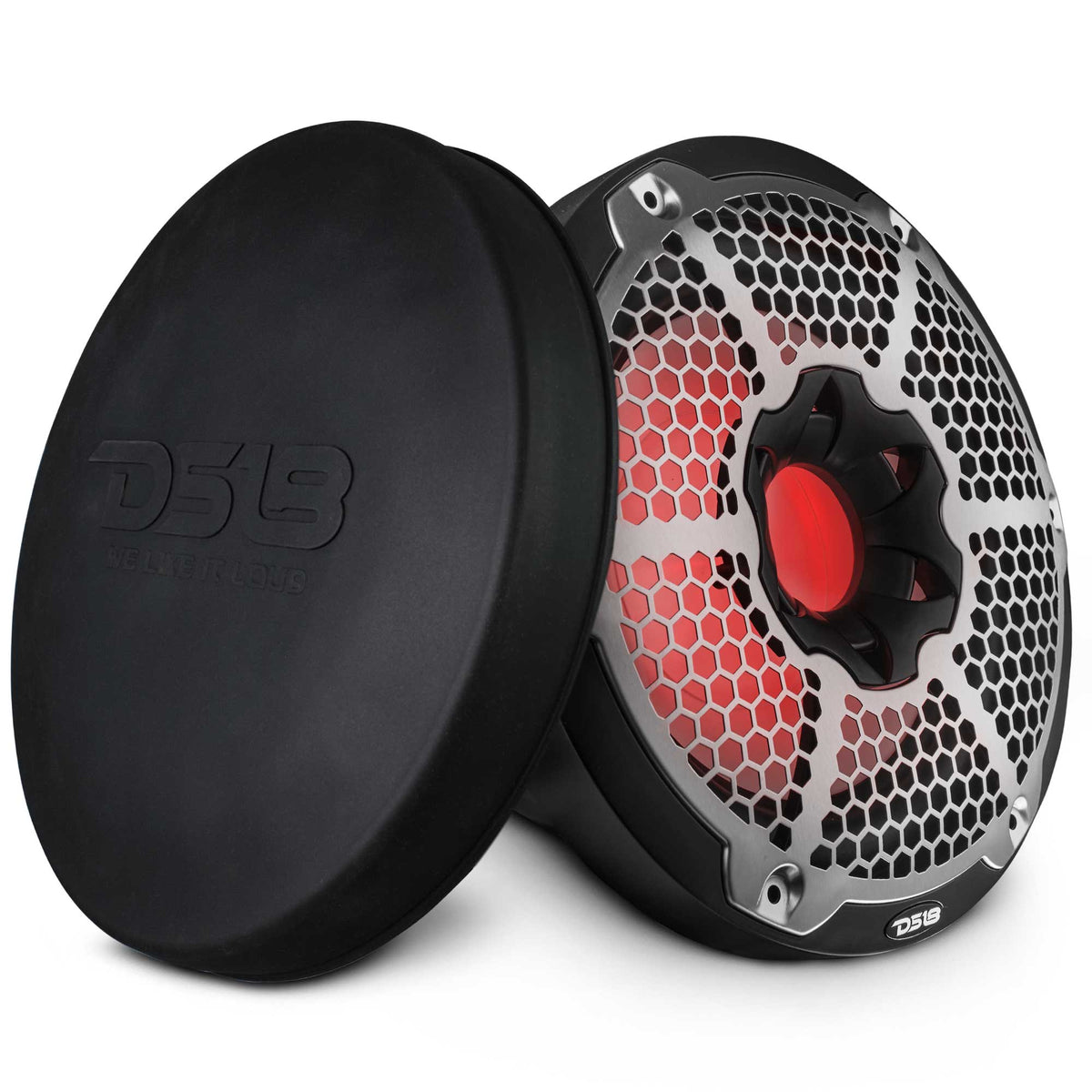

• Silicone protective cover
