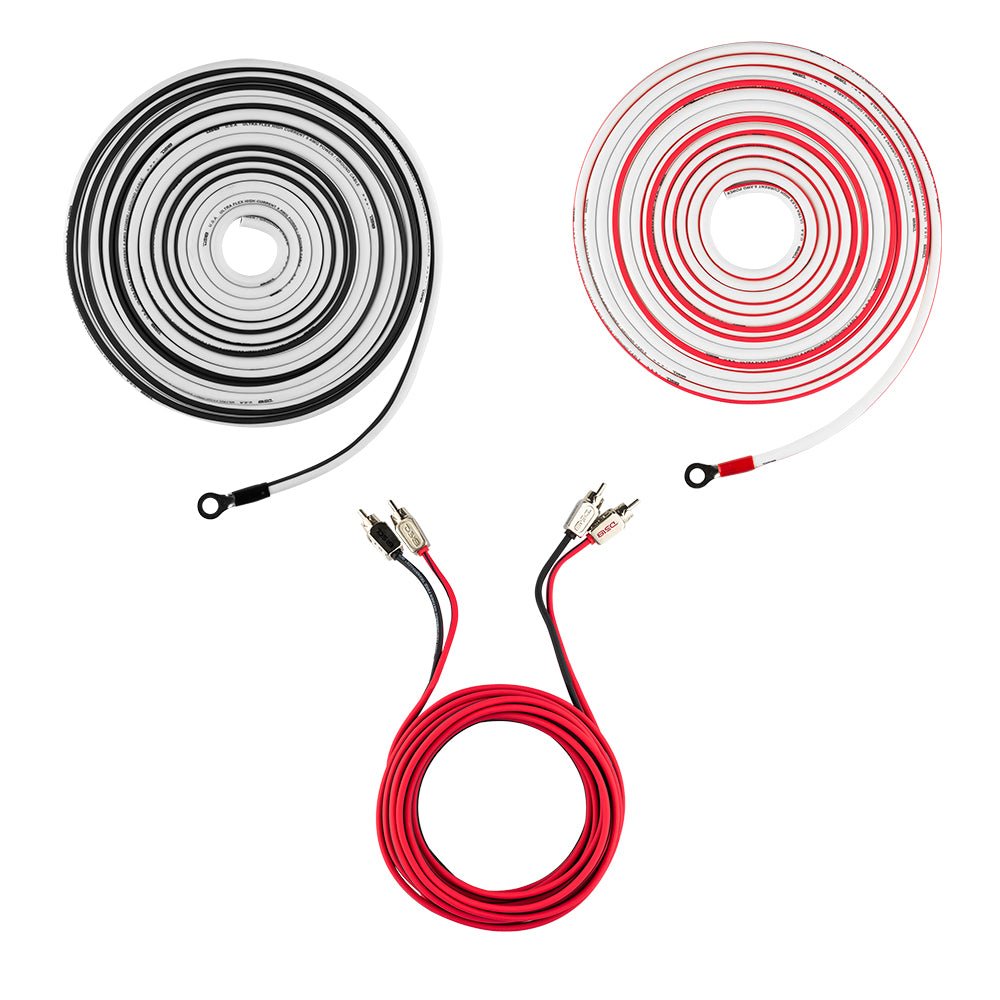

DS18 MOFCKIT8 HYDRO 8 AWG Marine-Grade Tinned OFC Amplifier Wiring Kit, White

The DS18 HYDRO MOFCKIT8 brings the principal power and signal wiring together for a marine or powersports amplifier installation. Its tinned oxygen-free copper conductors resist corrosion and are flexible enough for challenging routing paths. DS18 markets the 8 AWG configuration for systems up to 960W RMS, subject to proper system and cable sizing.

Key Features

• 8 AWG marine-grade tinned OFC power and ground cables
• DS18 system guideline: up to 960W RMS
• Includes ATC type fuse holder and installation accessories
• Matched signal and turn-on cabling for amplifier integration
• 17 ft positive and 17 ft ground cable lengths allow dedicated battery return routing
• White power cable and black ground cable make circuit identification easier
• Designed for marine, motorcycle and powersports audio installations

General Specifications

• Power and ground cable gauge: 8 AWG
• Power cable: 17 ft white tinned OFC
• Ground cable: 17 ft black tinned OFC
• RCA interconnect: 17 ft red/black marine tinned OFC with metal plugs
• Amplifier remote turn-on lead: 17 ft blue tinned OFC
• Fuse holder configuration: water-resistant ATC type
• DS18 recommended system class: up to 960W RMS
• Conductor type: tinned 100% oxygen-free copper

Installation Notes

• Route power and ground leads securely; fuse the positive lead close to the source according to the circuit design
• Check amperage, run length and voltage drop, rather than choosing gauge solely from nominal audio wattage
• Keep RCA signal cabling away from high-current wiring when practical

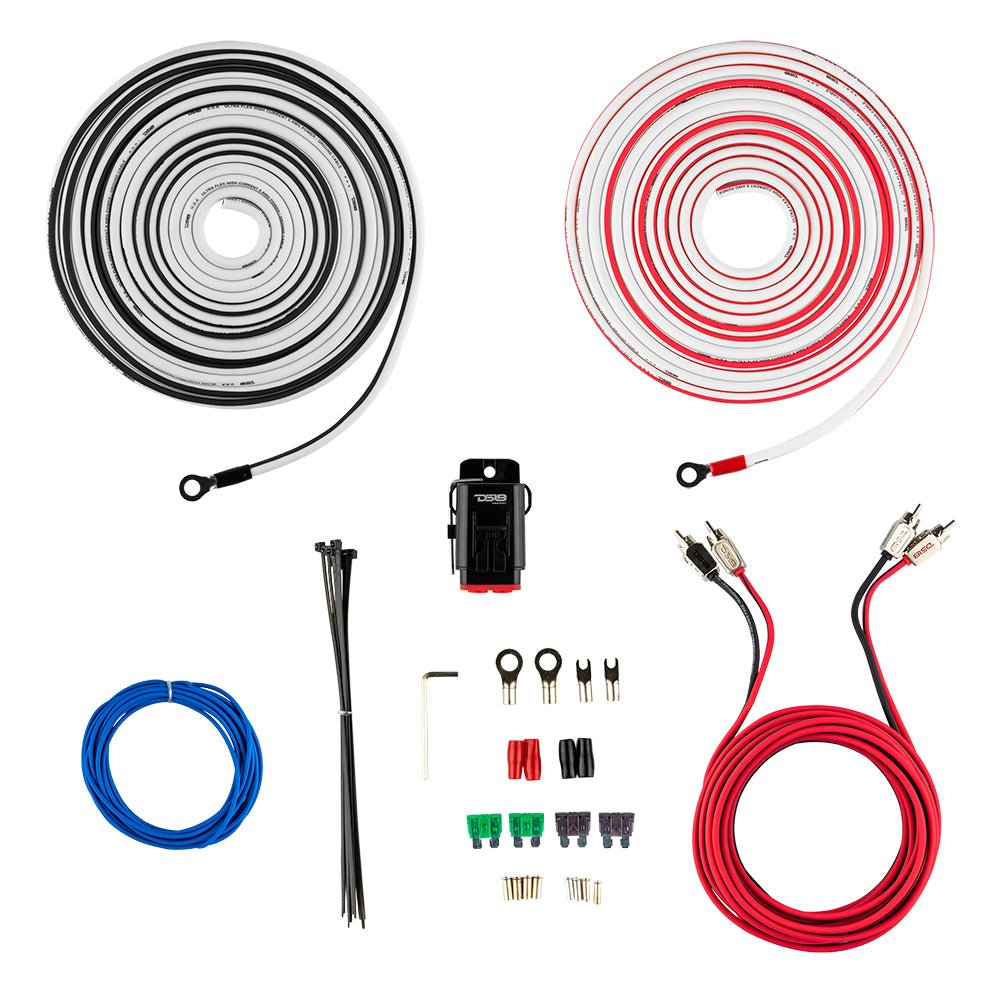

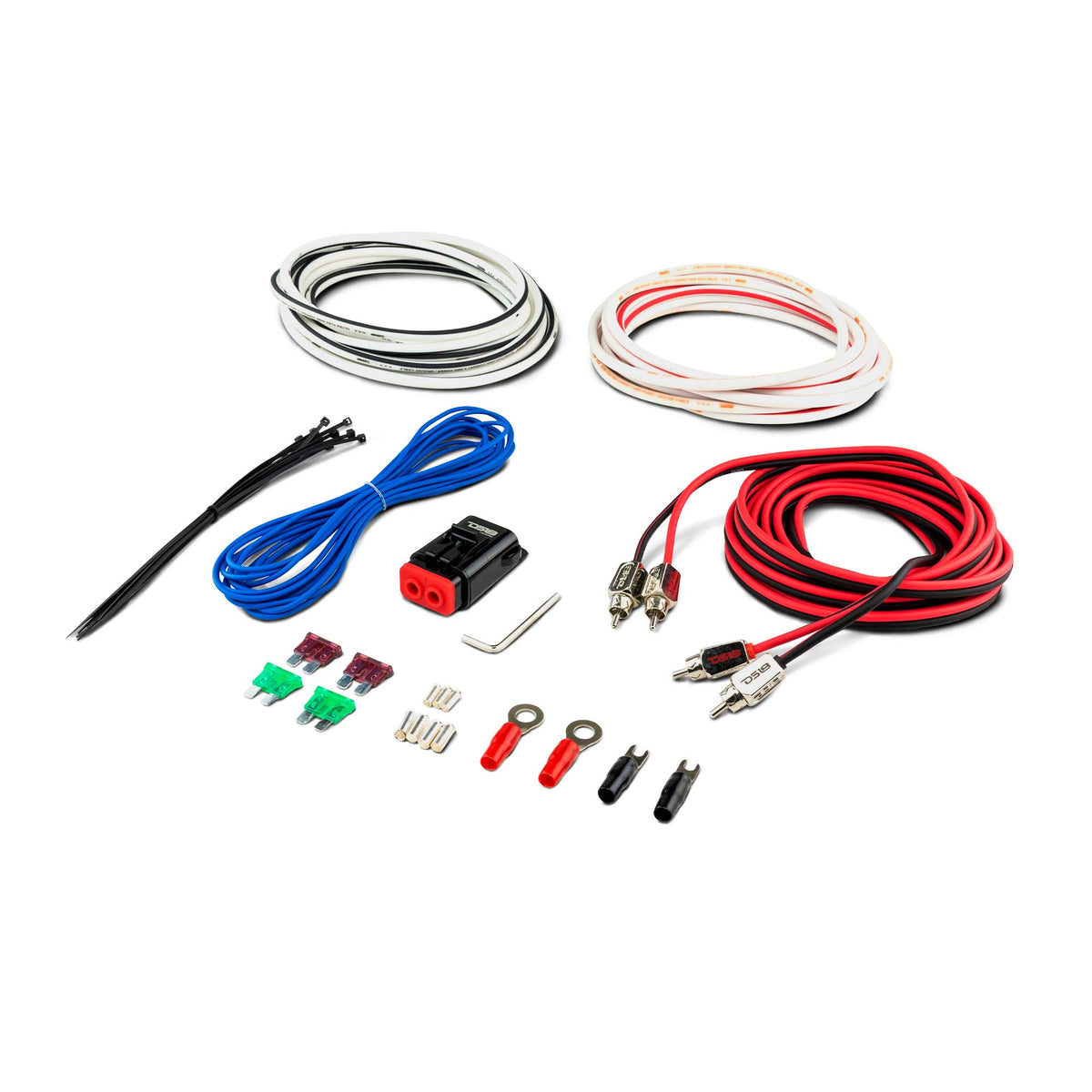

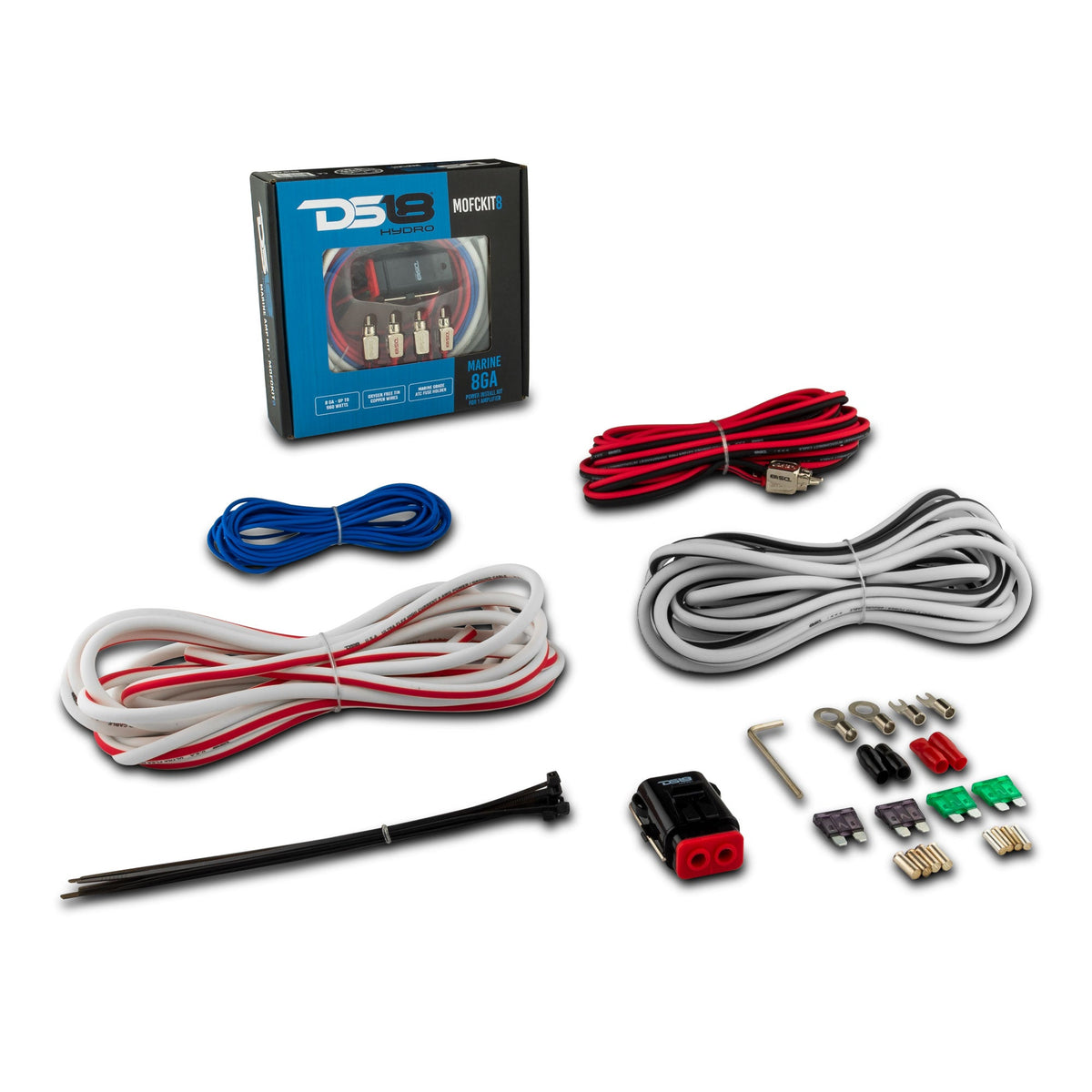

What's in the Box

• 17 ft 8 AWG white tinned OFC power cable
• 17 ft 8 AWG black tinned OFC ground cable
• 17 ft red/black marine tinned OFC RCA cable with metal plugs
• 17 ft blue remote turn-on cable

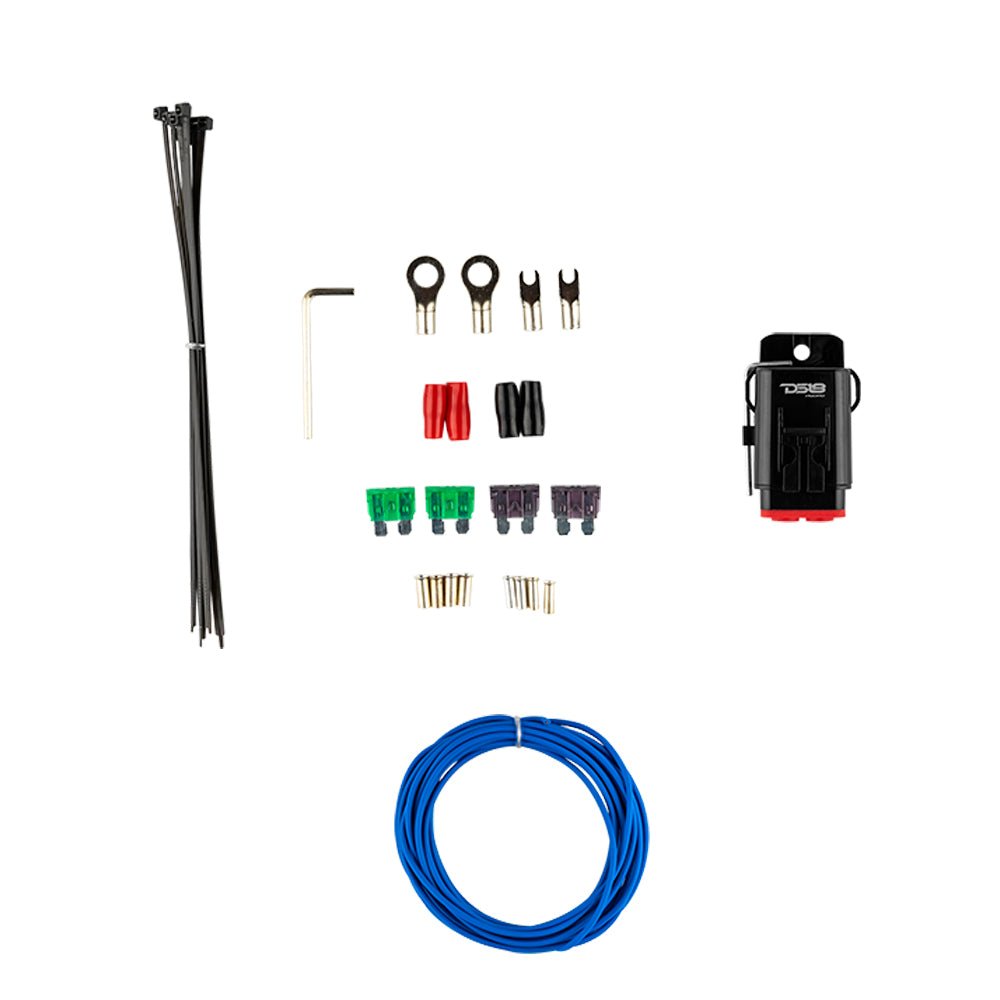

• Water-resistant fuse holder
• Installation accessories
