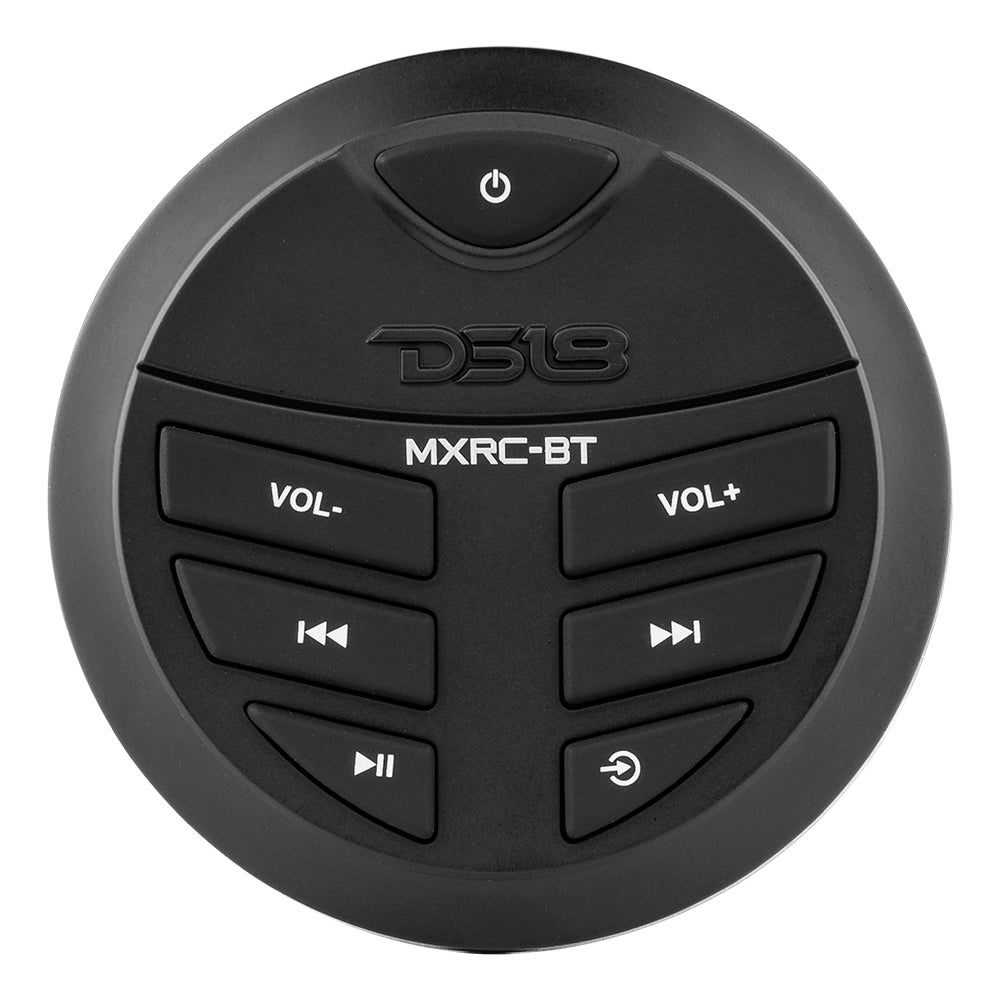

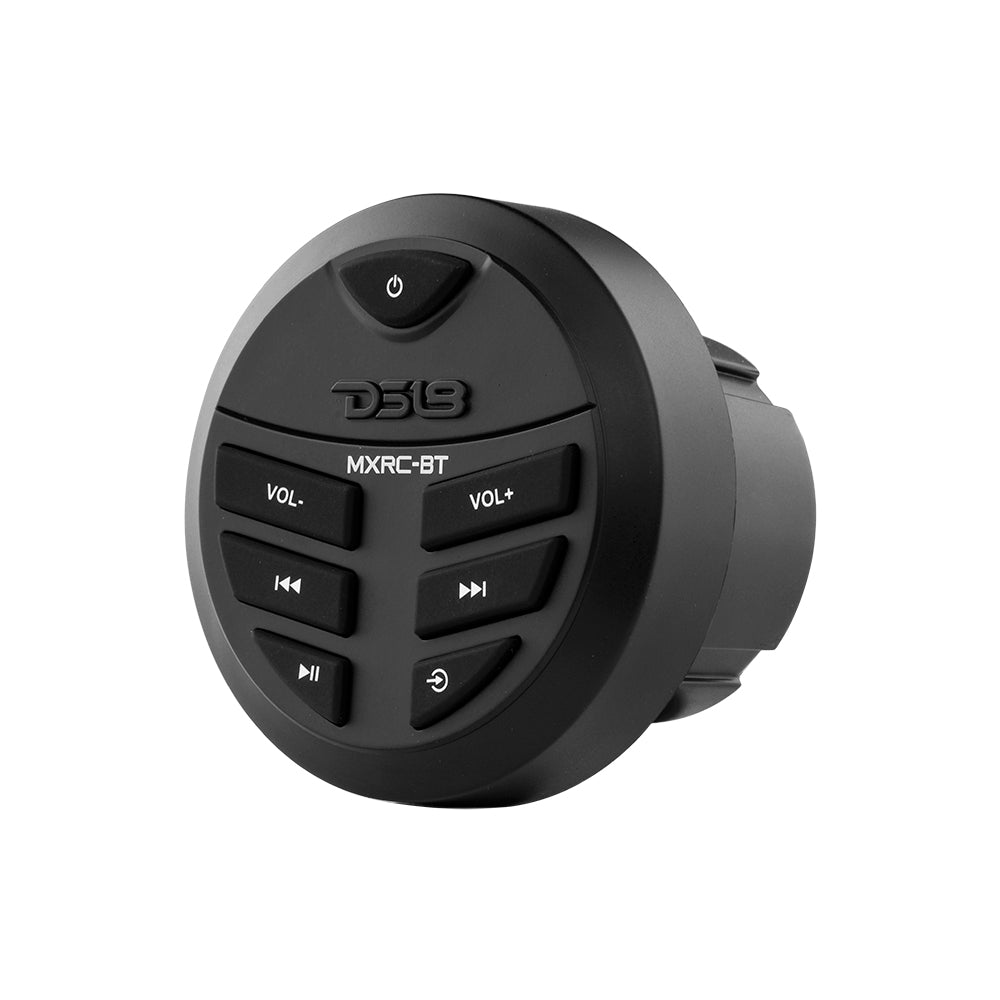

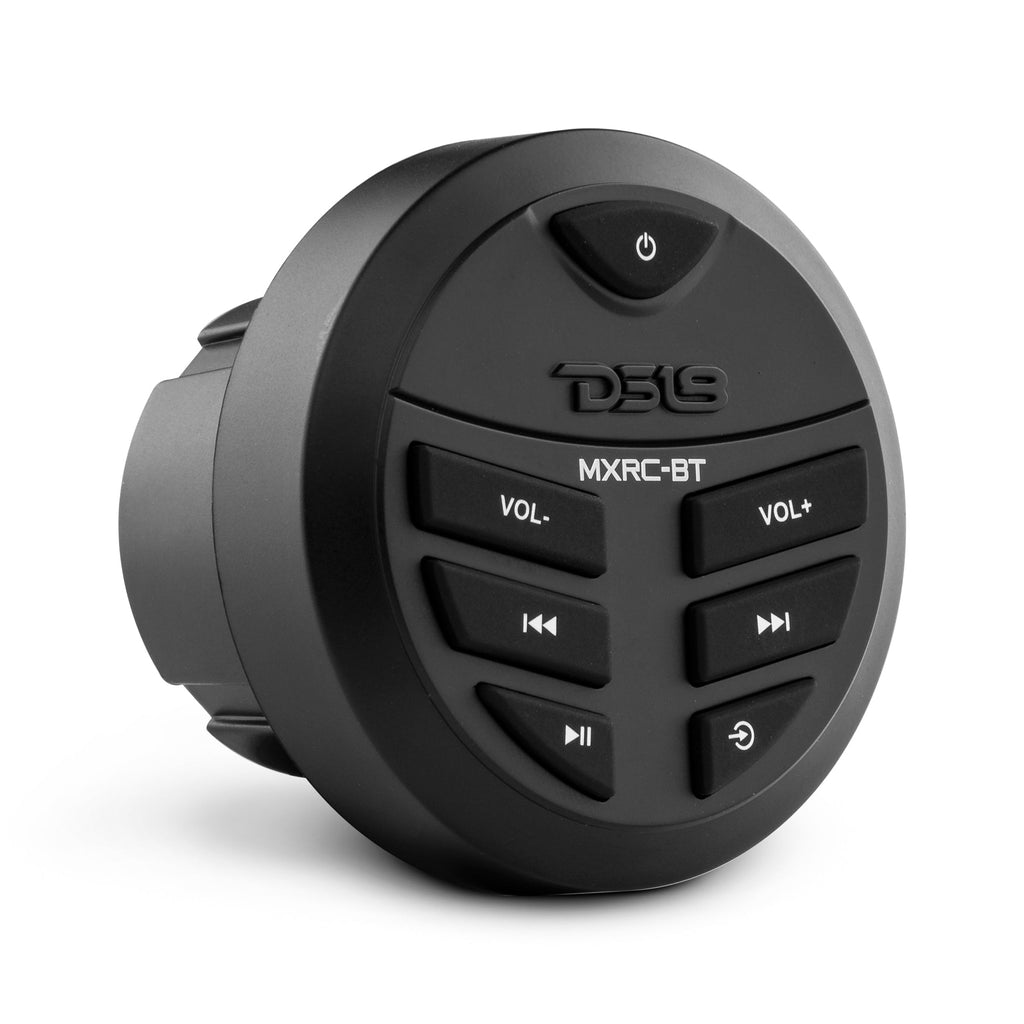

DS18 MXRC-BT HYDRO Bluetooth 5.0 Marine Digital Media Receiver with USB, AUX and RCA Output

The MXRC-BT is a compact source unit for marine and powersports audio installations where a conventional large stereo chassis is unnecessary. It combines Bluetooth streaming, USB playback, a wired auxiliary input and stereo RCA line-level outputs in a weather-resistant round control head.

Key Features and Benefits

• Bluetooth 5.0 with A2DP wireless audio streaming and an advertised wireless range of up to 35 ft under suitable conditions.
• USB music playback from drives up to 32GB plus a 3.5 mm AUX input for wired sources.
• Stereo 2.5V RCA line outputs connect to an external amplifier; this controller is not presented as a built-in speaker-power amplifier.
• Remote turn-on output can activate compatible amplifier systems.
• IP55 water resistance, UV/salt resistance, conformal-coated circuitry, blue backlit buttons and rubber controls.

Technical Specifications

• Operating voltage: 10–15V DC
• Bluetooth: Version 5.0 + A2DP
• Frequency response: 20Hz–20kHz
• Signal-to-noise ratio: =80dB
• Total harmonic distortion: =0.1%
• Channel separation: =60dB
• Stereo RCA output: 1 left/right pair, 2.5V
• Remote turn-on output: Up to 200mA
• Auxiliary input: 3.5 mm
• USB playback: Up to 32GB
• Bluetooth range: Up to 35 ft (environment-dependent)
• Water-resistance rating: IP55

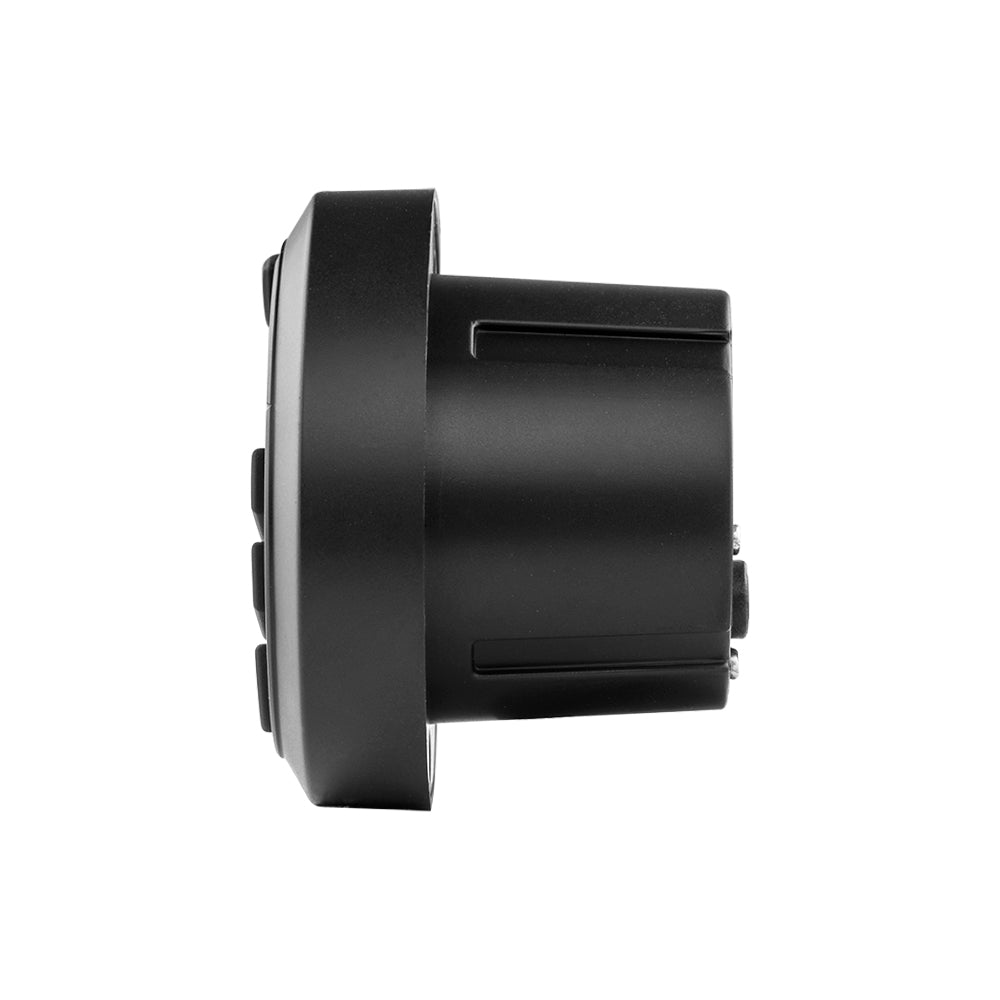

• Overall diameter: 2.43 in. (61.8 mm)
• Overall depth: 1.83 in. (46.5 mm)
• Mounting-hole diameter: 1.77 in. (45 mm)
• Mounting depth: 1.18 in. (30 mm)
• Unit weight: 0.46 lb

Compatibility

• Universal audio source for 12V nominal marine and powersports amplifier systems with stereo RCA inputs; not a replacement for the MXRC wired MRX remote.

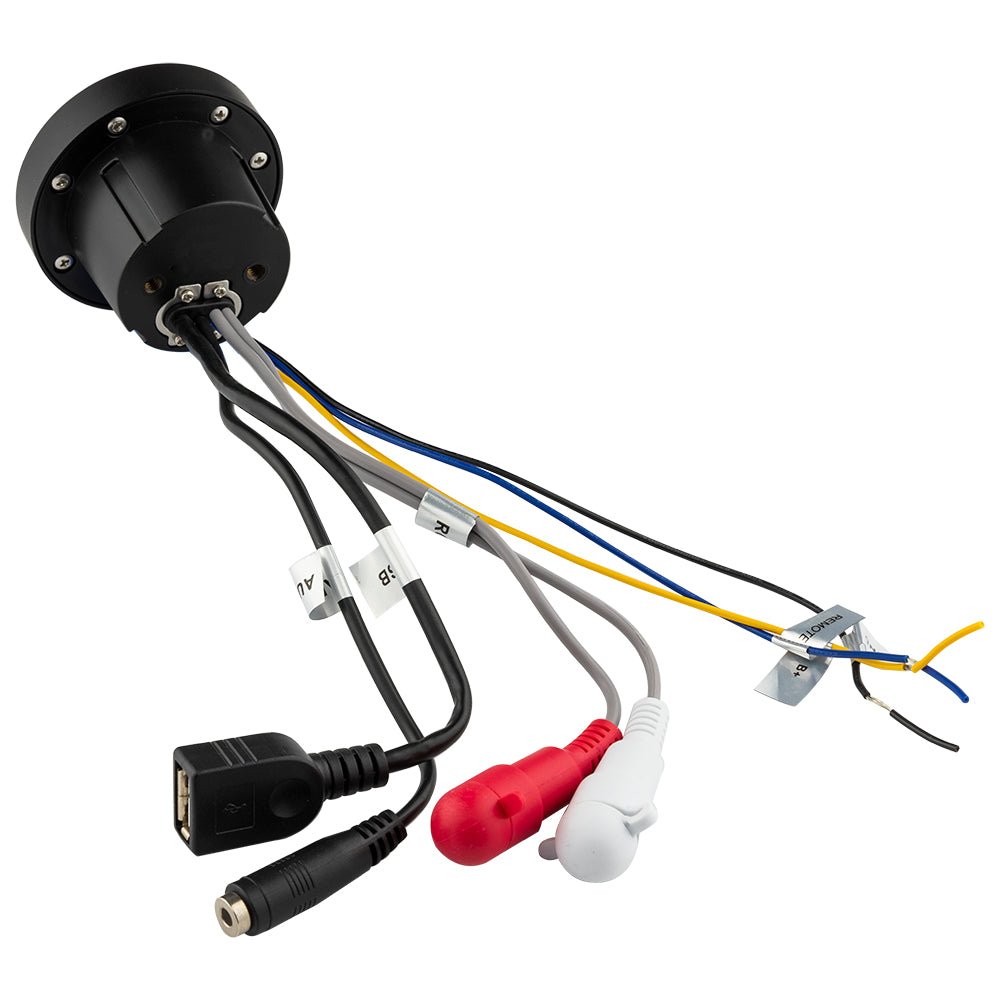

Installation and System Integration

• Requires a fused 12V nominal supply within its 10–15V operating range.
• Use the left and right RCA outputs with a suitable external amplifier; connect the amplifier remote lead to the designated turn-on output.
• Separate wiring is required for auxiliary input and lighting/control power as applicable.
