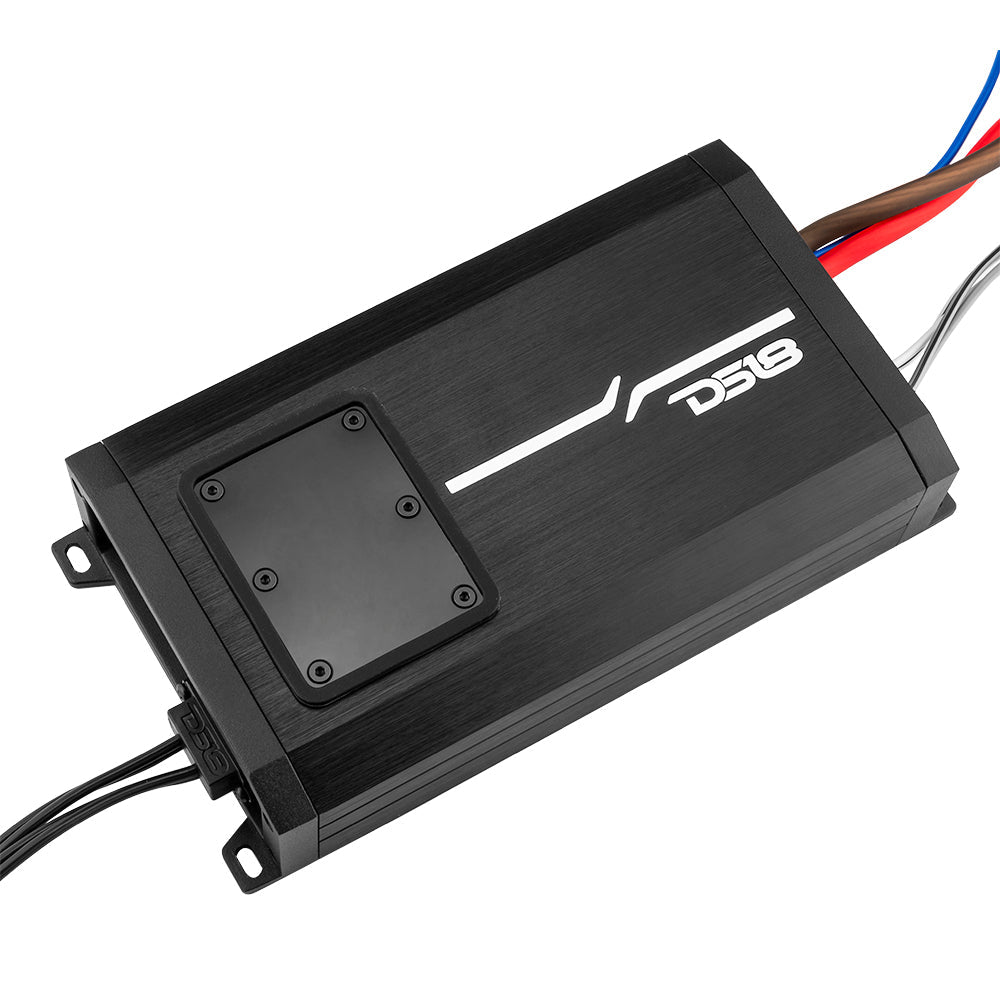

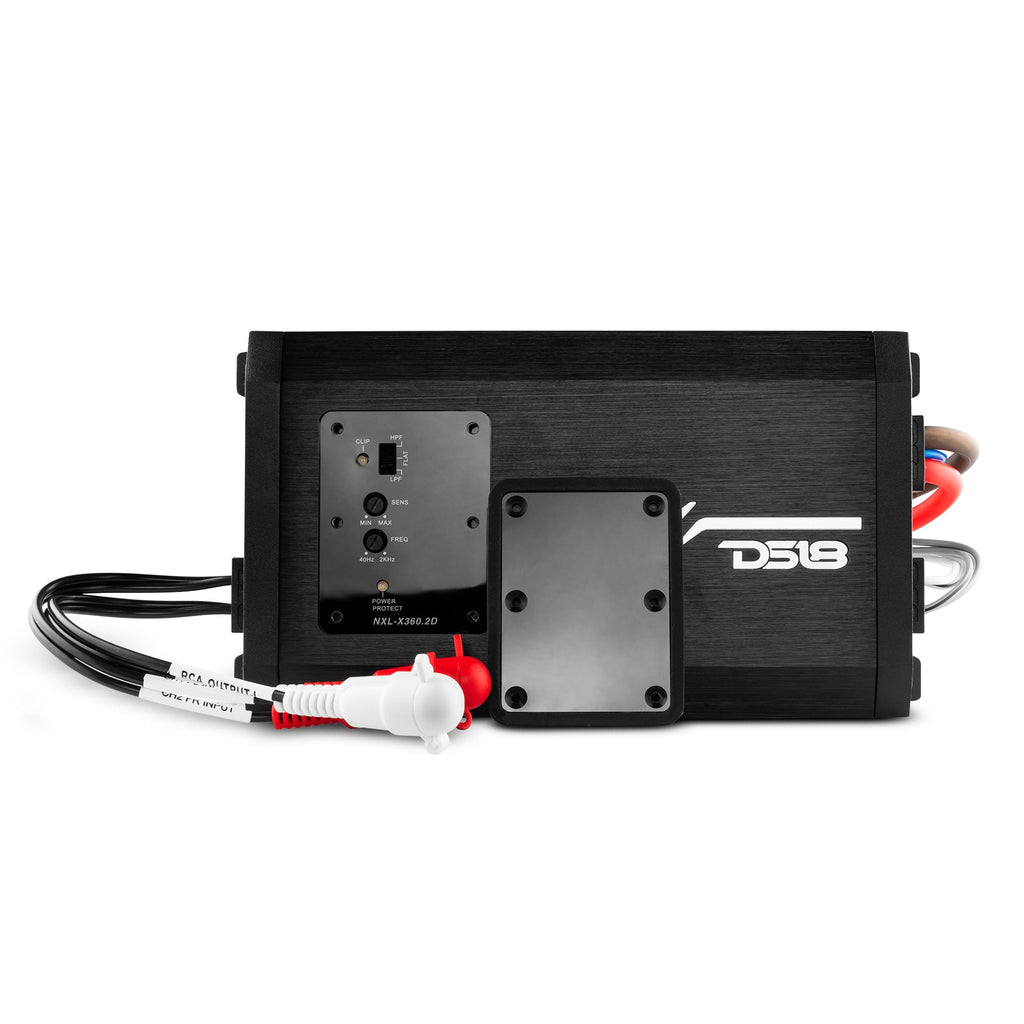

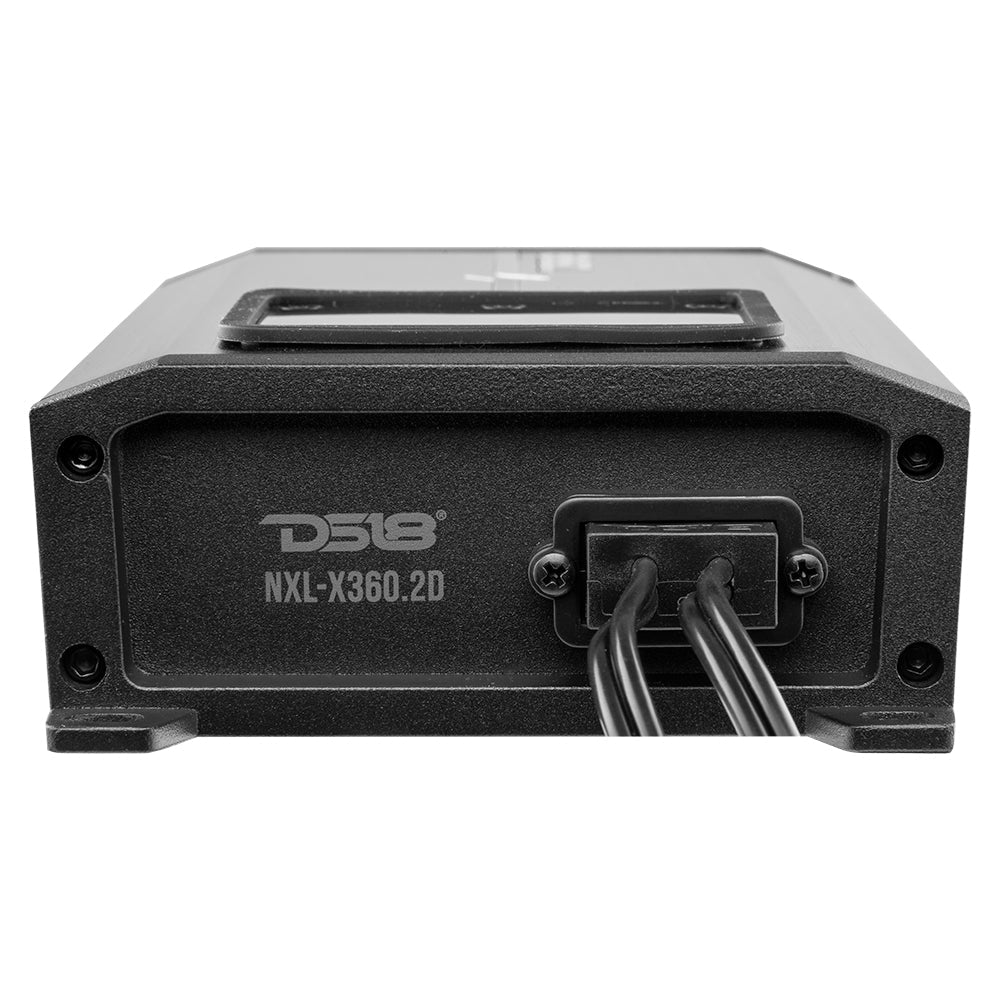

DS18 NXL-X360.2D HYDRO 2-Channel Full-Range Class D Marine & Powersports Amplifier, 2 x 180W RMS at 4 ohms, IP67

The DS18 NXL-X360.2D HYDRO amplifier is designed to drive marine and powersports speakers with efficient Class D amplification. Its IP67-rated enclosure and variable audio adjustments make it suitable for boat, UTV, and off-road installations while preserving the distinct power specifications at each load impedance.

Key Features

• High-efficiency Class D output stage supports installation in constrained marine/powersports compartments.
• 2 x 180W RMS at 4 ohms; individual load-specific ratings are listed below.
• Adjustable filtering supports speaker protection and system tuning.
• IP67 water-resistance classification; corrosion-conscious electrical installation remains essential.
• Integrated power, protect and clipping status indication and protective circuitry.
• Stereo operation and supported bridged configuration provide flexible choices for full-range speaker systems.

Technical Specifications

• Amplifier topology: Class D
• Channel arrangement: 2-Channel Full-Range
• Ingress protection: IP67
• RMS output at 4 ohms: 2 x 180W
• RMS output at 2 ohms: 2 x 250W
• Bridged output at 4 ohms: 1 x 500W
• Peak power rating: 1000W
• Frequency response: 10Hz–20kHz
• Signal-to-noise ratio: >82dB
• THD: <0.03%
• Channel separation: 60dB
• Input sensitivity: 200mV–5V

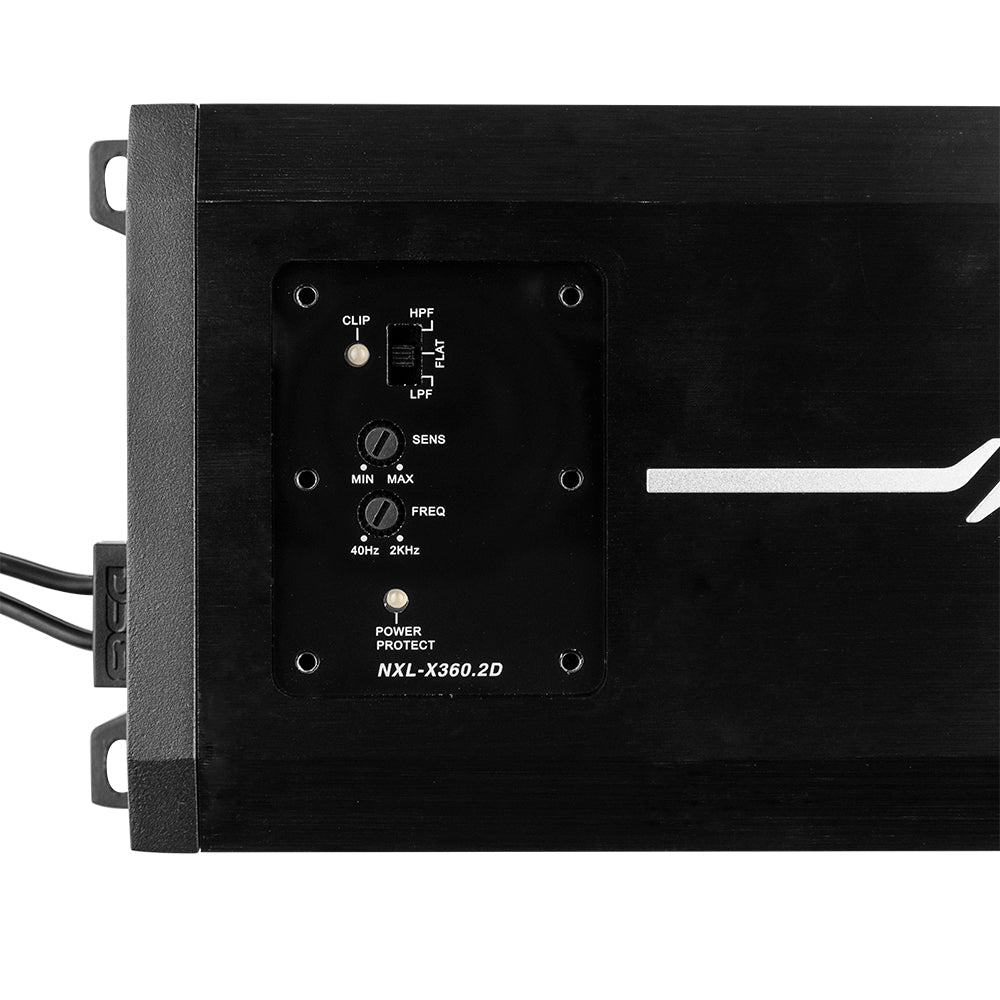

• Crossover: HPF/FULL/LPF; 40Hz–2kHz
• Minimum impedance: 2 ohms stereo / 4 ohms bridged

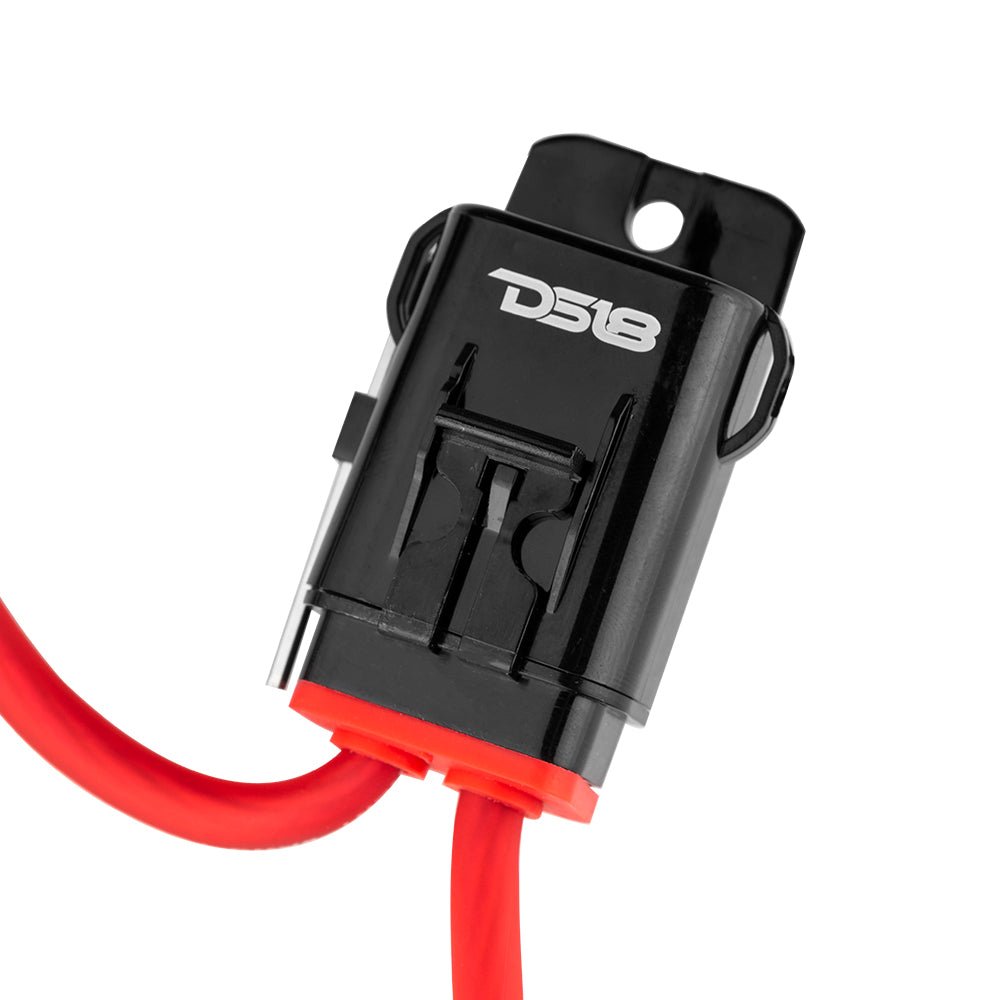

• Fuse specification: 2 x 20A (40A total)

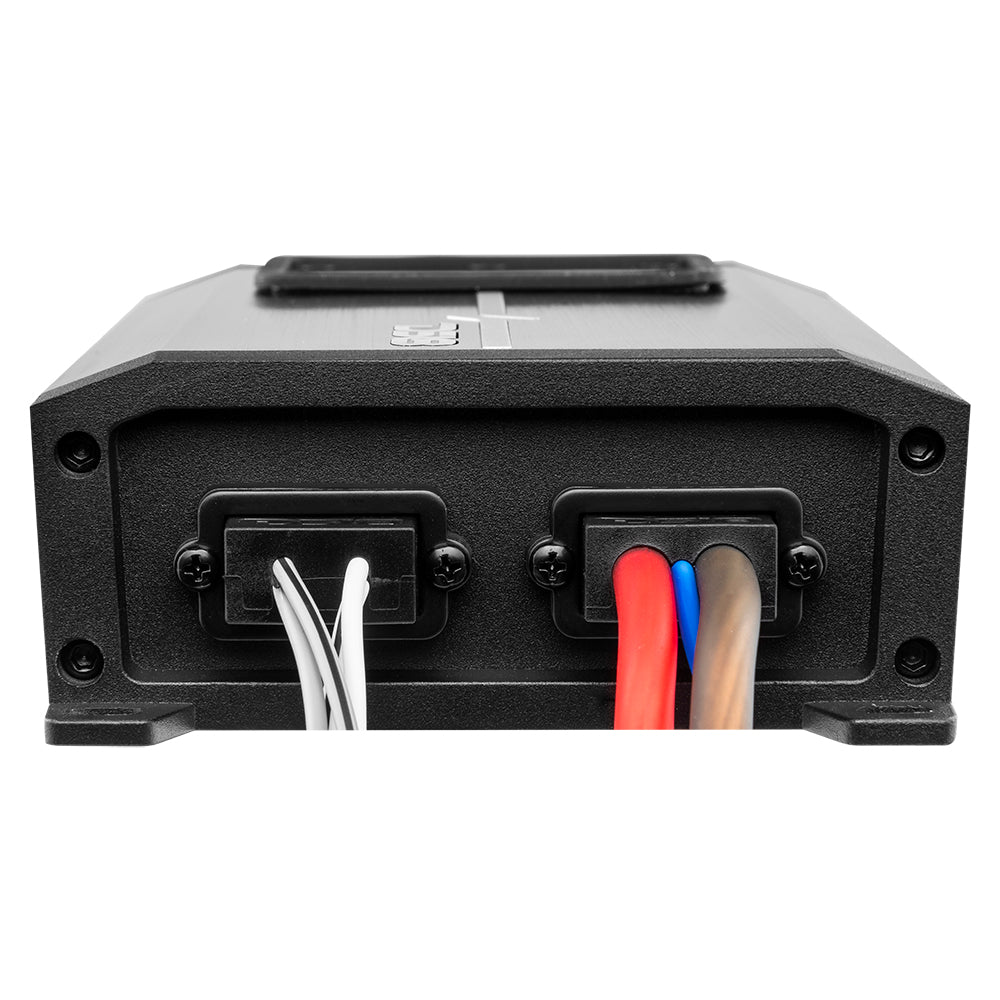

• Power input: 8 AWG tinned OFC
• Operating voltage protection: 7–16V

Installation & System Integration

Provide a dedicated fused battery feed sized to the amplifier power demand, a short solid ground, sufficient mounting clearance and serviceable signal wiring. Connect each channel only to a supported speaker impedance. Bridged ratings require the specified 4-ohm load. Tune gain and active filters with the system playing cleanly rather than using gain as a volume control. Keep wiring, terminals and mounting points protected from saltwater and prolonged water immersion.

Compatibility

Use with 12V marine/powersports audio systems and speakers wired to meet the manufacturer-listed minimum impedances. Monoblock models drive subwoofer loads; multi-channel full-range/subwoofer models provide independent speaker and bass outputs.
