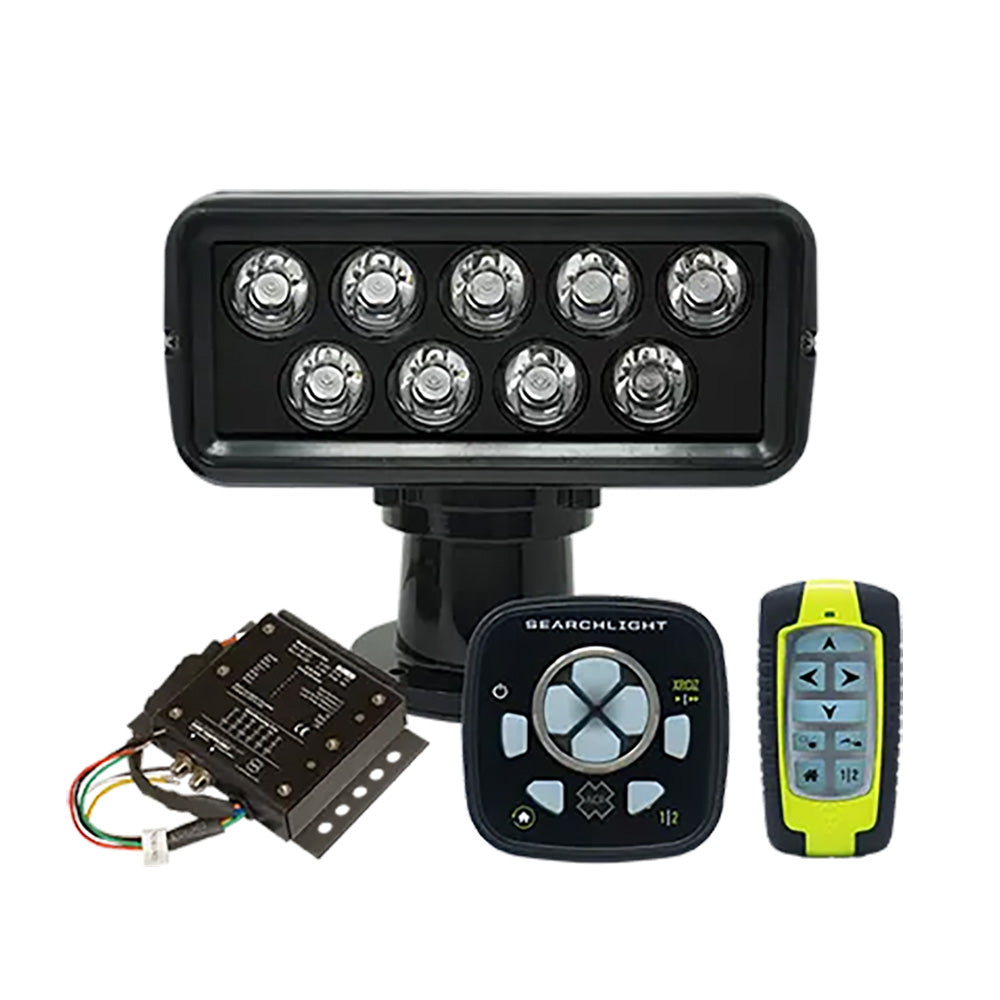

ACR RCL-100 LED 220,000 Candela Marine Searchlight, Black, 12V/24V, with URP-103 Wired Point Pad, URC-104 Master Controller & URH-103 Wireless Handheld Remote (1977)

The ACR RCL-100 LED black marine searchlight delivers a concentrated 220,000-candela LED beam for checking channel markers, shorelines and hazards from the helm. This 12V/24V package pairs a corrosion-resistant, motorized searchlight with the updated URP-103 wired Point Pad and URC-104 master controller plus a URH-103 wireless handheld remote for additional control away from the helm.

Key Features & Benefits

• High-Intensity LED Beam: 9 high-intensity LEDs deliver the published 220,000-candela peak beam intensity for targeted nighttime illumination.
• Motorized Beam Aiming: Remote-controlled horizontal sweep and vertical adjustment help direct light without leaving the operating position.
• Updated Wired Controls: The URP-103 Point Pad and URC-104 master controller form the supplied wired control system.
• Wireless Handheld Control: The included URH-103 wireless remote allows operation from other locations on board.
• Marine-Ready Housing: Painted aluminum construction protects the light assembly in demanding marine environments.
• 12V/24V Compatibility: Designed for operation on nominal 12V and 24V DC electrical systems.

Technical Specifications

• Light source: 9-LED array
• Peak beam intensity: 220,000 candela
• Input voltage: 12V/24V DC
• Housing color: Black
• Housing construction: painted aluminum
• Mount: fixed, permanently installed
• Included controls: URP-103 Wired Point Pad, URC-104 Master Controller & URH-103 Wireless Handheld Remote
• Horizontal movement: motorized remote-control rotation
• Beam angle: approximately 7° horizontal and 5° vertical
• Rotation: 360° continuous
• Vertical tilt: 9° up and 17° down
• Rotation speed: approximately 31°/sec fast or 20°/sec slow
• LED estimated life: 40,000 hours
• Control interconnect cable: 15 ft (4.57 m)
• Wireless handheld remote included: Yes, URH-103

Compatibility

For RCL-100 LED 12V/24V searchlight systems using the supplied URP-103 and URC-104 control generation. The URH-103 wireless remote is included in this SKU. Do not assume interchangeability between older URP-102/URC-103 control hardware and the new components without following ACR retrofit instructions.

Installation & Setup

Secure the searchlight on a stable mounting surface with adequate rotation clearance. Install the URC-104 master controller and URP-103 Point Pad, connect power and control wiring according to the ACR installation instructions, and test full travel. Set up the URH-103 handheld remote per ACR instructions.

Warranty

1-Year Limited Warranty

What's in the Box

• ACR RCL-100 LED Searchlight, Black
• URP-103 wired Point Pad
• URC-104 master controller
• URH-103 wireless handheld remote
