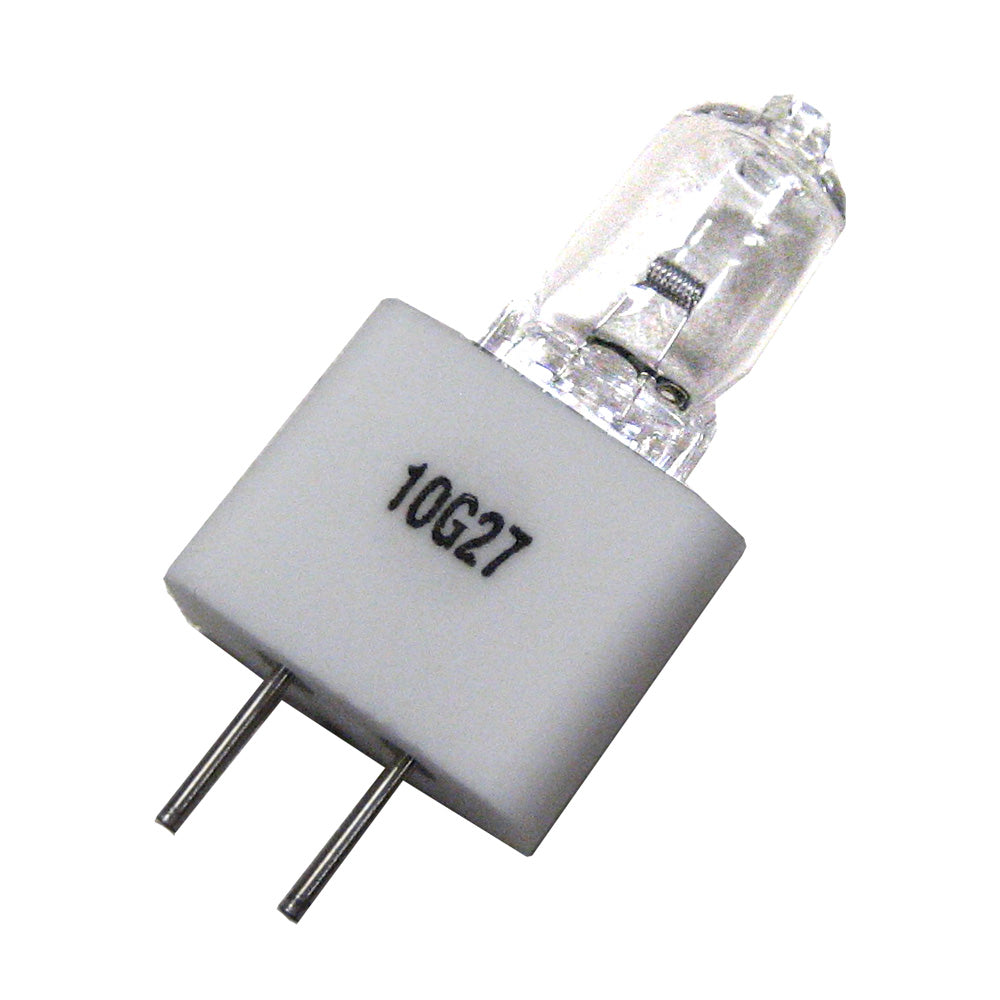

ACR 55W 24V Replacement Halogen Bulb for RCL-100/RCL-100D Searchlights (6003)

The ACR 6003 is a model-specific replacement quartz-halogen lamp for the 24V version of the legacy RCL-100D searchlight. It enables an owner or technician to replace a failed lamp without replacing the complete searchlight assembly. Matching the bulb voltage to the searchlight is essential for proper operation.

Key Features & Benefits

• Exact voltage match: Specified for 24V RCL-100D searchlight configurations.
• Original replacement identification: ACR lists part 6003 in the RCL-100D bulb service procedure.
• Restore lamp operation: Replaces a failed quartz-halogen light source in the compatible head.
• Serviceable design: Uses the manufacturer-documented access to the lamp compartment.

Technical Specifications

• Lamp technology: Quartz-halogen
• Rated lamp power: 55W
• Voltage: 24V
• Quantity: One replacement bulb
• Application: Legacy ACR RCL-100D searchlight

Compatibility

For ACR RCL-100D searchlights designed for 24V lamp operation. Not a general replacement for current RCL-100 LED or RCL-50 LED searchlights; do not substitute for a different voltage lamp.

Installation & Use

Disconnect power and allow the lamp to cool. Open the searchlight front per the RCL-100D manual, remove the old bulb, and insert the new bulb using a clean cloth without touching the quartz glass or reflectors. Reassemble the gasket and housing before powering up.
